Crawler Rotary Pile Driver

  • Factory direct
  • One-year warranty
Drilling Depth: 15m
Drilling Diameter: 1500mm
Rated Power: 88-130Kw
Product Detail

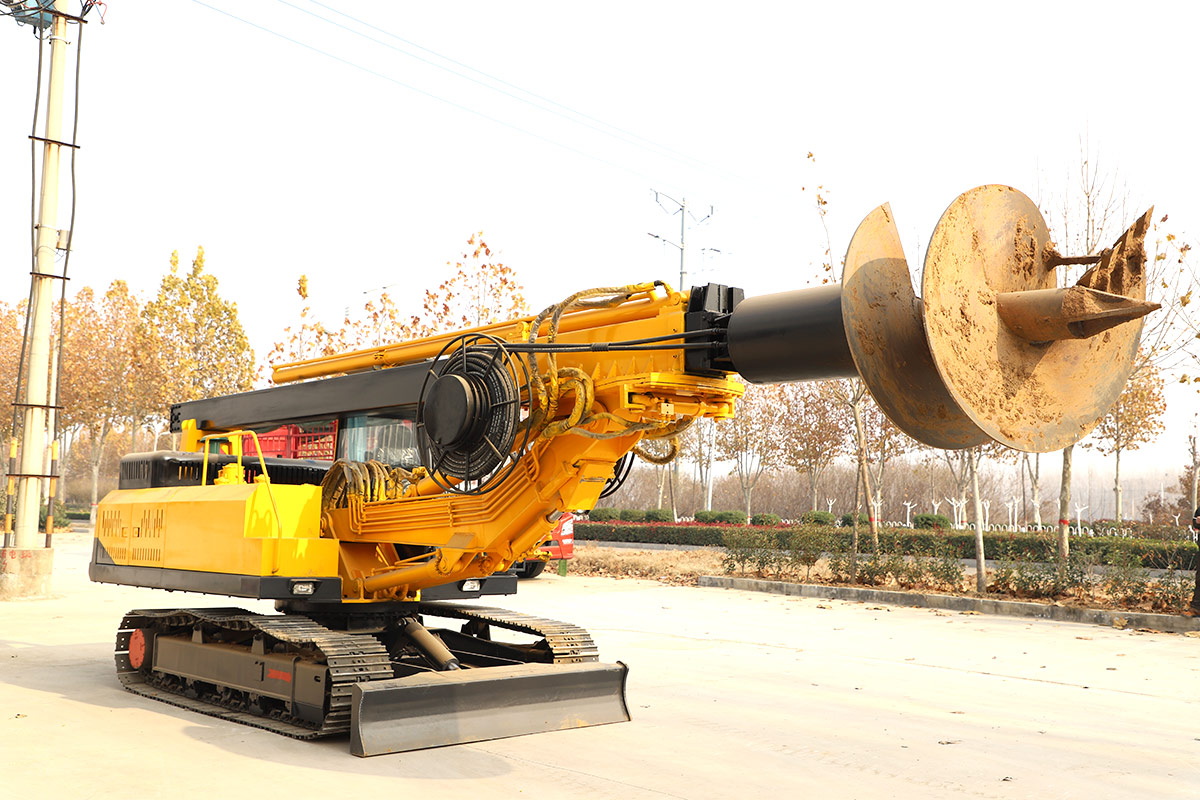

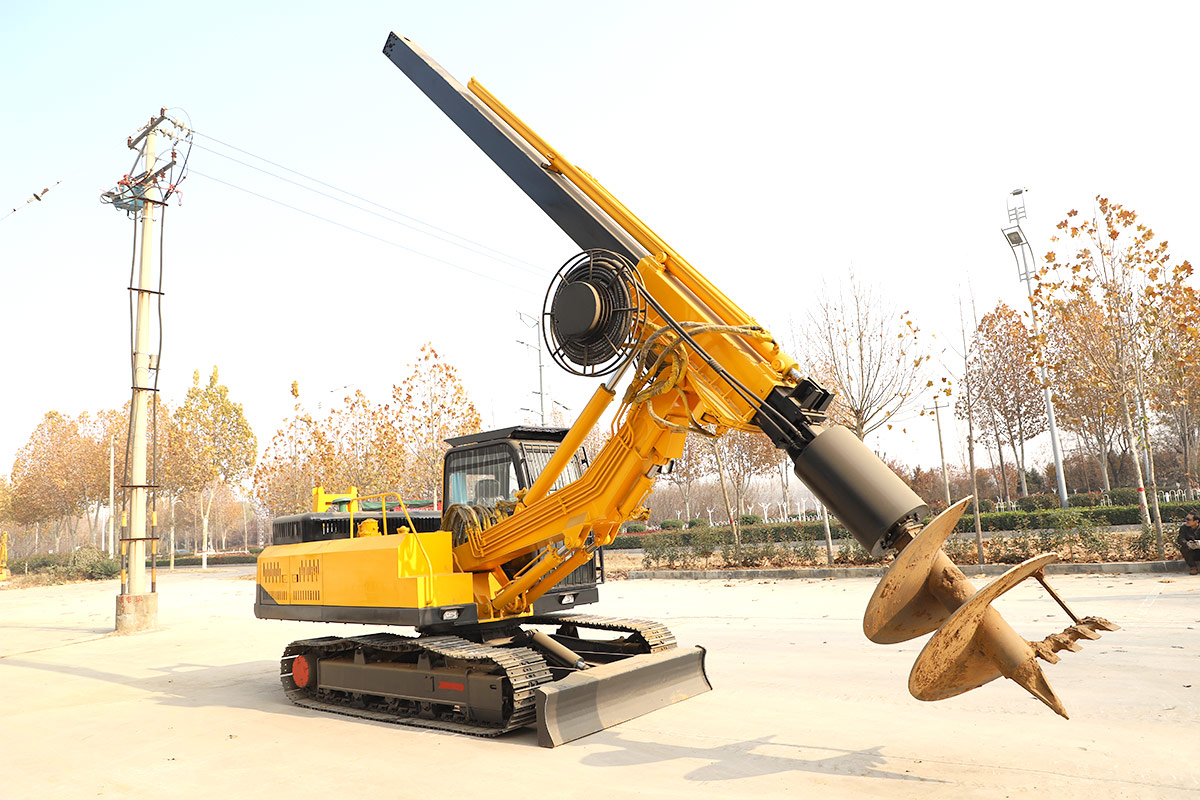

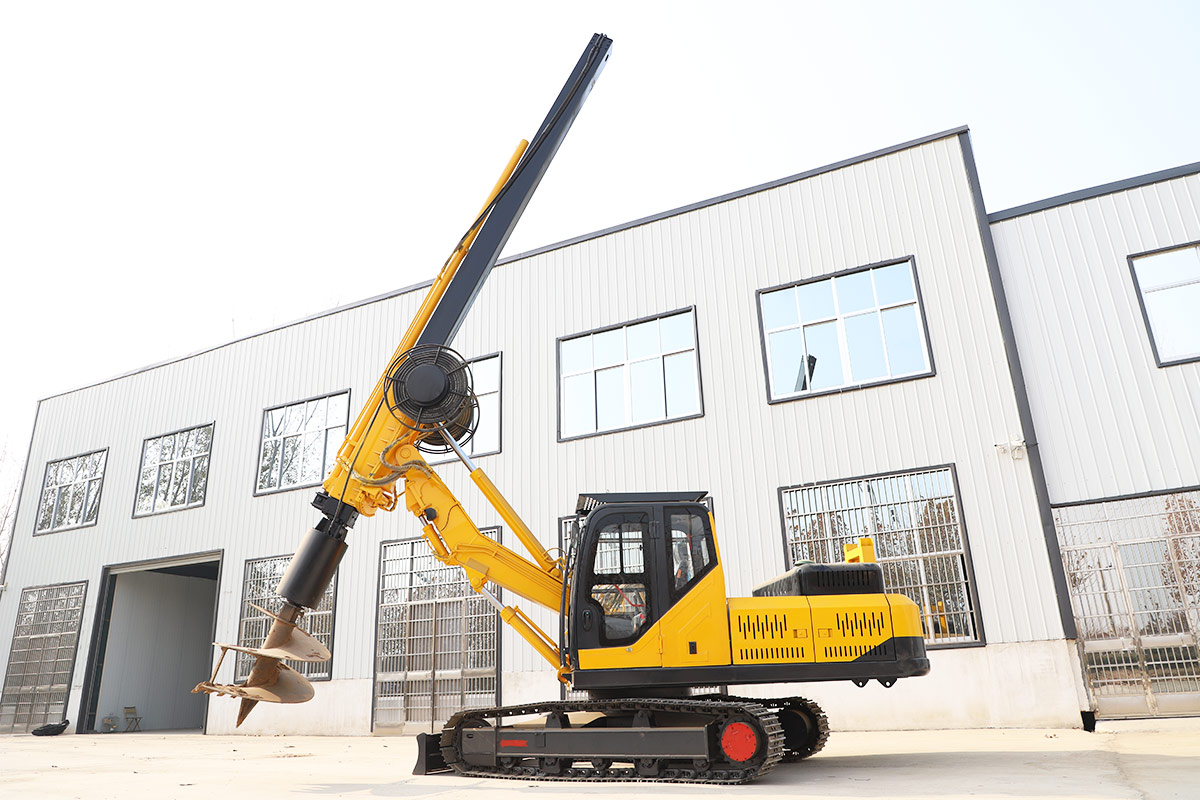

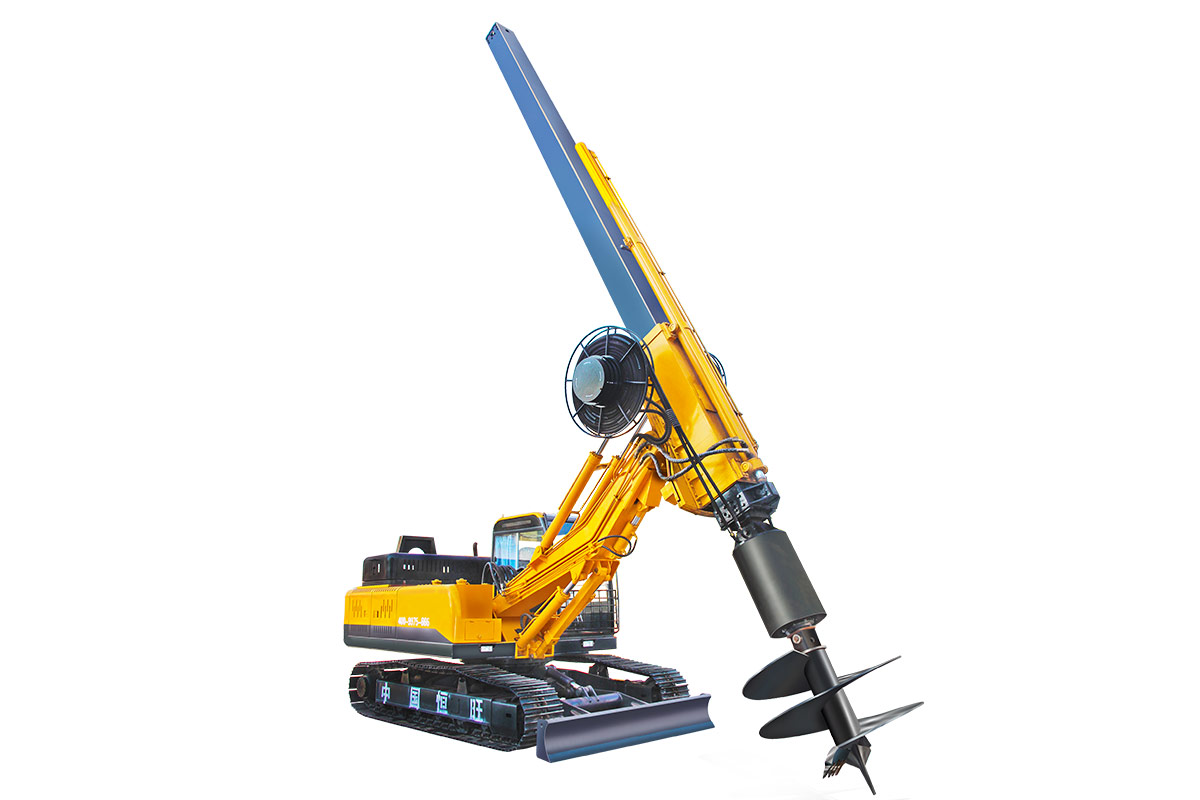

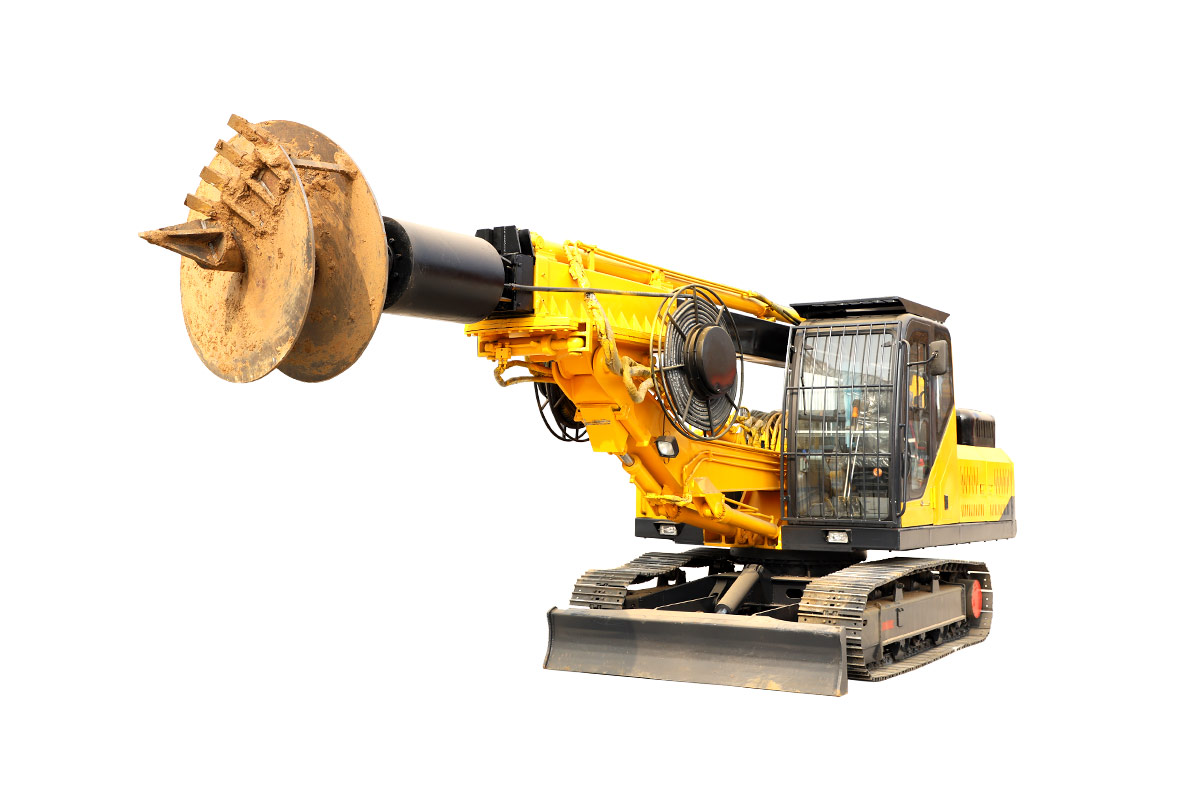

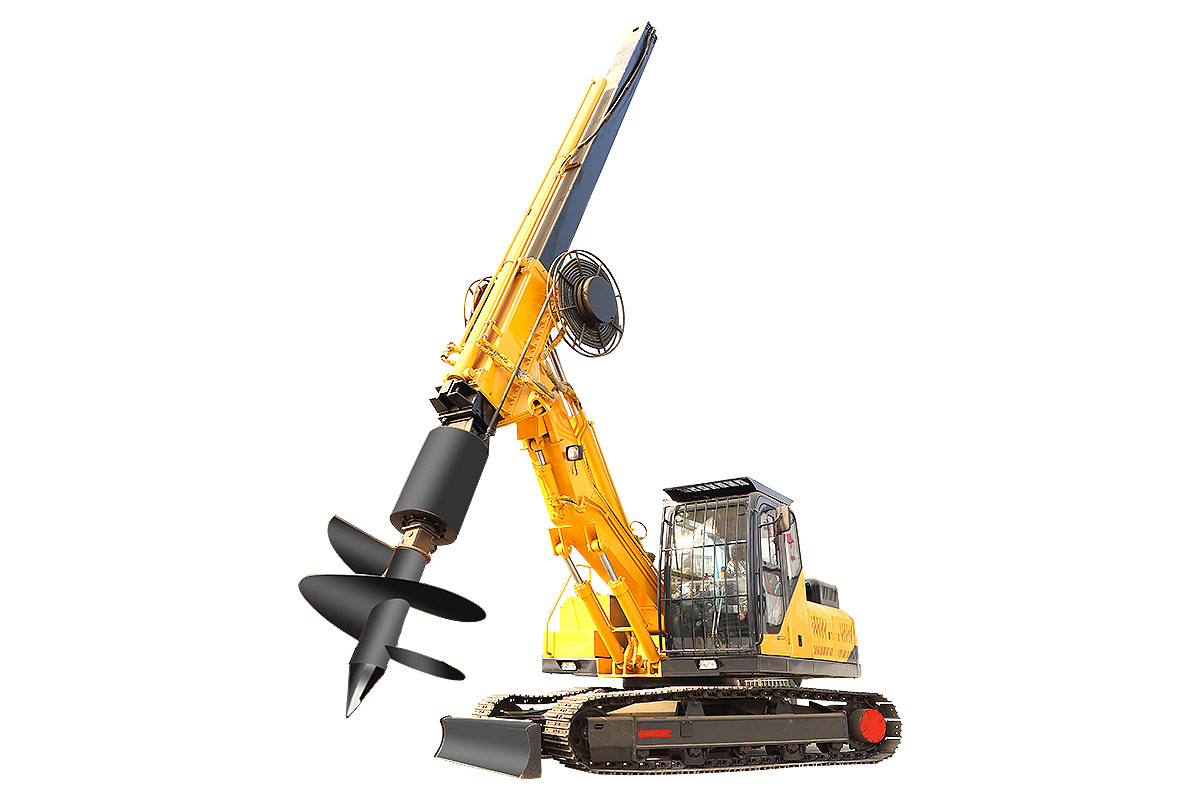

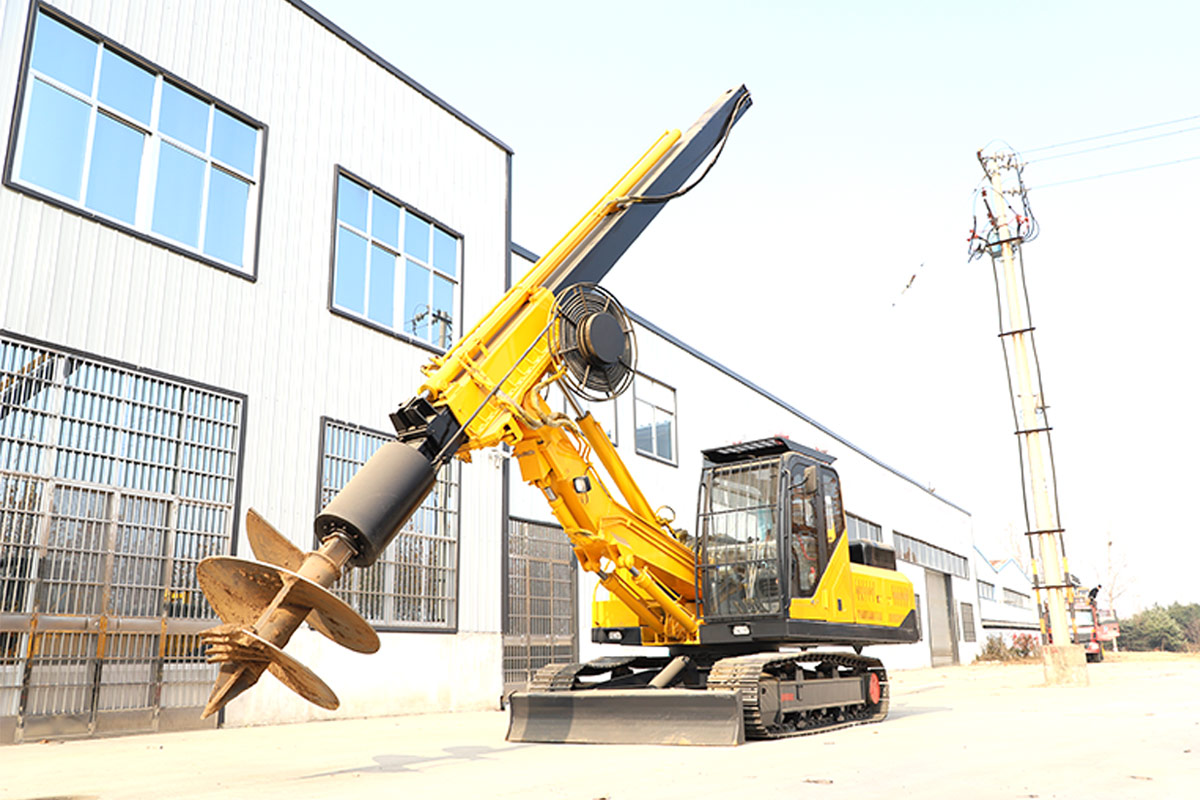

Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.

Main feature:

1. Flexible and flexible: the elf for pile hole construction in narrow environments.

2. Economical and efficient: for small-diameter shallow piles, the power head has high rotation speed, fast lifting speed, high fuel efficiency, and comprehensive energy saving and fuel saving of 10%-15%.

3. Convenient transportation: The whole machine is not super high or overweight when transported with a pole, which is convenient and saves money when transferring.


Dimensions (mm)11000*2400*3100
Vehivie mass (kg) 17000
Drilling depth (m)22
Drilling diameter (mm)600-2000
Rotation angle (°) 360
Walking speed (km/h)5-8
Displacement of the hydraulic systym (ml/r)63
Rated power of the engine (kw)120
