Drilling Depth: 35m
Drilling Diameter: 1800mm
Rated Power: 153Kw
Drilling Diameter: 1800mm
Rated Power: 153Kw

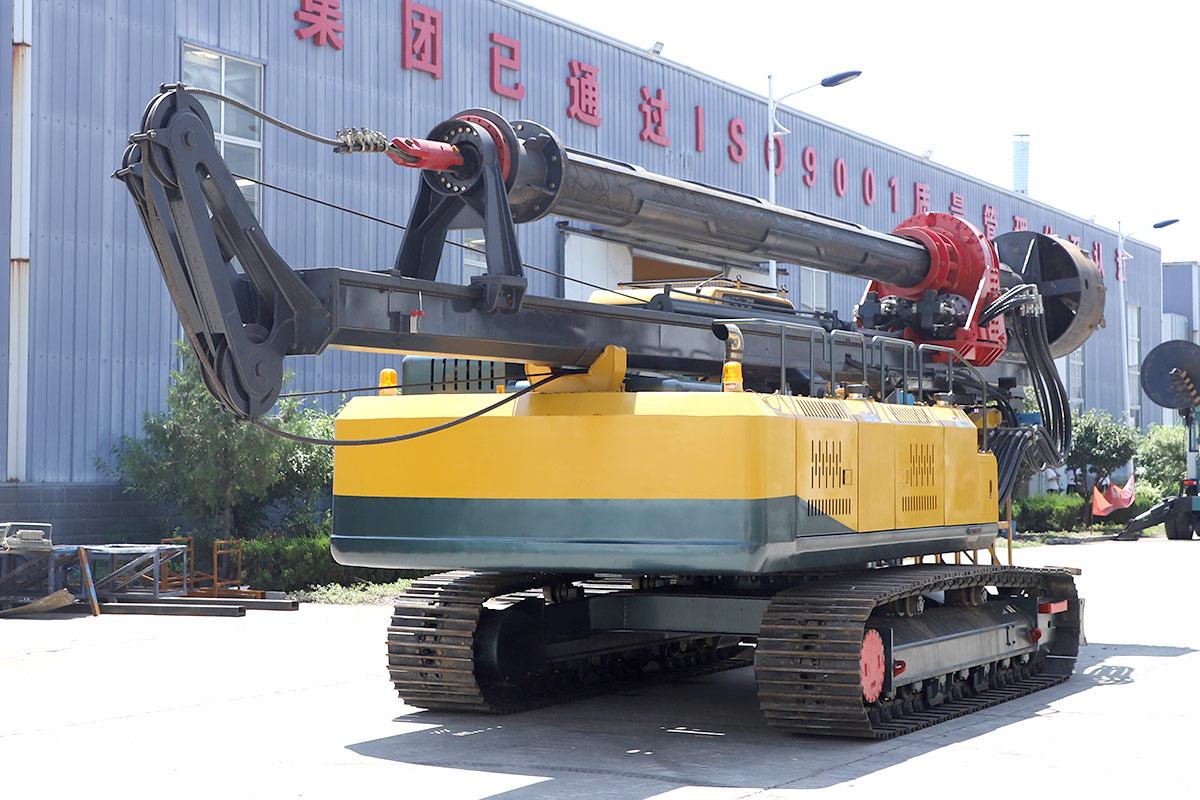

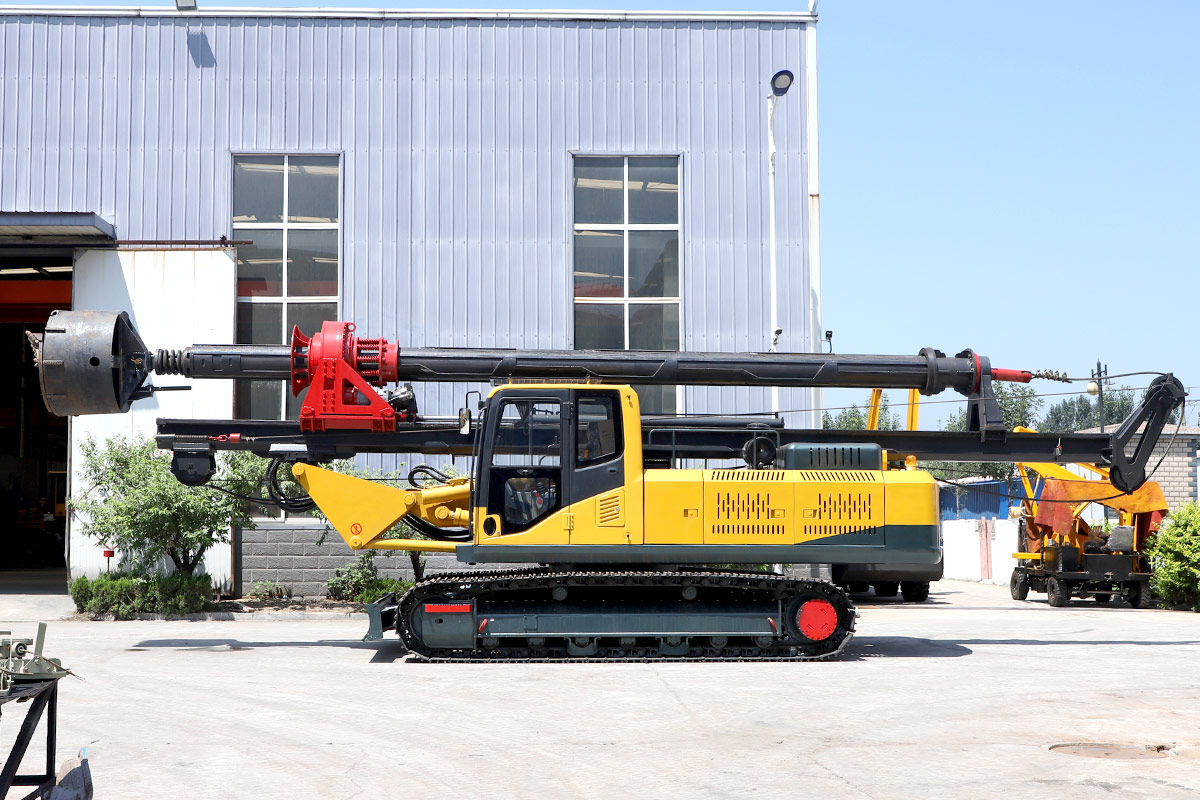

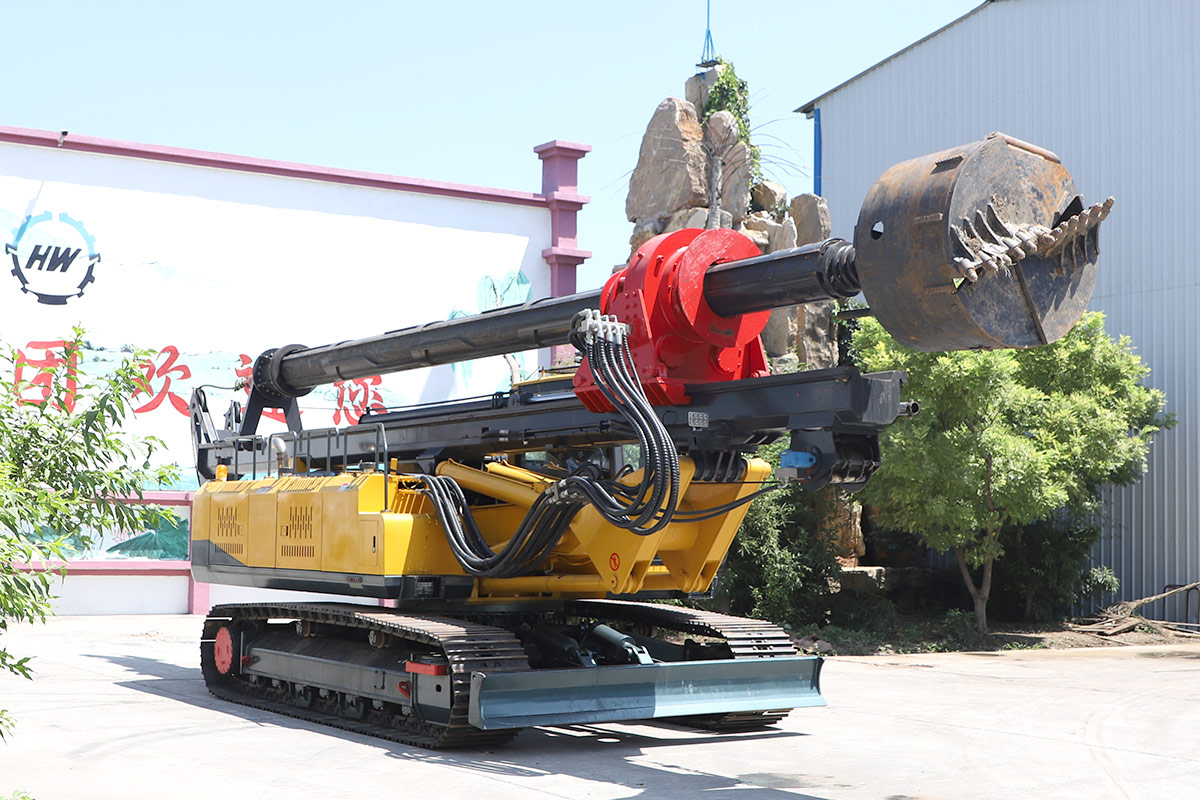

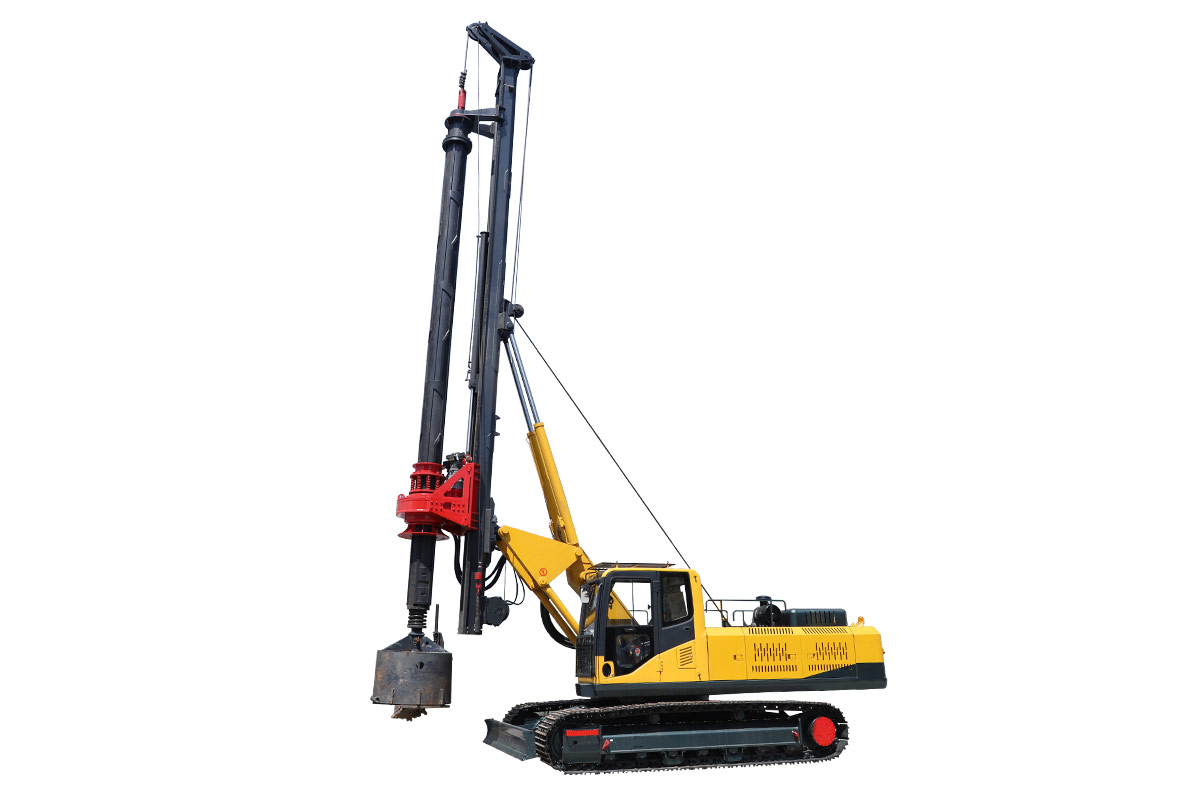

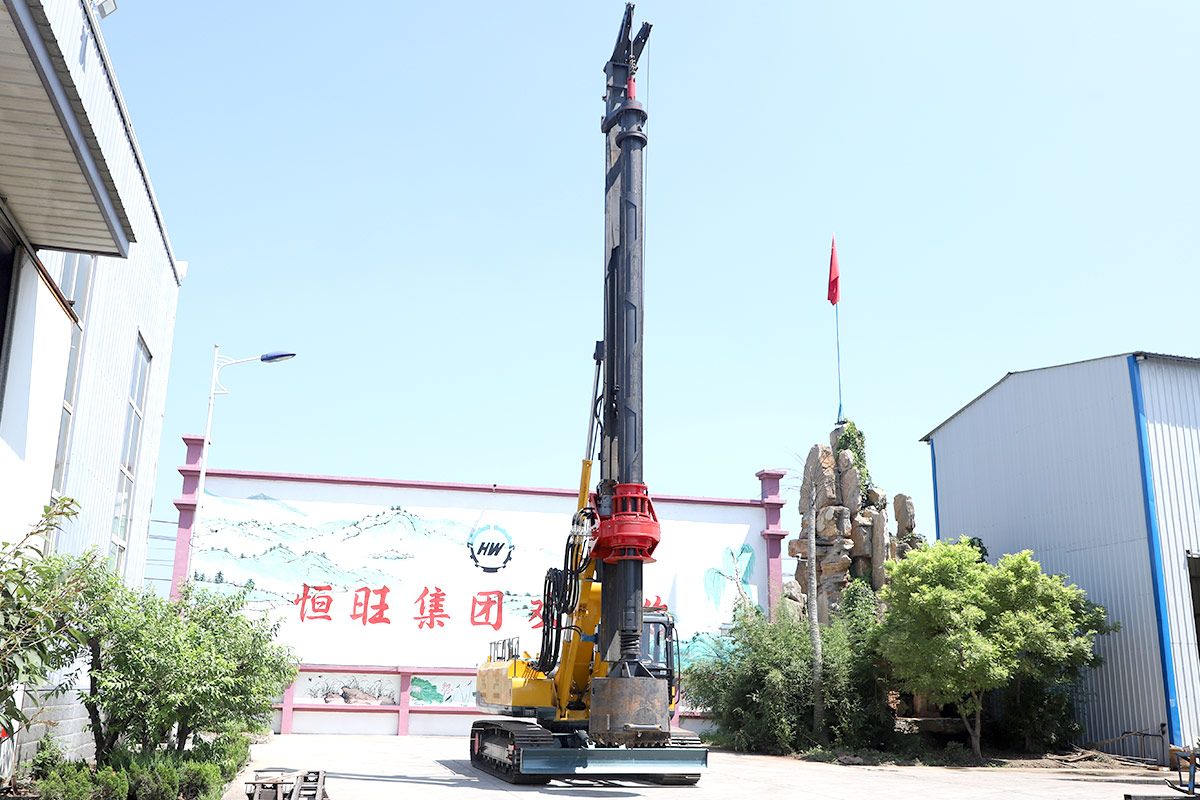

Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering. Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.
| Parameters/Model | HWYDR350 | |||
| Outsize | Working Size (length×Width×Height) | m | 8.8×2.8×12.8 | |
| Transport Size (length×Width×Height) | m | 12.8×3.0×3.65 | ||
| Machine Weight | t | 28 | ||
| Max Drilling Diameter | mm | 1500-1800 | ||
| Max Drilling Depth | m | 35 | ||
| Engine | Brand | Cummins | ||
| Model | 6BTAA5.9-C205 | |||
| Rated Power | kw/rpm | 153/2000 | ||
| Hydraulic Flow | Woring Pressure | Main Pump | Mpa | 30 |
| Secondary Pump | Mpa | / | ||
| Max Flow | Main Pump | L/min | 2×80 | |
| Secondary Pump | L/min | / | ||

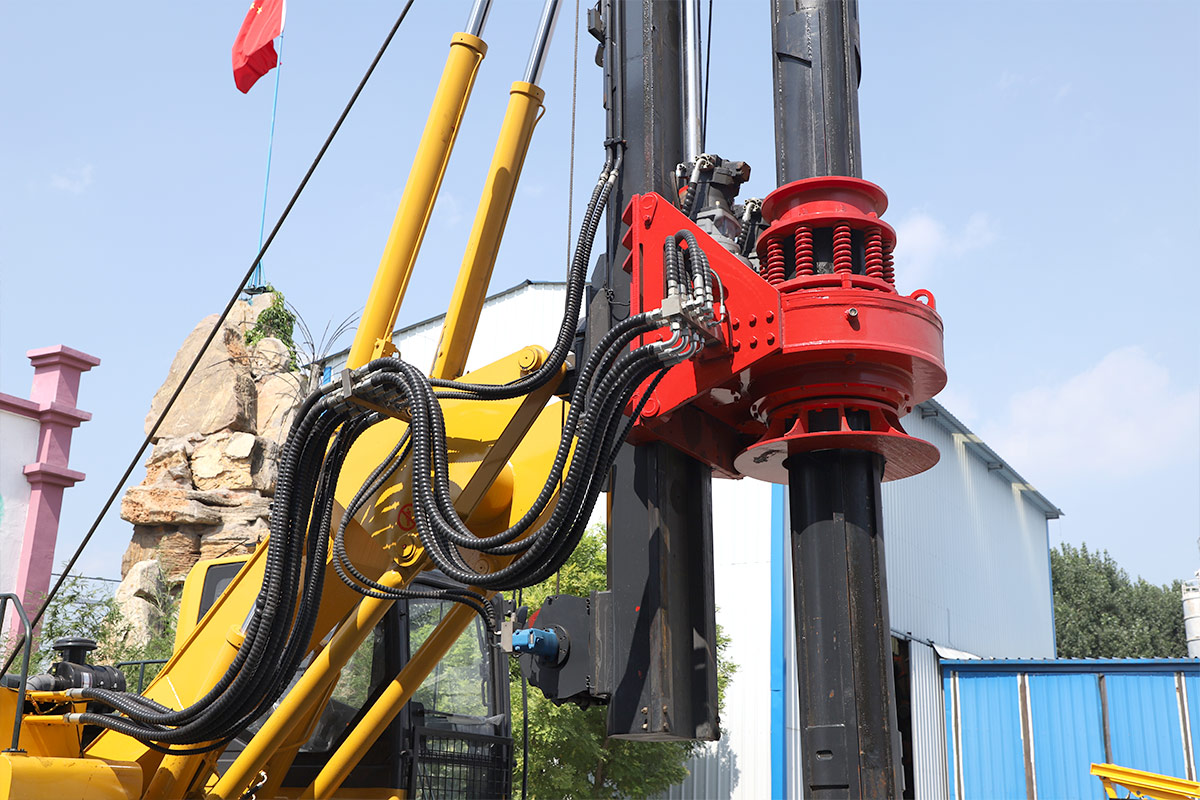

| Power Head | Maximum Torque | Kn.m | 130 | |
| Rotating Speed | rpm | 5-60 | ||
| Maximum Throwing Speed | rpm | 60 | ||
