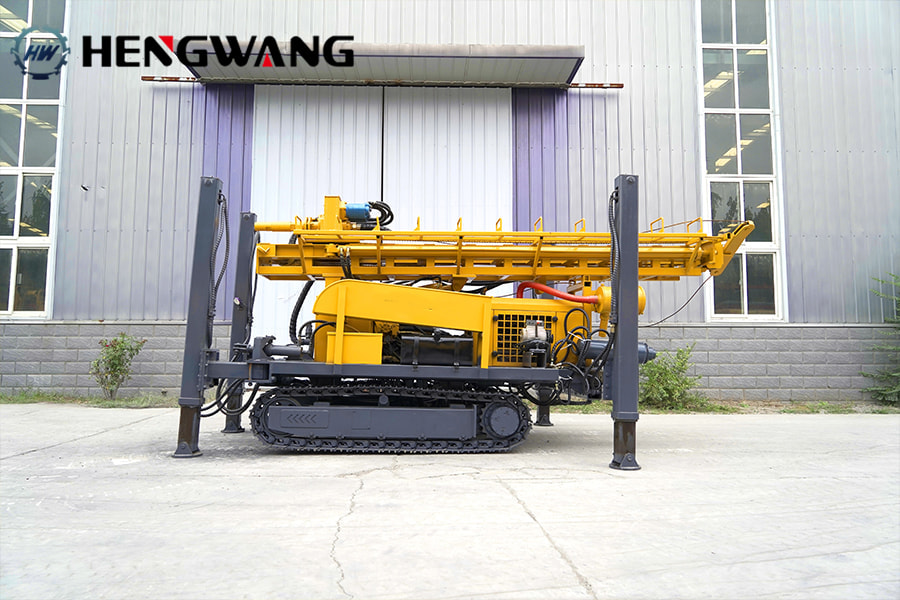

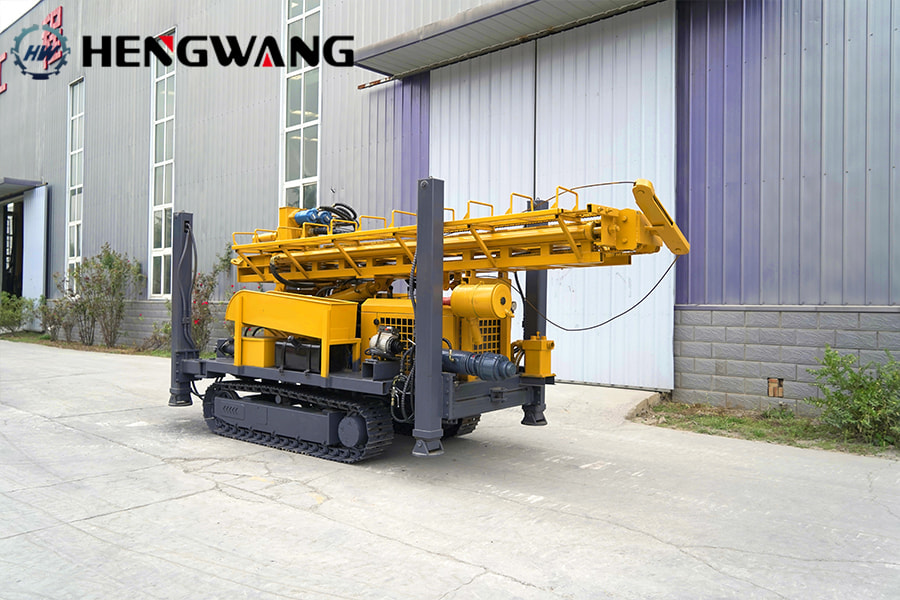

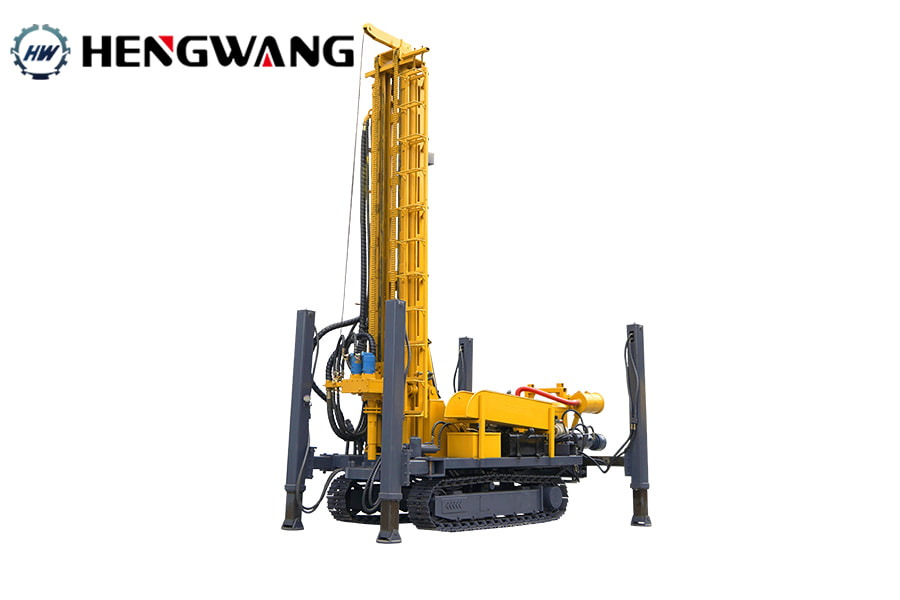

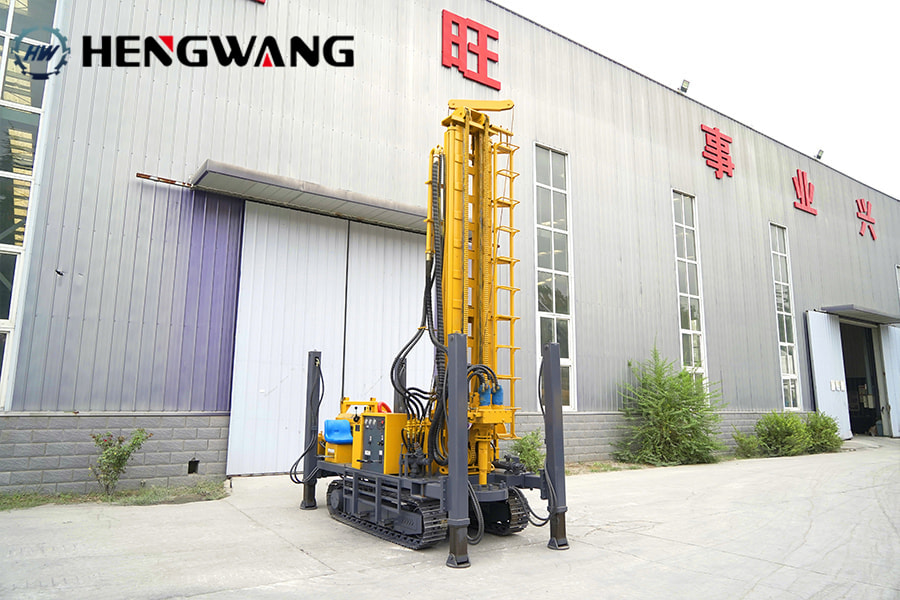

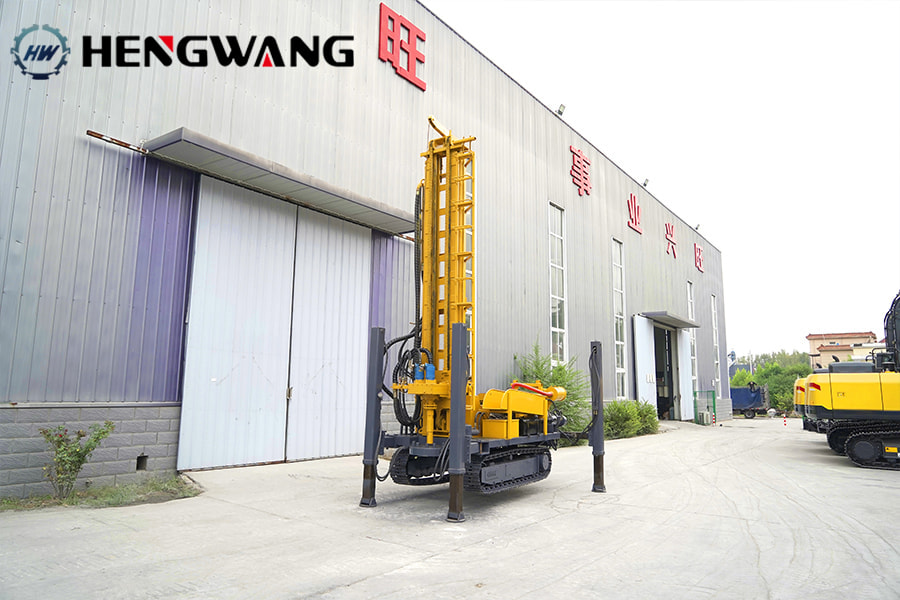

HQZ-260L Pneumatic Drill Rig

  • Factory direct
  • One-year warranty
Drilling depth: 260m
Drilling diameter: 130-305mm
Engine Power: 76Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon


modelHQZ-260L
tower3m
ChassisRubber track         /        Steel track/
Drilling diameter130-305mm
Drilling depth260m
One-time advancement length3.6m
Walking speed2.5km/h
Maximum gradeability30
/
Engine brandYunnei                /              Yuchai/
Engine power76/73kw
working pressure1.7-3.0mpa
Air consumption17-31m³/min
Drill pipe diameter76/89mm
Drill pipe length1.5/2.0/3.0m
Lifting power17T
Swing speed45-65rpm
Rotating torque4500-4700          /            4500-5000N.m
Dimensions3900*1850*2350mm
weight4.8                    /                6    T

Due to the continuous updates and advancements in technology, the technical parameters and configurations of products are subject to change at the time of actual delivery. We strive to provide the most up-to-date and accurate information, but it is always recommended to confirm the technical specifications and configurations at the time of placing your order.


The HQZ pneumatic drilling rig is a lightweight, efficient, and multifunctional drilling equipment that excels in various drilling projects, including industrial, civil drilling, and geothermal drilling. It offers the following main features:


1. Pneumatic drilling rig with the collaboration of an air compressor, delivering high working efficiency.

2. Enhanced work stability through increased counterweight, ensuring strong stability during drilling operations.

3. Perfect cooperation between the engine and hydraulic system, resulting in reduced fuel consumption and improved fuel efficiency.


Please note that due to the continuous updates and progress in technology, the technical parameters and configurations of the rig may vary at the time of actual delivery.
