- Factory direct
- One-year warranty

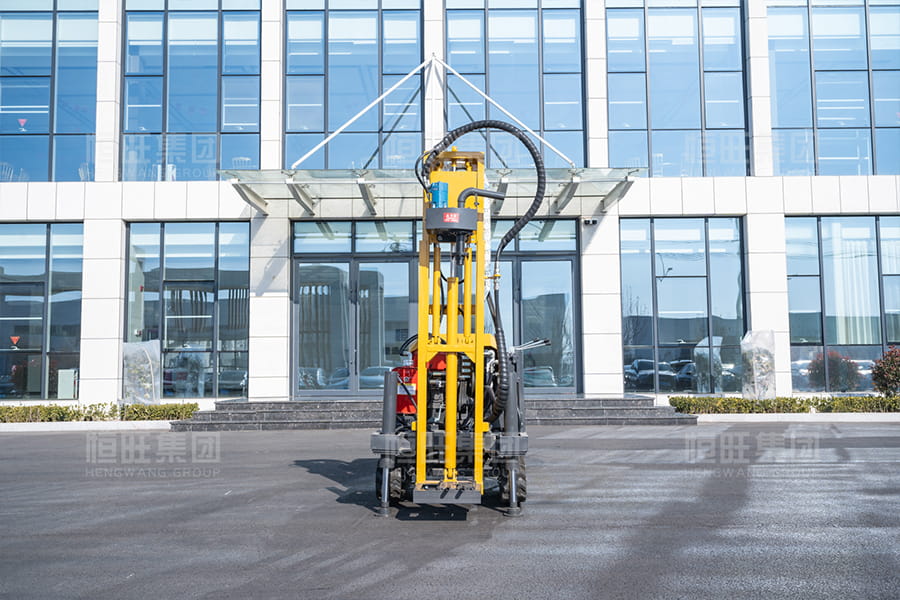

Operating Weight ：1220KG
Drilling Depth:0–150m
Hole Diameter:100–350mm
Drilling Depth:0–150m
Hole Diameter:100–350mm
| Category | Parameter | Specification | Unit |
| Overall Configuration | Operating Weight | 1220 | KG |
| Engine Model (Standard) | 25 | HP | |
| Engine Model (Optional) | 22 / 35 | HP | |
| Maximum Speed | 272 | r/min | |
| Gear Pump Displacement | 40 / 16 | ml/r | |
| Hydraulic Tank Capacity | 36 | L | |

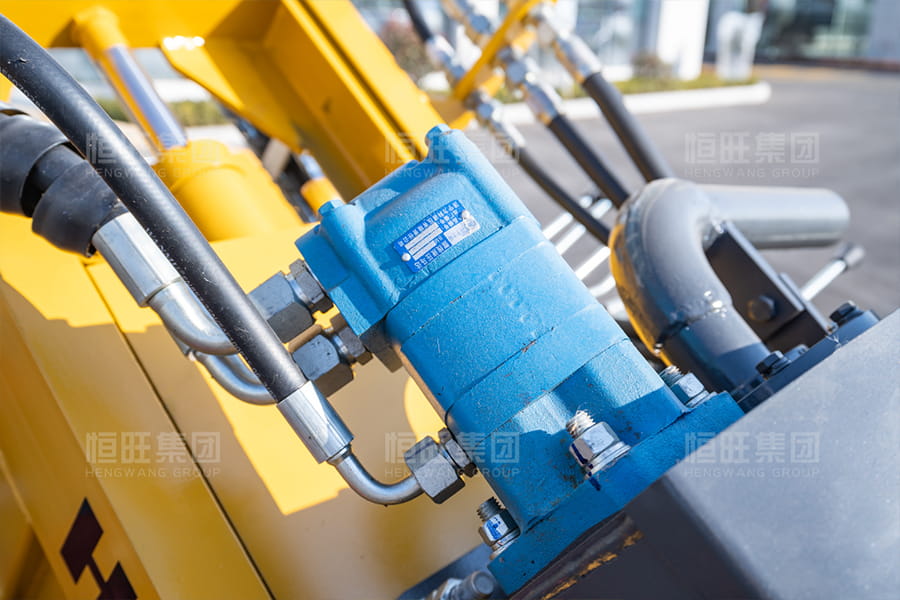

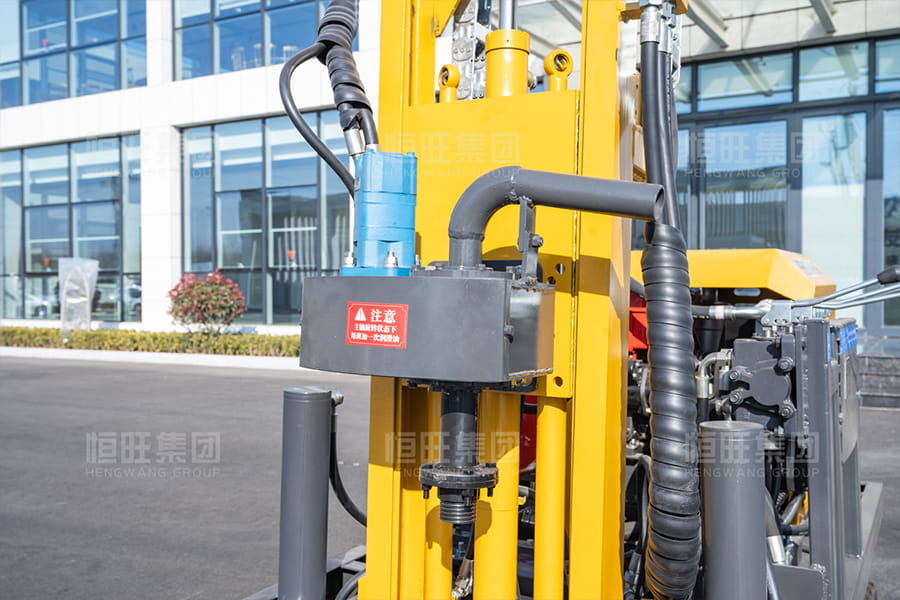

| Technical Specifications | Rotary Head Rotation Type | Single Motor Drive | - |
| Max. Torque | 1500 | N·m | |
| Max. Speed | 272 | r/min | |
| Drill Rod (Standard) | ϕ50∗1000/1500 | mm | |
| Drill Rod (Optional) | ϕ60∗1000/1500 | mm | |
| Drill Rod (Optional) | ϕ73∗1000/1500 | mm | |
| Hole Diameter | 100–350 | mm | |
| Drilling Depth | 0–150 | m | |
| Stroke Length | 1.7 | m | |
| Mast Tilt Angle | 40 | ° | |
| Gradeability | 25 | ° | |
| Traveling Speed | 2 | km/h | |
| Ground Clearance | 120 | mm | |
| Track Width | 180 | mm |

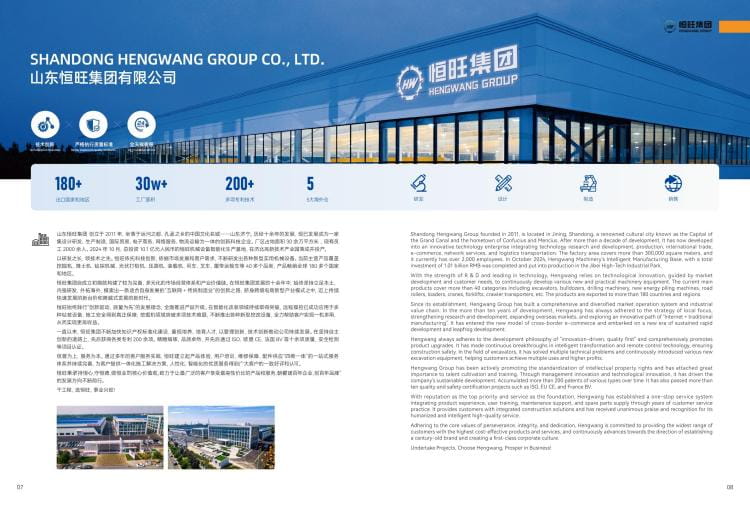

Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
Fill in the form to get the latest product parameters and the best price.
8618853755963
