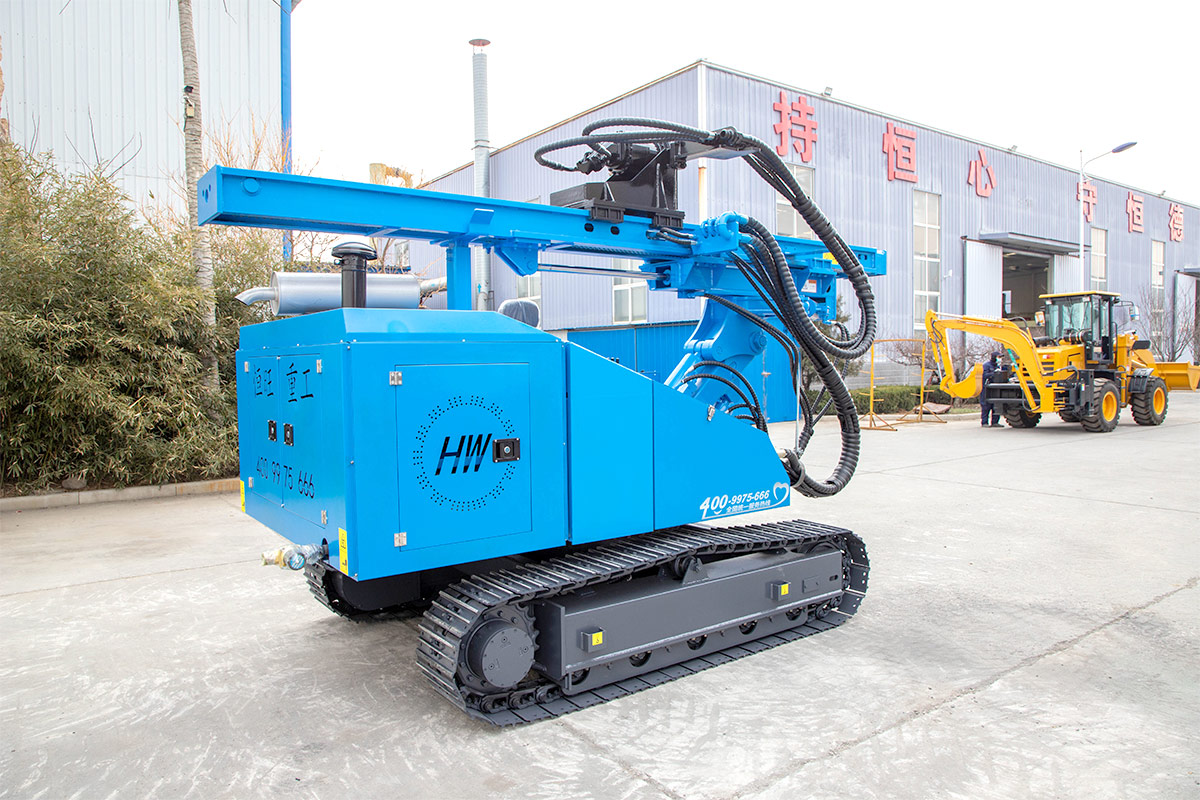

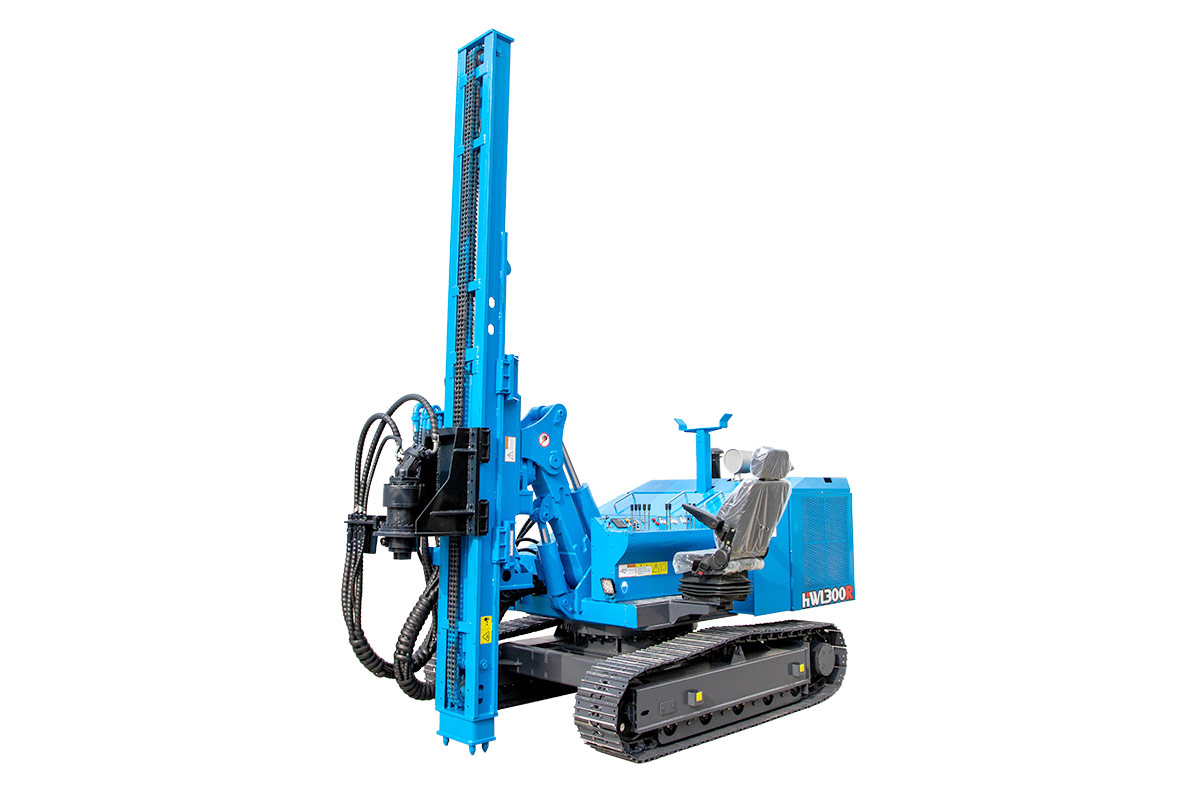

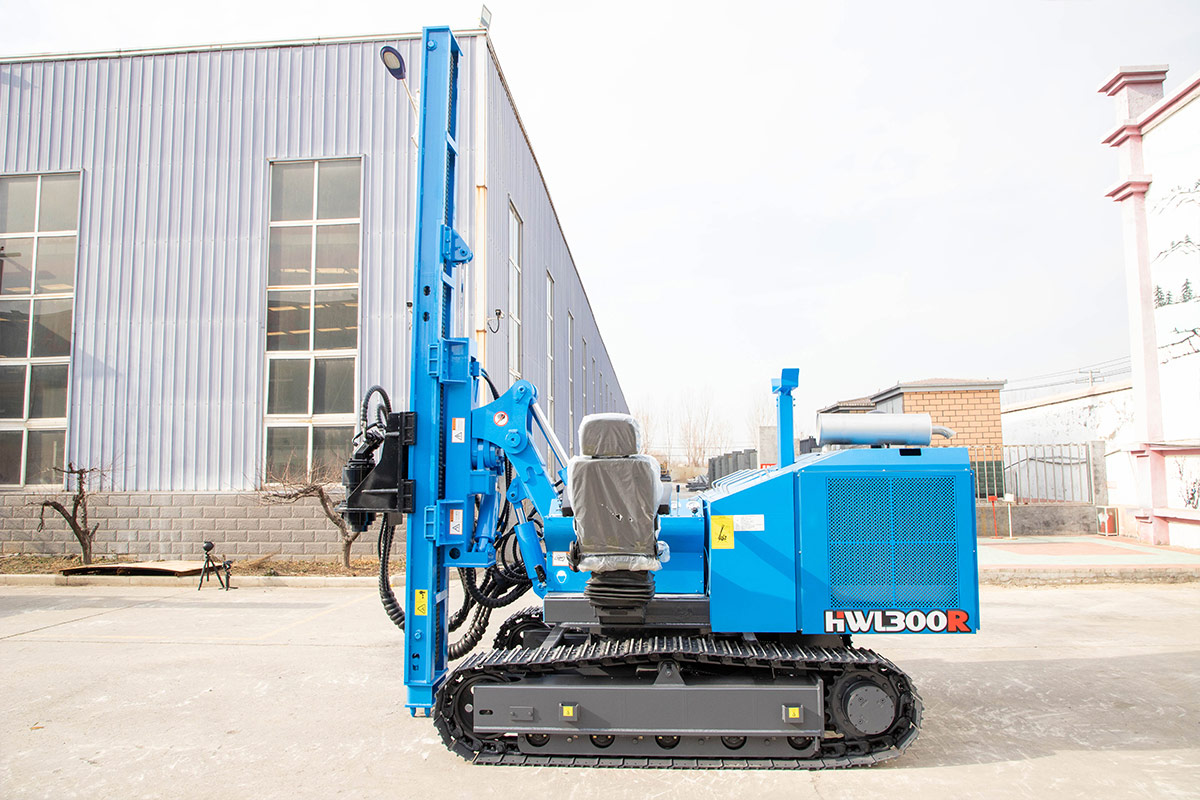

HWL300R Solar Pile Driver

  • Factory direct
  • One-year warranty
Pile Length: 3m
Rotation angle : 360°
Machine Weight: 7.5T
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon


Product numberHWL300R
Hydraulic hammer model75/85/100 optionalmm
Hydraulic hammer flow50-110L/min
Impact frequency350-800bmp
Drill rod diameter75/85/100mm
pile height3m
Pile height sliding guide frame tilt angle(Left)5(Right)5°
Rack rotation angle360°
Hydraulic system pressure22mpa
Gear pump displacement40+40+25ml/r
Driving speed3km/h
Vehicle weight7500kg
Engine power85kw
Engine rated speed2600r/min
Track shoe width350mm

L*W*H 2375*1980*4760mm(working status)

L*W*H 4760*1980*2375mm(Shipping status(The transportation height is the height with the hydraulic hammer head/hydraulic power head removed)

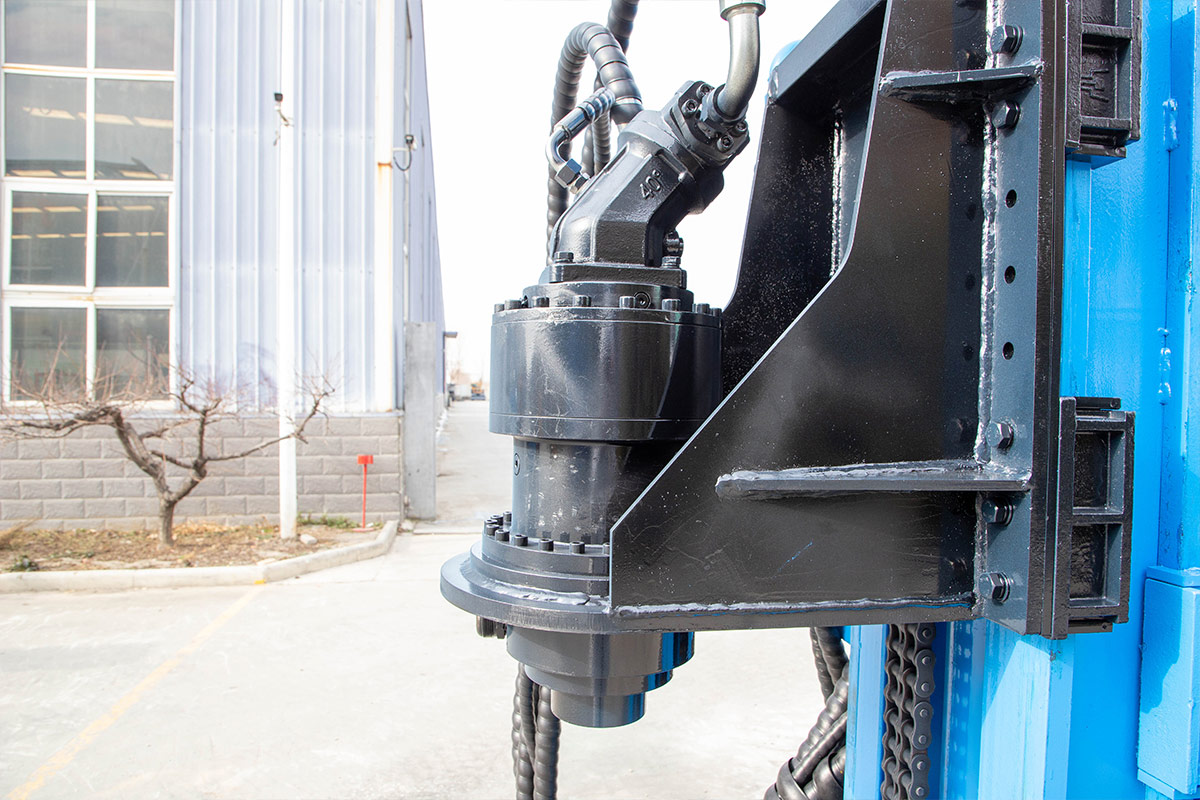

Hydraulic drilling power headmodel


single maximum depth3m
Maximum DTH diameter130-400mm
Maximum spiral drilling diameter500mm




Main feature:

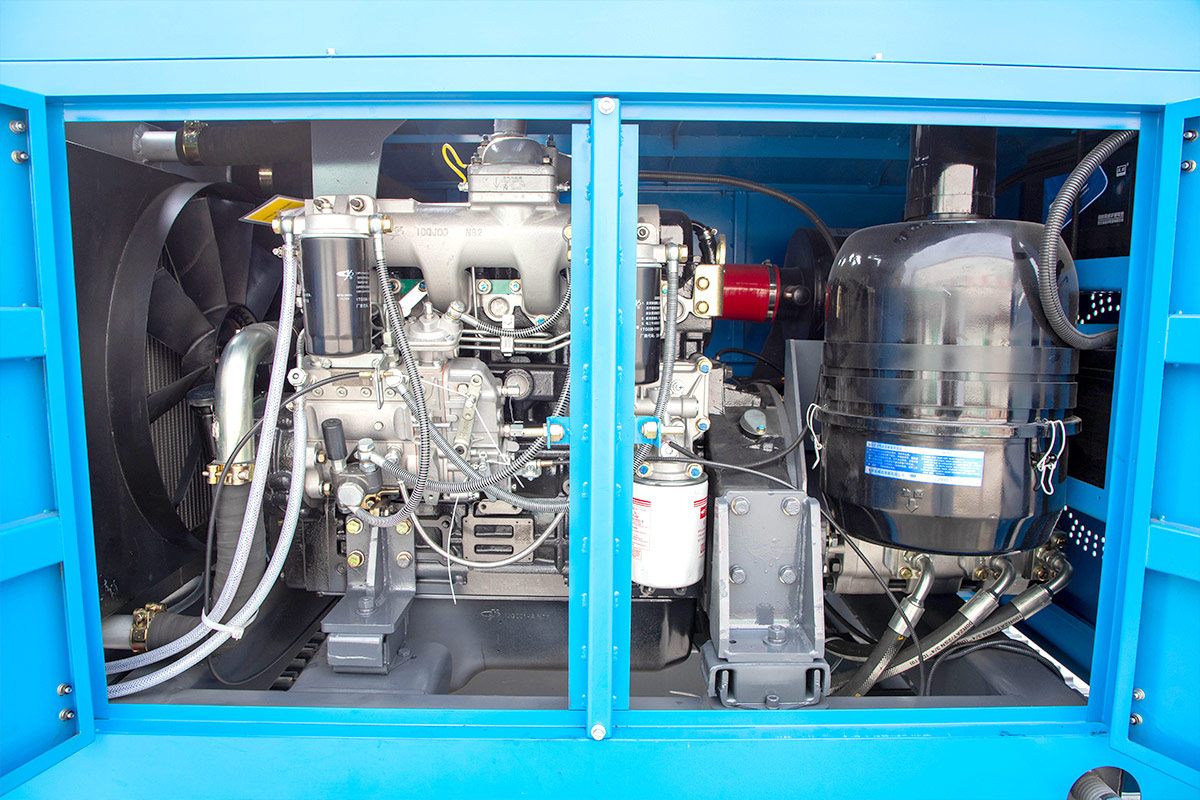

1. The high-torque engine, in collaboration with the air compressor, enables higher work efficiency.

2. Advanced casing technology is employed to prevent hole collapse during drilling operations.

3. The drilling rig is available in various models, allowing for selection based on specific construction needs to avoid unnecessary equipment capacity.

4. The drilling rig is certified with ISO, CE, and other international quality standards, ensuring its reliability and performance.

HWL300R photovoltaic piling machine is a high-performance piling equipment launched by Hengwang Group for various piling applications.

Originally designed for early-stage piling in photovoltaic power stations, HWL300R has undergone continuous R&D and upgrading to make it suitable for piling projects in farms, pastures, orchards, and other sites.
