Drilling Depth: 5M
Drill Rod: B22
Weight: 24Kg
Drill Rod: B22
Weight: 24Kg

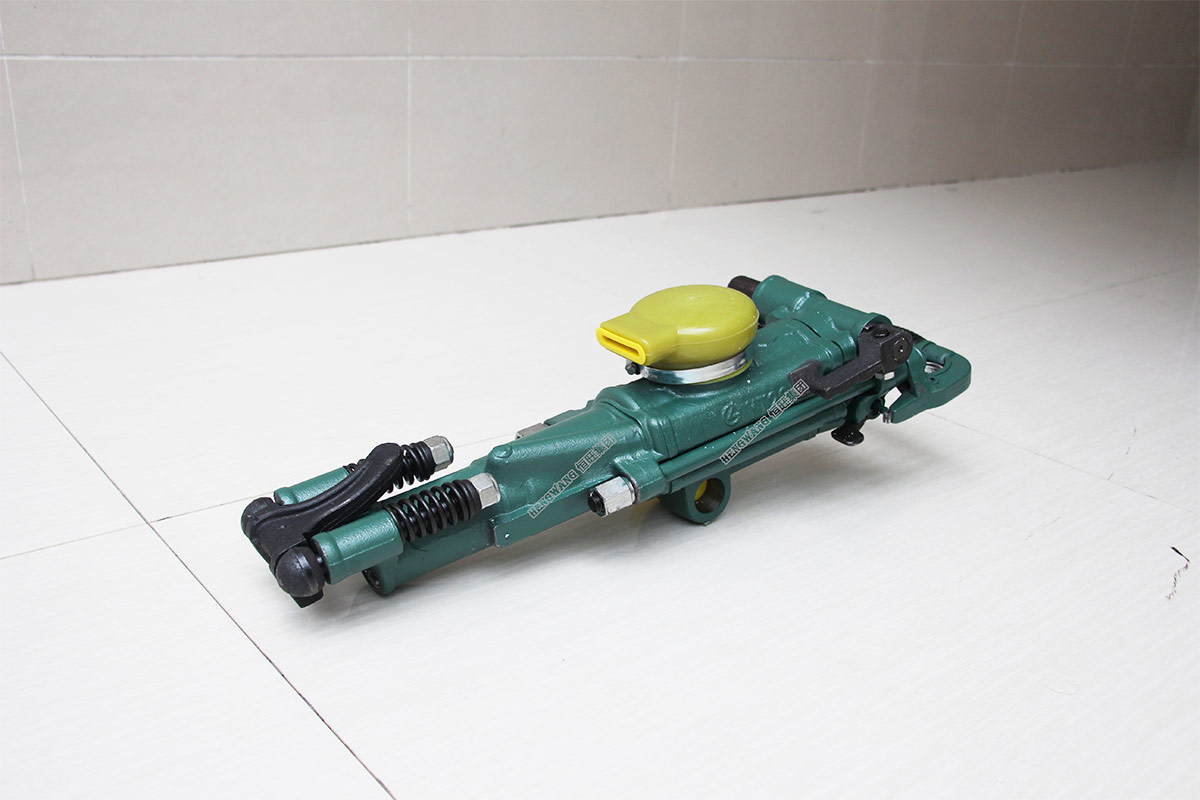

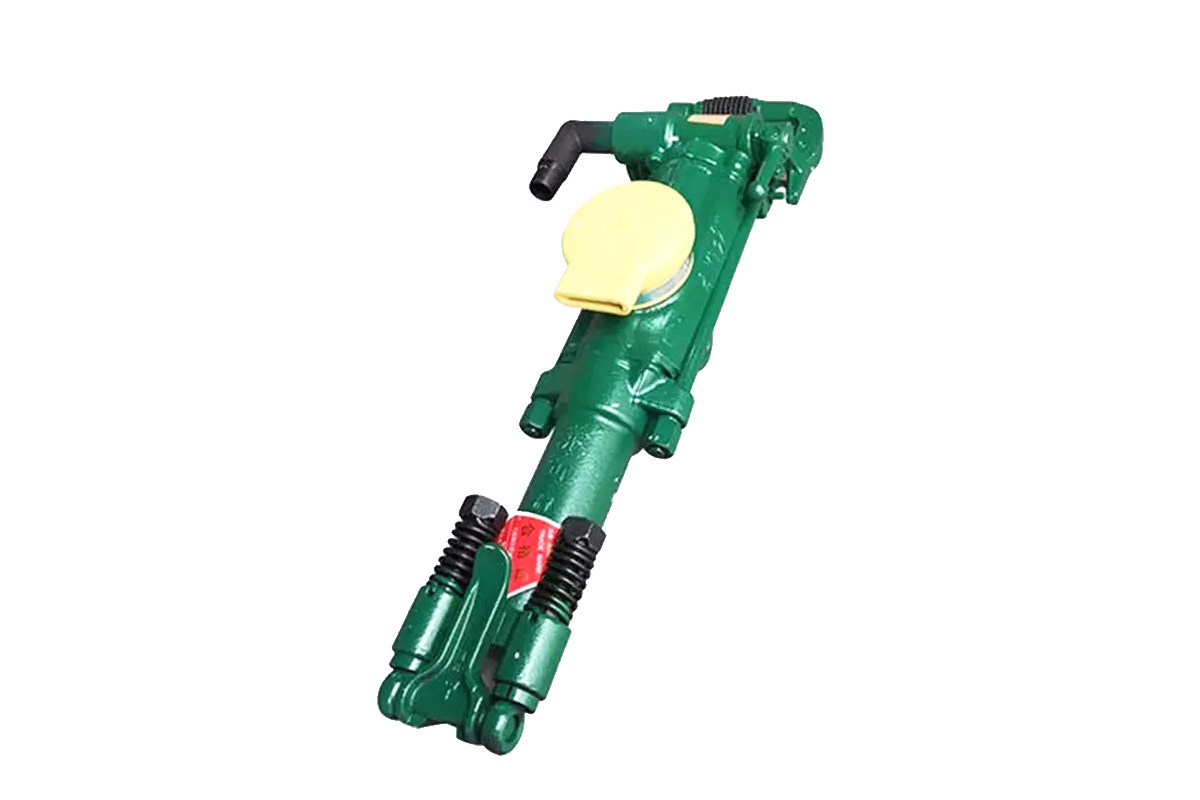

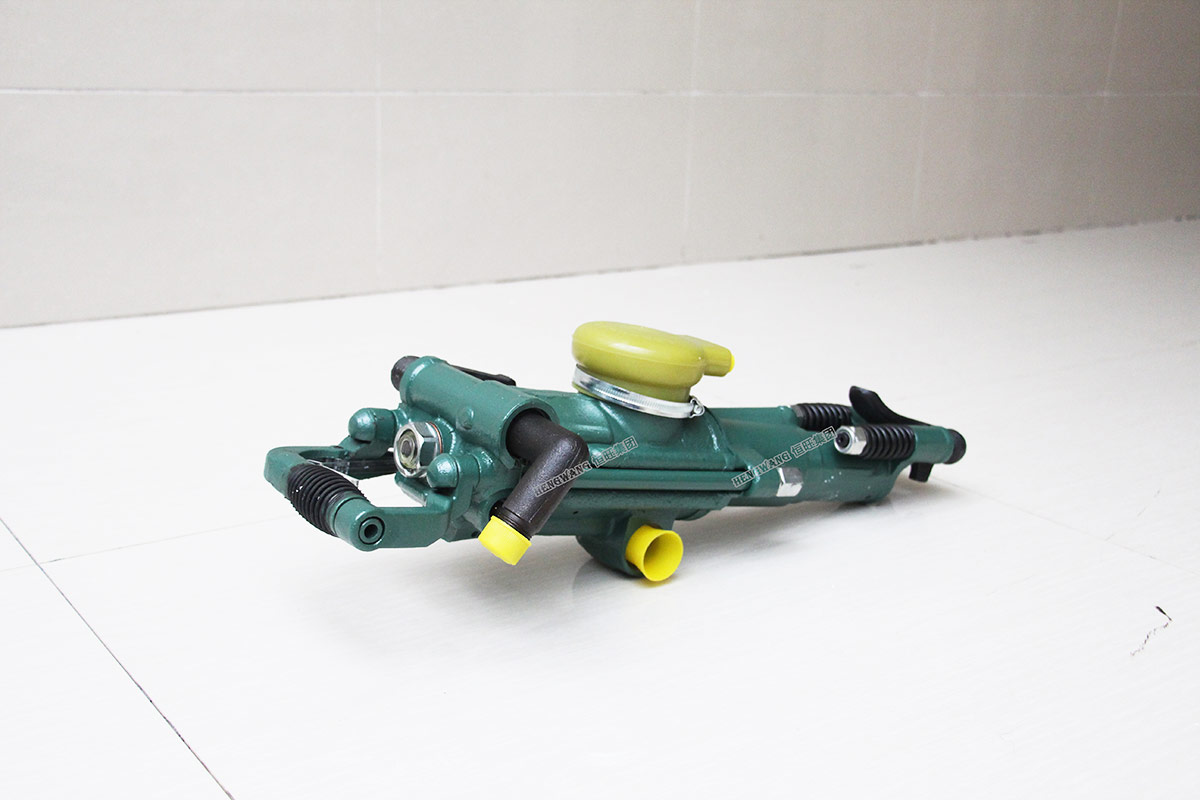

YT24 rock drill, pneumatic jack hammer can be used to digging dry or wet by horizontal holes, vertical holes or angling holes on medium-hard rock or hard rock. Widely used in mines, railway, irrigation and quarry to drill holes and for the second digging holes.
| Type | YT24 | |
| Weight (kg) | 24 | |
| Air consumption (L/s) | ≤67 | |
| Bore Dia. (mm) | Φ34-42 | |
| Drilling depth (m) | 5 | |
| Shank(mm) | 22×108 | |
| Air pressure (MPa) | 0.63 | |
| Suitable air-legs | FT140BD | |
| Height (kg) | 15.6 | 13.9 |
| Length (mm) | 1687 | 1400 |
| Feed length (mm) | 1250 | 965 |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
