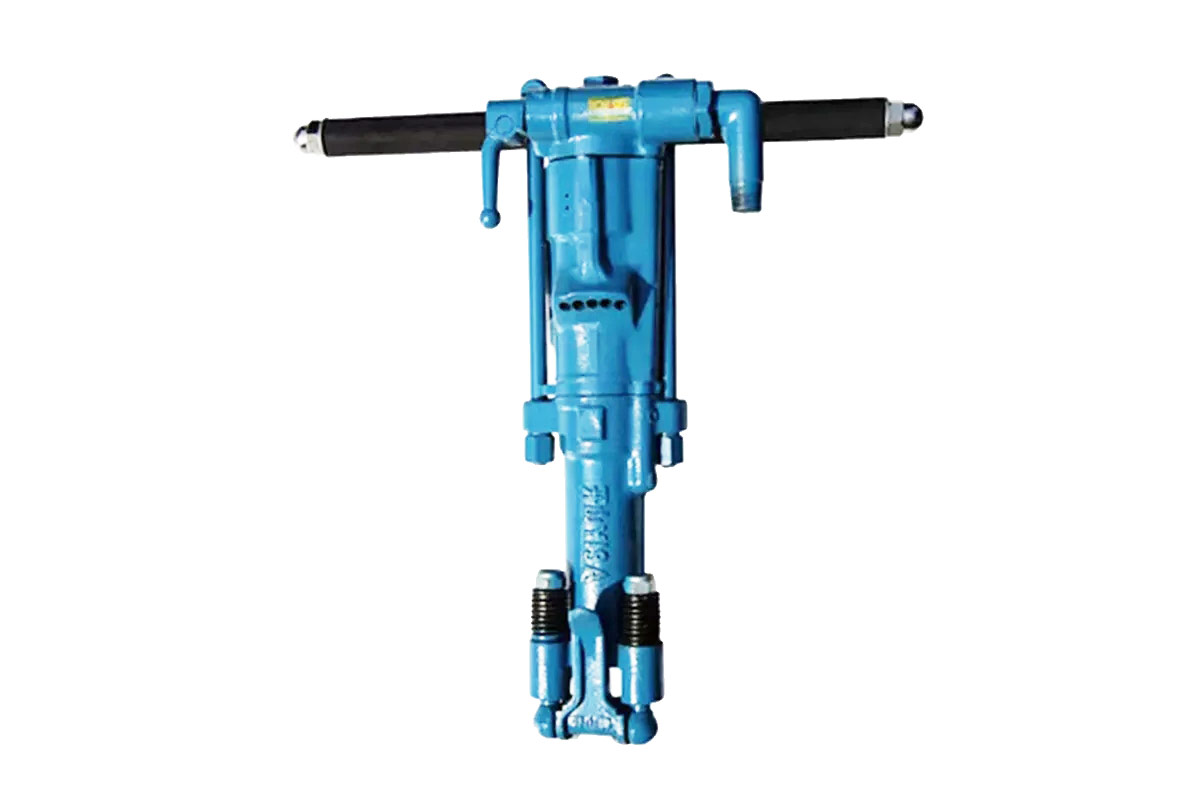

Y19A Portable Rock Drill

  • Factory direct
  • One-year warranty
Drilling Depth: 5M
Drill Rod: B22
Weight: 19Kg
Product Detail

1. Y19A Portable Rock Drill is mainly used in small quarries, small coal mines and limestone mines for drilling, blasting for constructing roads in mountain areas, also in the capital construction for water conservancy works.

2. Y19A Portable Rock Drill is suitable for drilling works in large mines for boulder blasting and other projects as well.

3. When it is matched with air-leg model FT100, it can perform both dry and wet drilling under various kinds of rocks, and it is even more flexible in drilling operation.

4. when matched with the small-size compressor of capacity of 1.5m3, the function will be better than others.

5. The flanged control valve is adopted, so it has many advantages such as reasonable in structure, quick in starting ,light in weight, fast drilling speed, lower air consumption, smaller vibration, easier operation, lower trouble rate, long-life parts, good economic effect.

6. Y19A Portable Rock Drill is also equipped with a rubber damping handle, so is easy to operate and provide the operators with necessary working protection.

ModelY19A
Weight19kg
Overall dimensions600×534×157mm
Stoke54mm
Cylinder Dia65 mm
Air pressure0.4-0.5mpa
Water pressure0.2-0.3mpa
Impact energy40J
Impact frequency>28-35Hz
Air consumption37-43L/S
Drilling speed180mm
Max drilling depth>6m
Air pipe inside dia19mm
Water pipe inside dia13mm
Drill bit size32-42mm
Shank sizeH22X108mm
