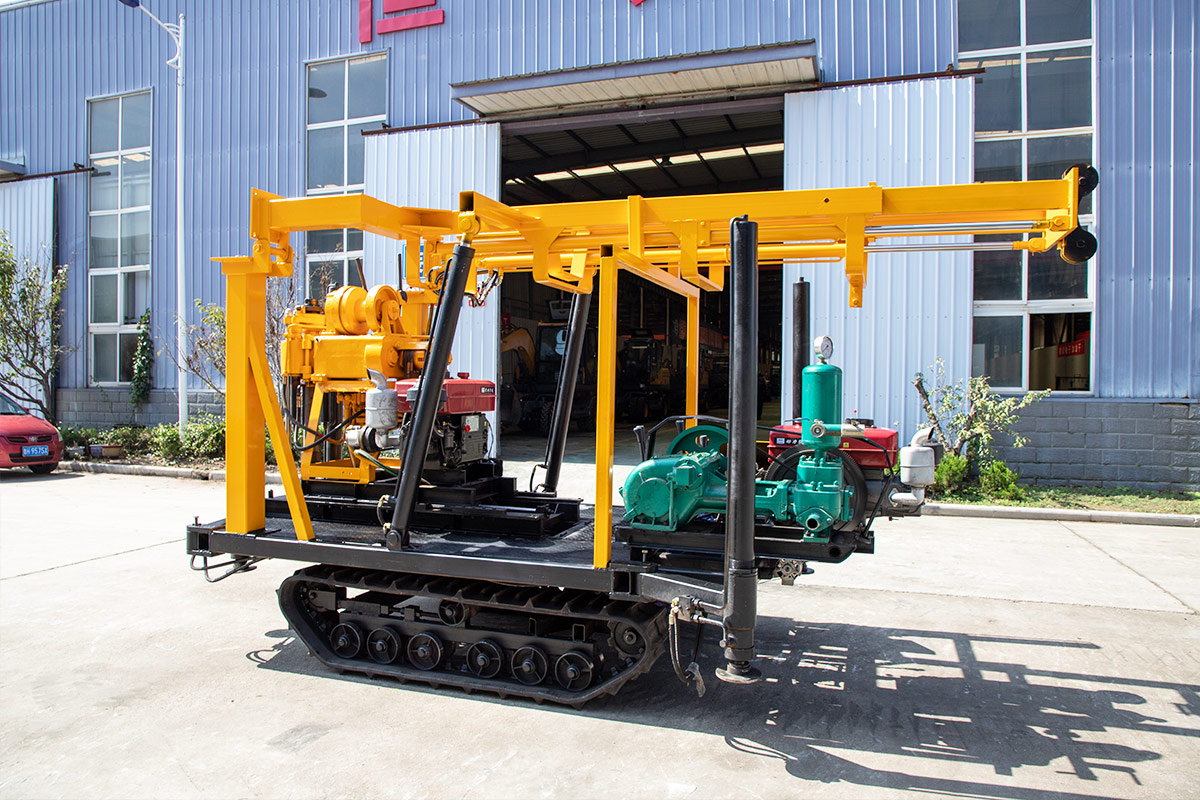

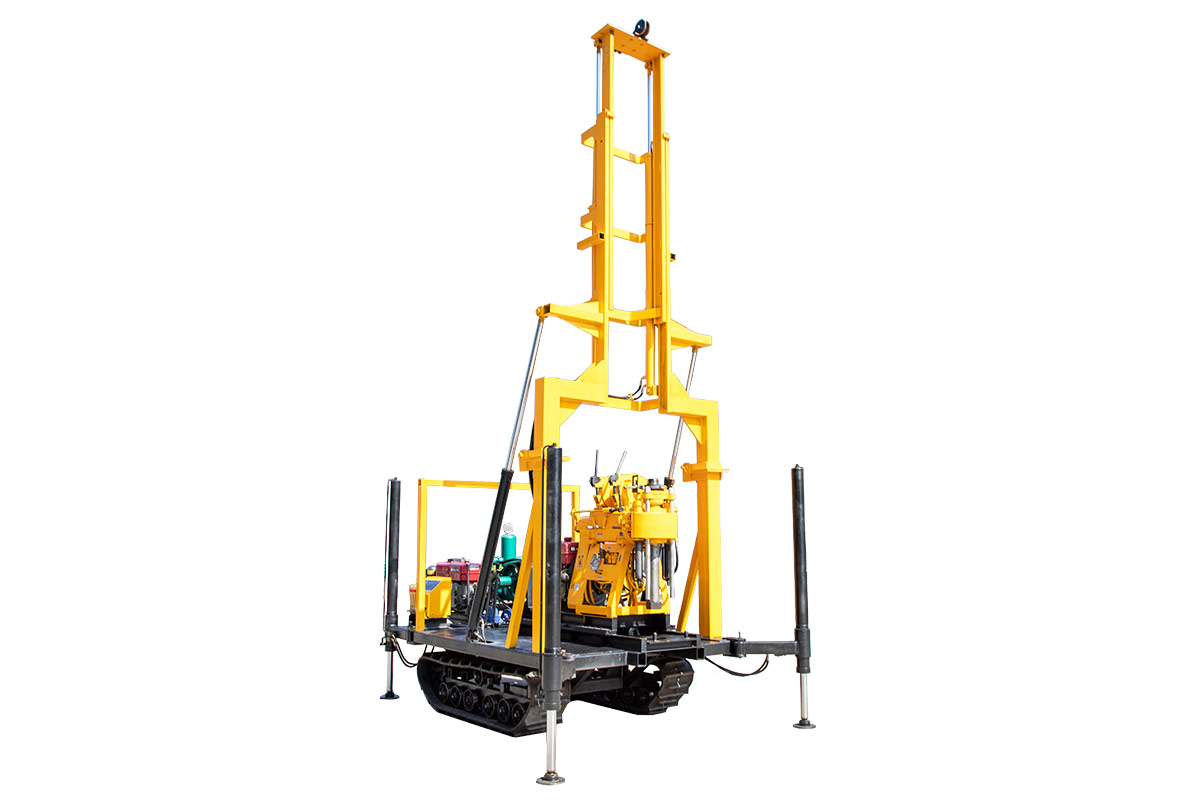

HW-230L Hydraulic Drilling Rig

  • Factory direct
  • One-year warranty
Drilling diameter: 75-500mm
Drilling depth: 230m
Rated Power: 15Kw
Product Detail

Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon



modelHW230L
Drilling depth230m
Opening diameter500(Soil)/220(Rock)mm
final hole diameter75mm
Drill pipe diameter42-50mm
Drilling angle90-75°
Engine power15kw
weight3300kg
Machine size3800*1950*2700mm
Vertical shaft speed130/300/480/730/830/1045r/min
Vertical axis travel450mm
Single rope lifting force2100kg
Single rope lifting speed0.35-2.23m/s
Wire rope diameterφ9.3mm
Wire rope capacity27m
Rated load18Ton
effective height6.5m
flow95L/Min
greatest pressure1.2Mpa
Optional configuration
Walking Gantry

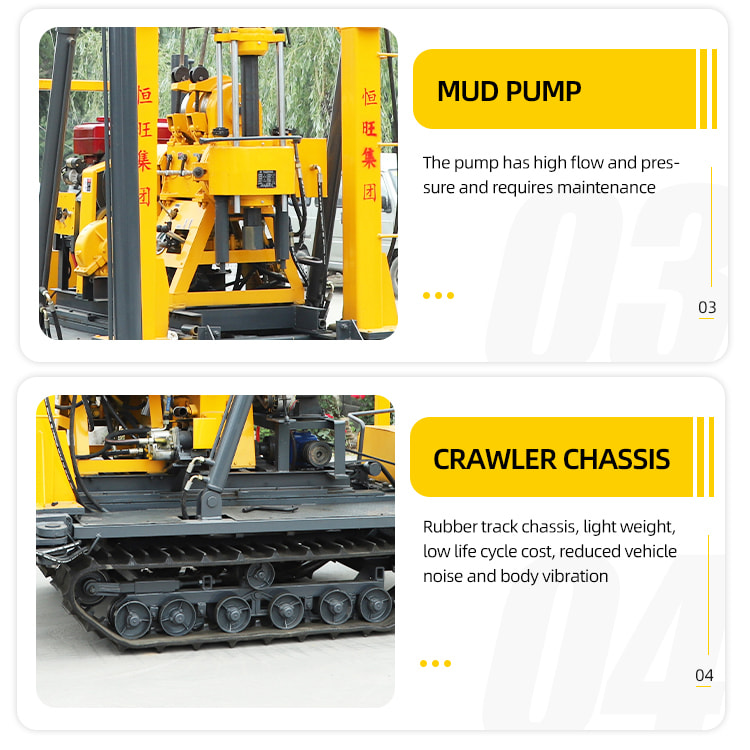

Furthermore, the rig can be easily transported as it is available in both tracked and truck-mounted configurations. The tracked version provides excellent maneuverability and accessibility in challenging terrains, while the truck-mounted option offers flexibility and mobility to reach various job sites

The Hengwang water well drilling rig offers several prominent features:

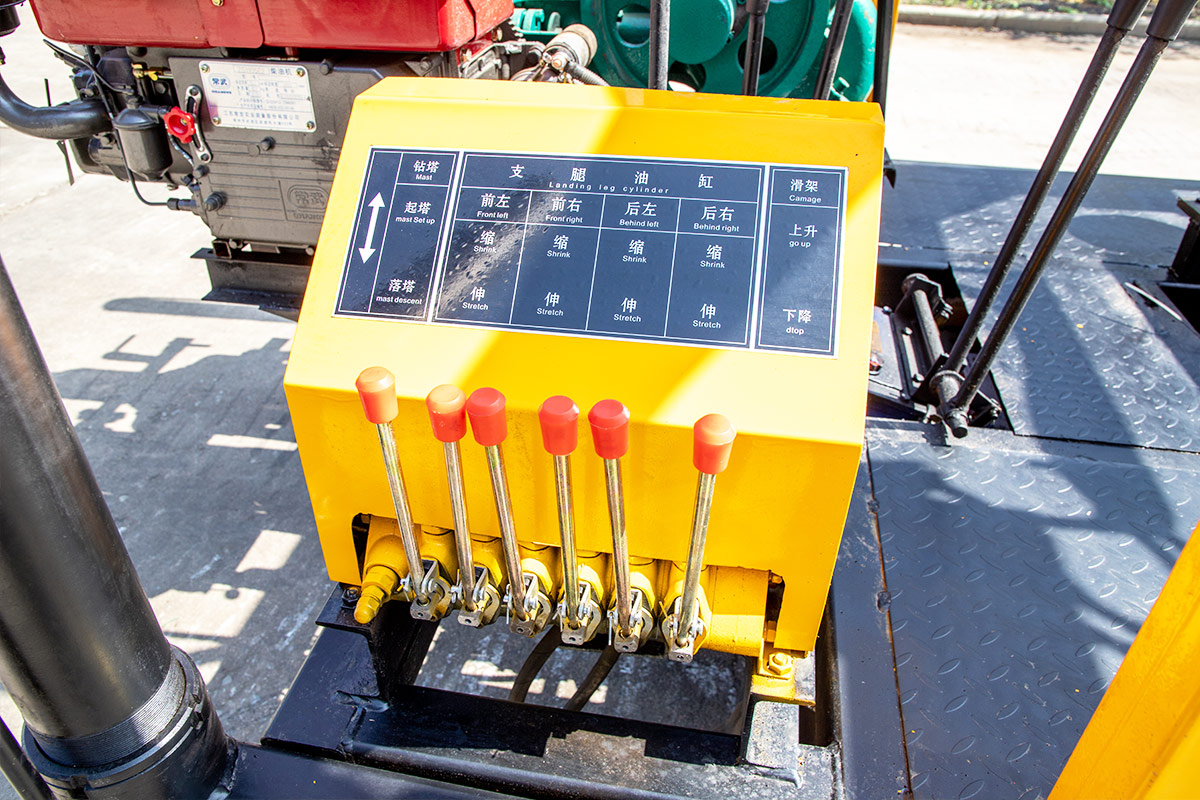

1. It incorporates a hydraulic automatic drilling mechanism, which enhances drilling efficiency and reduces the labor intensity associated with the operation. This feature streamlines the drilling process and improves productivity.

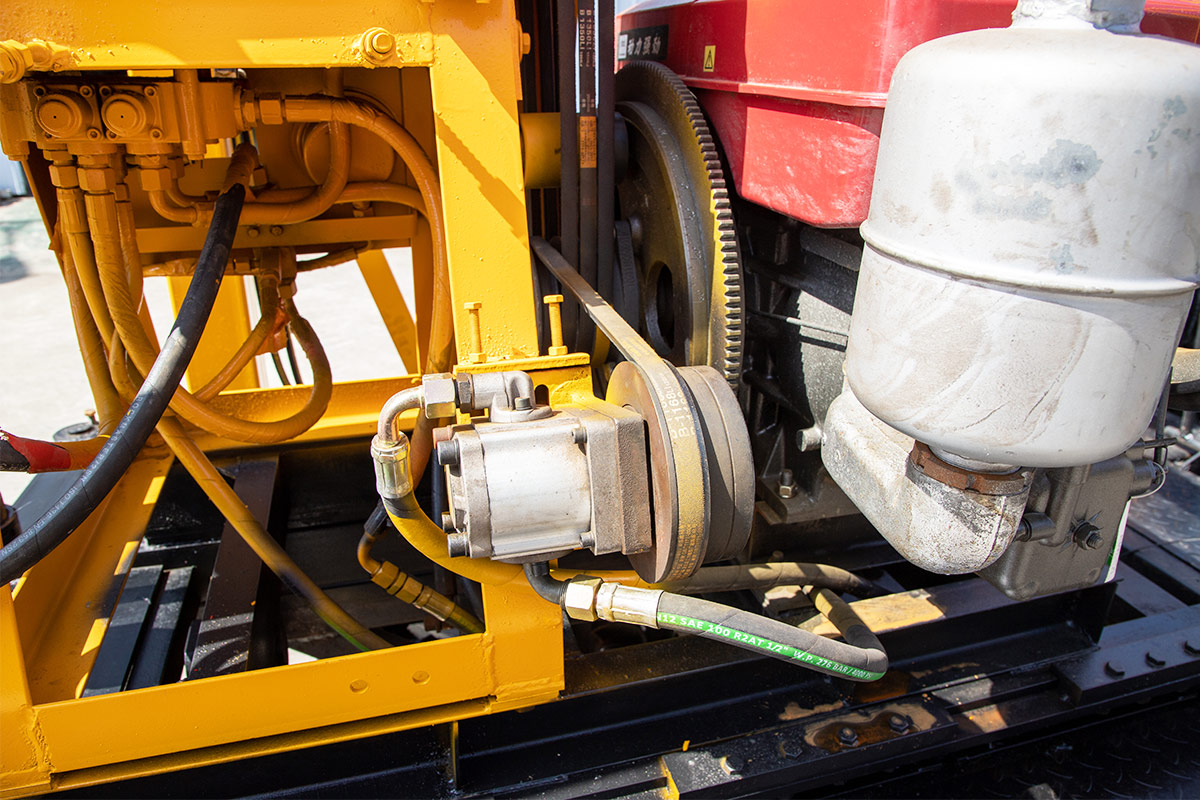

2. The rig is specifically designed to optimize the synergy between the engine and the hydraulic system. This harmonious combination results in improved overall performance and fuel efficiency, leading to a reduction in fuel consumption by approximately 7%. This not only saves costs but also promotes environmental sustainability.


3. The compact and lightweight fuselage design of the rig enables it to operate effectively in various terrains, including both plains and mountainous areas. Moreover, this design minimizes the potential damage to vegetation during drilling operations, demonstrating a commitment to environmental responsibility.


It's important to note that due to the continuous advancements in technology, the technical parameters and configurations of the drilling rig may undergo updates and improvements during the manufacturing and delivery process. Therefore, it is advisable to consult the latest information provided by Hengwang or their authorized representatives to obtain the most accurate and up-to-date technical specifications and configurations for the specific model you are interested in.
