HW-600XL/GL Fully Hydraulic Rope Coring Drilling Rig

HW-600XL/GL Fully Hydraulic Rope Coring Drilling Rig

Fully hydraulic rope coring drill rig
Direct from Factory One-Year Warranty CE · EPA Certified

Drilling depth: 200-600-650 (m)
Rated speed: 2400 (rpm)
Maximum torque: 450-1000 (N·M)

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

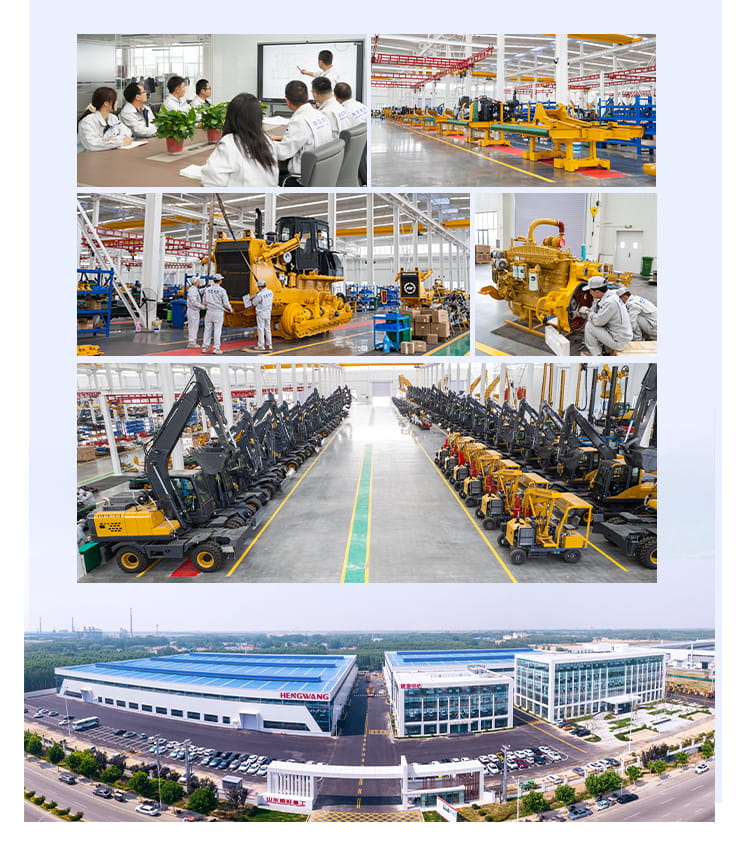

Hengwang production line and certifications

Every "HW-600XL/GL Fully Hydraulic Rope Coring Drilling Rig" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

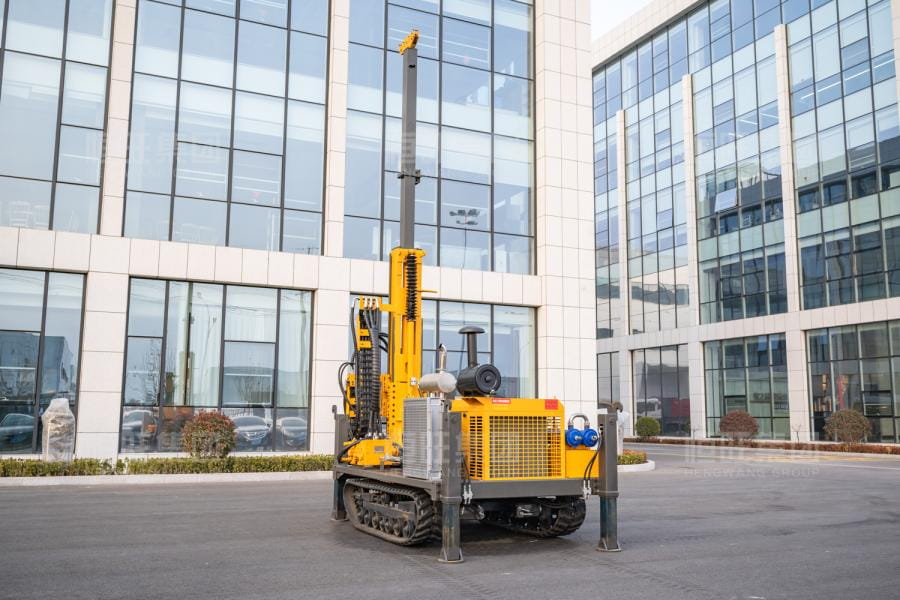

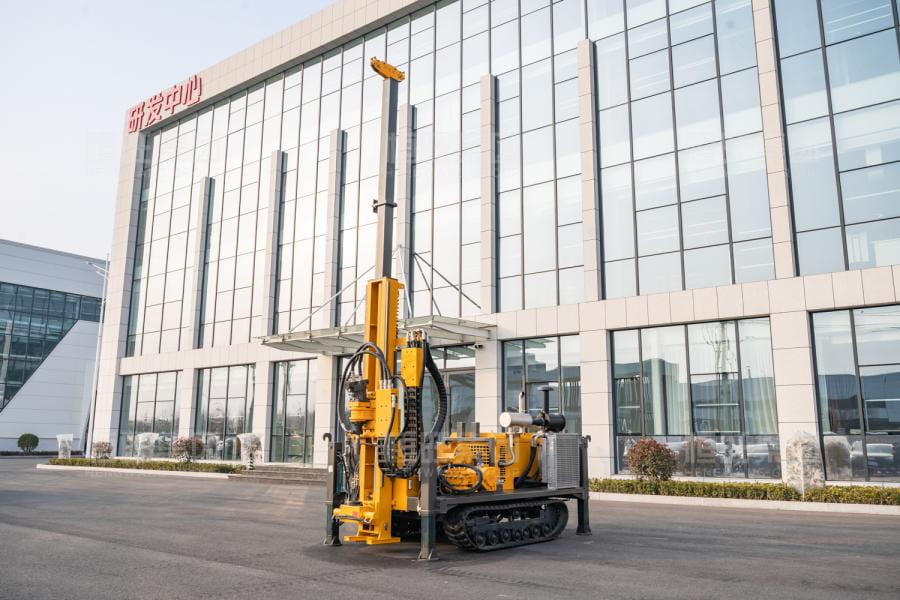

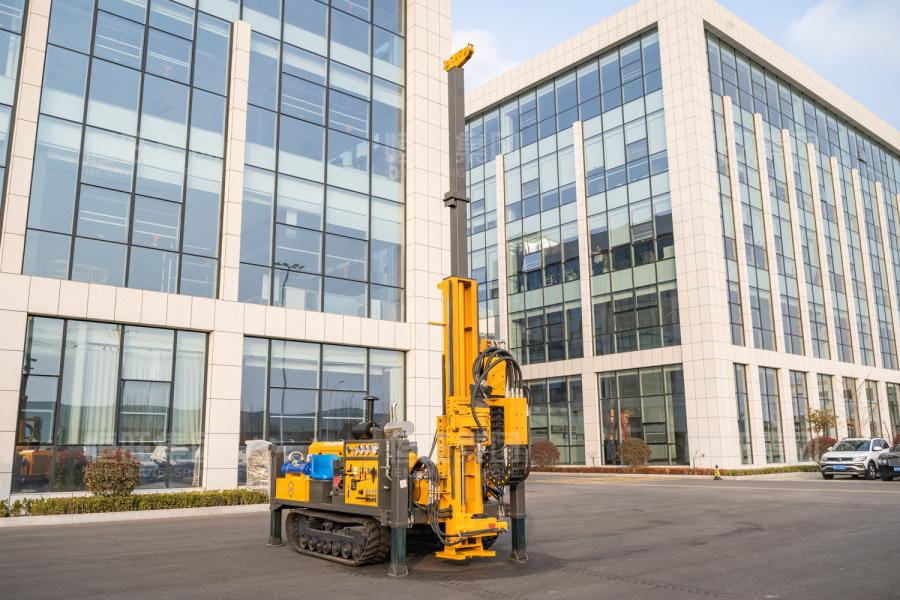

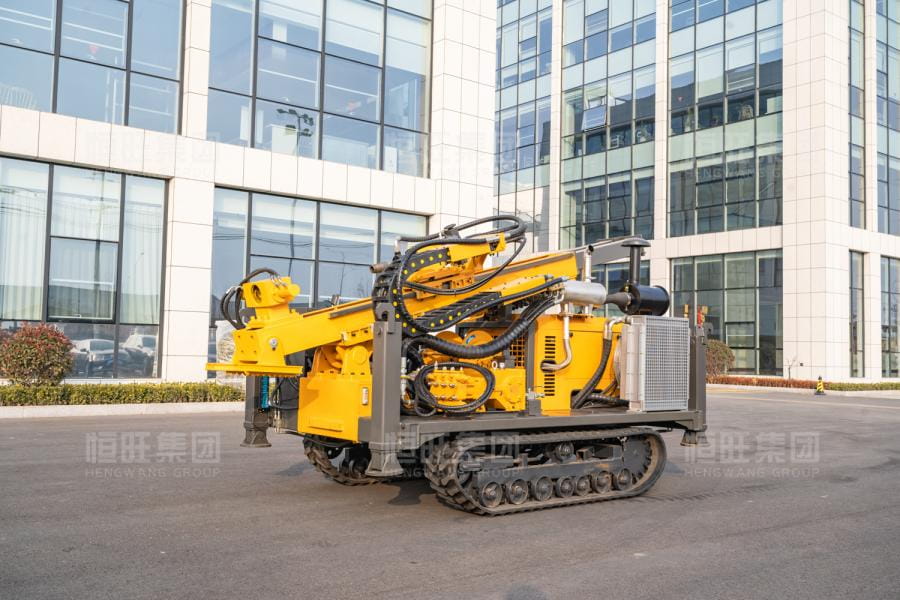

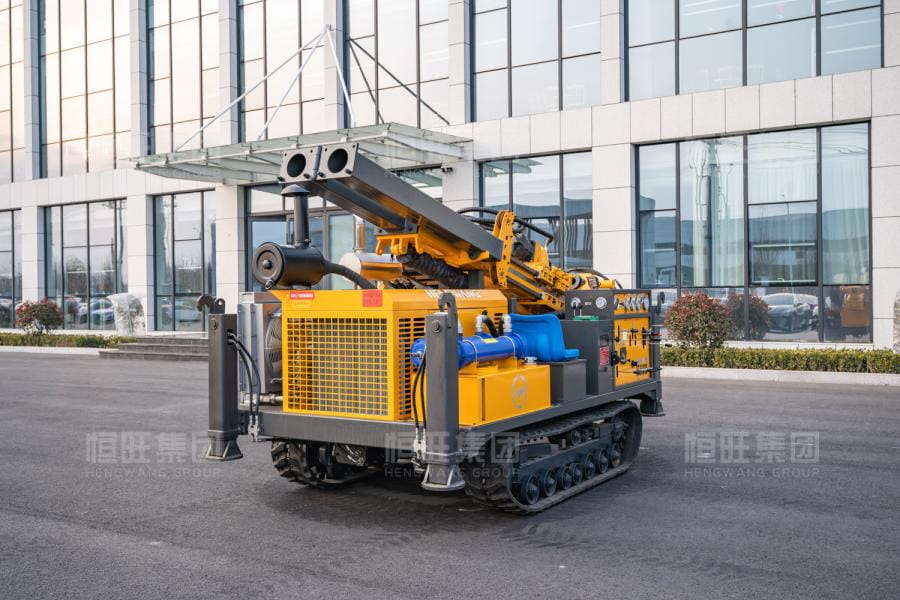

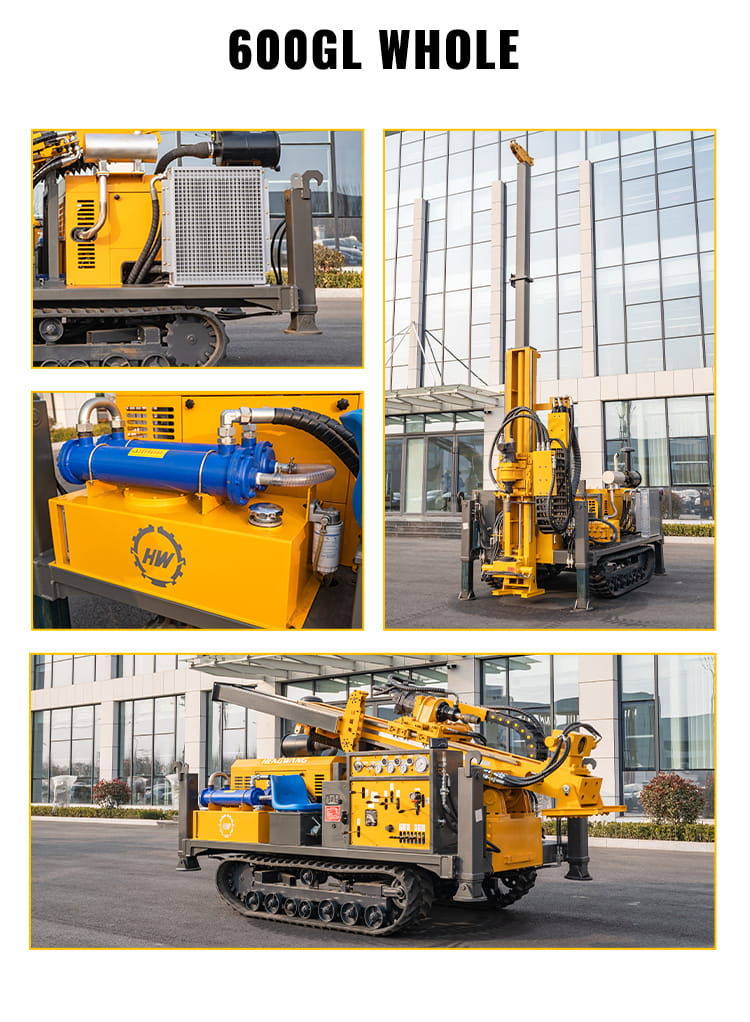

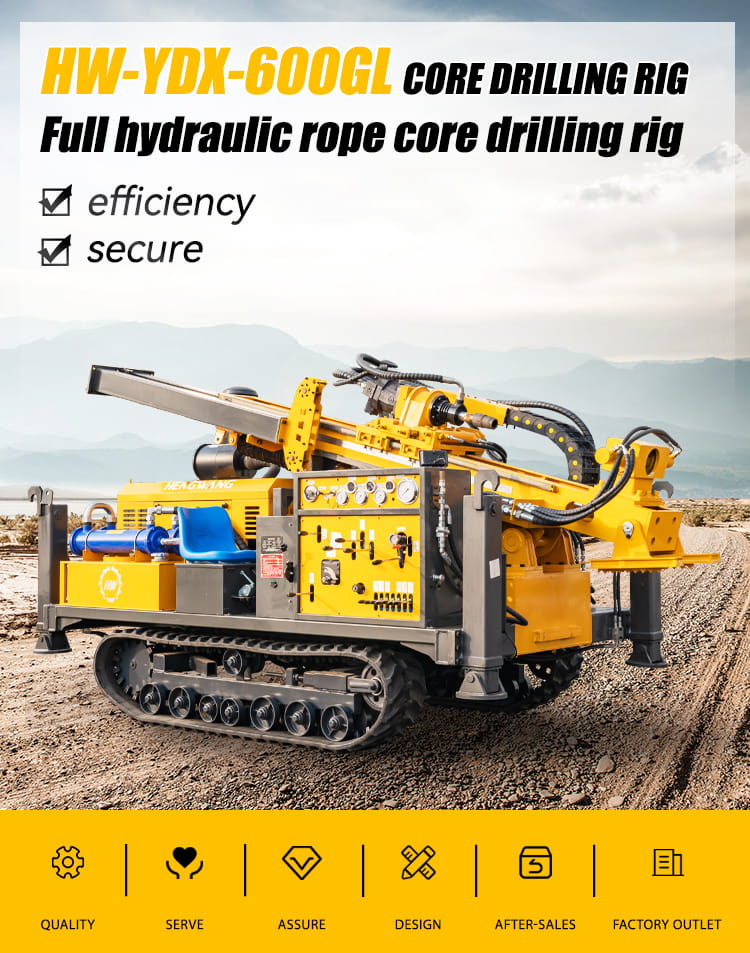

HW-600XL/GL Fully Hydraulic Rope Coring Drilling Rig

Crazy Sale Day: Submit the form to get order discounts and coupons!



Unleash the full potential of your drilling projects with the HW-600XL/GL Fully Hydraulic Wireline Core Drilling Rig. Engineered for

 high-performance and precision, this advanced rig excels in core drilling operations, delivering unmatched efficiency and accuracy.

The HW-600XL/GL’s fully hydraulic system provides superior control and power, allowing you to penetrate the toughest terrains with

 ease. Its wireline core retrieval system ensures quicker and safer core recovery, maximizing productivity while minimizing downtime.

Designed with a robust frame and user-friendly interface, this rig is built to withstand the most demanding conditions, ensuring reliability

 and durability in every project. Elevate your drilling operations with the HW-600XL/GL—where innovation meets unparalleled drilling capability.




Hengwang full hydraulic core drilling rig is ideal for:

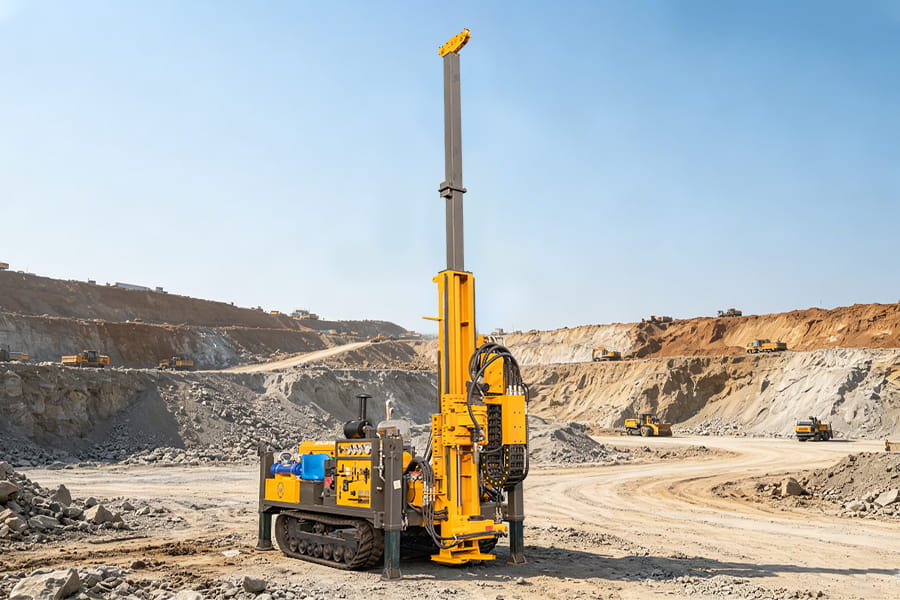

1. Mine Drilling (Geotechnical and Environmental)

2. Rock coring

3. Shallow exploration screening and sampling


Parameter:

modelHW-YDX-600XL
Drilling ability
caliberHTW-NTW-BTW
depth200-600-650(M)

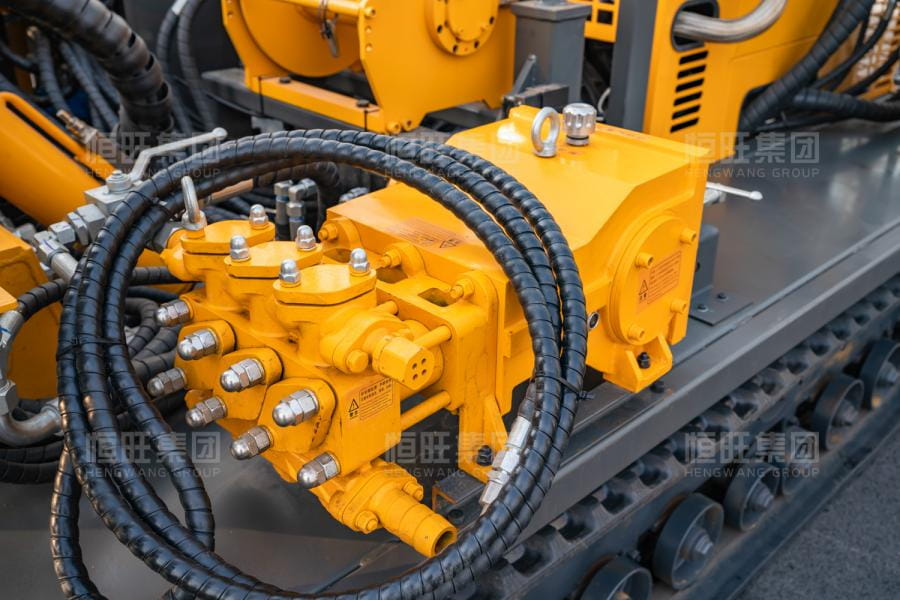

Hydraulic system
preset pressure21(MPA)
Rated flow192(L/min)
Cooling typeAir cooling + Water cooling
Engine
BrandYuchai
TypeTurbocharged
Rated rotary speed2400(RPM)
Rated power92(KW)

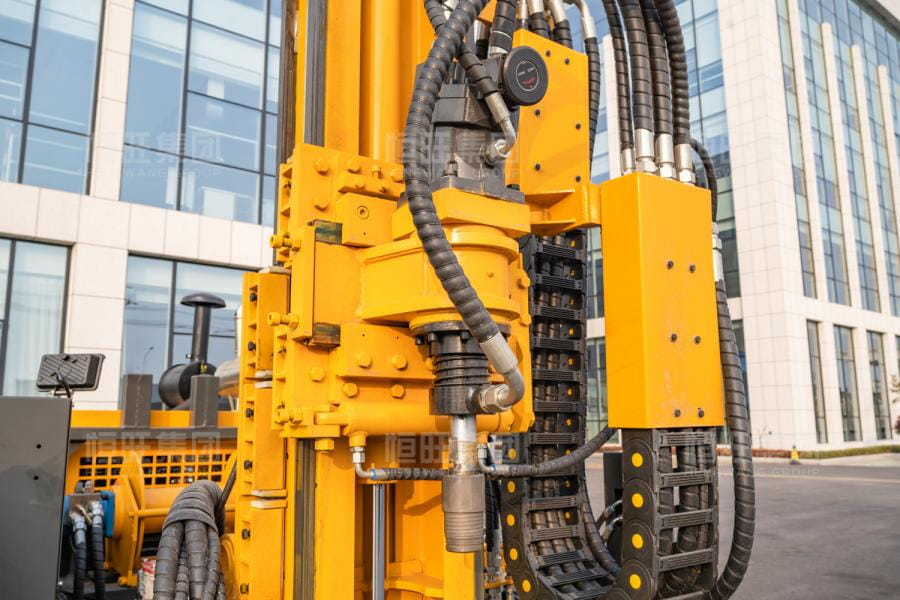

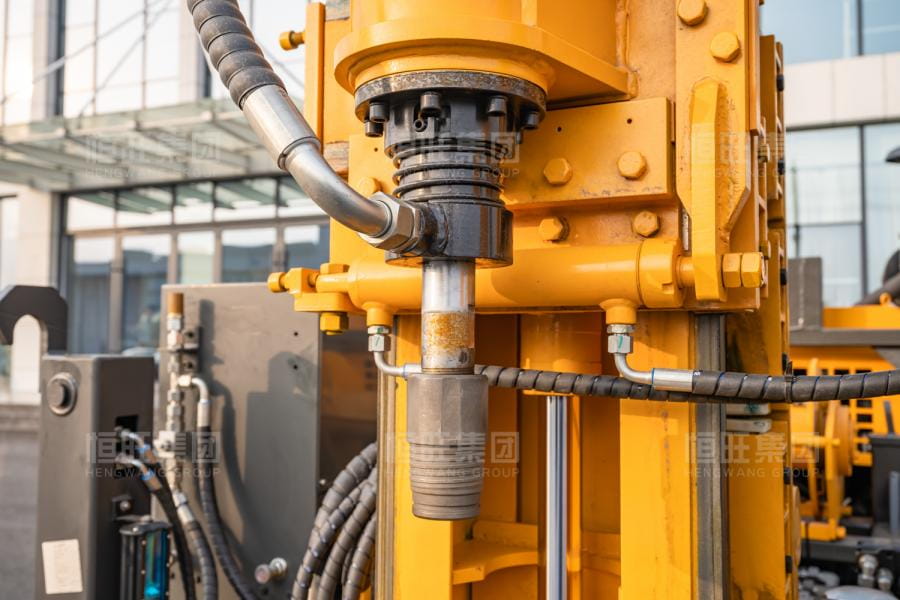

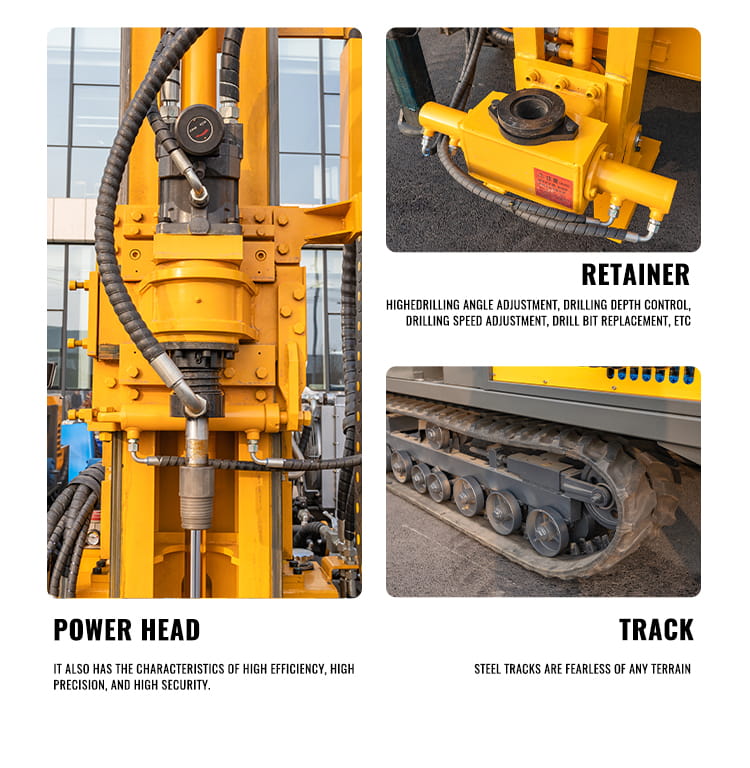

Power head
Maximum torque450-1000(N.M)
Maximum rotary speed1300(RPM)
Feeding stroke1900(MM)

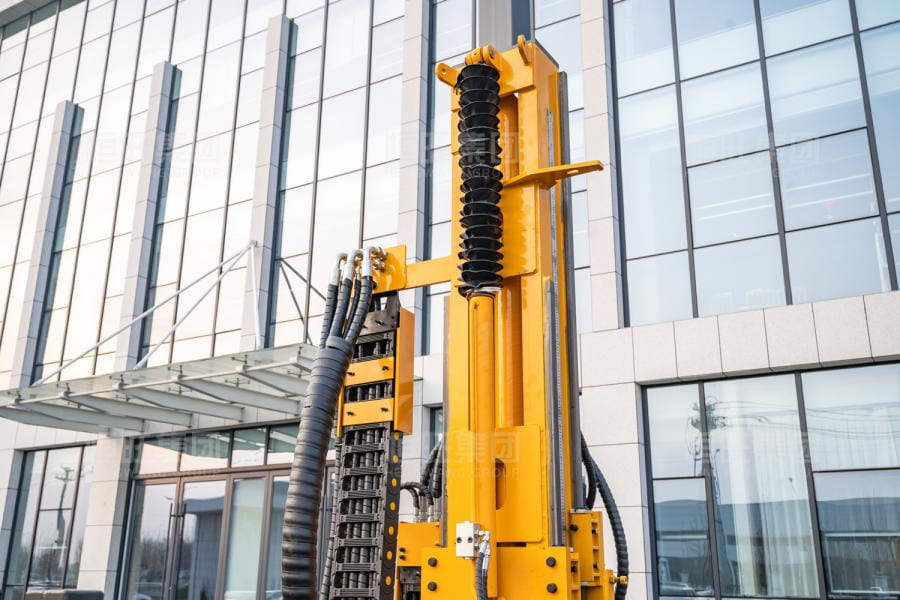

Drilling tower
TypeGround contact integrated tower
Drilling angle45-90(°)
Lifting force16(T)
Feeding force8(T)
Winch
Lifting force600(KG)
Rotary speed100-300(RPM)
Wire rope diameter6(MM)
Rope capacity600(M)
walk
typeManual + remote control
Walking speed3.5(KM/H)
Single machine climbing angle45(°)
hydraulic mud pump
mud pumpContains Bw-90 mud pump
flow30-90(L/min)
pressure4-7(MPA)
Shipping dimensions4000*2000*1800(MM)
Total Weight4.5/5.5(T)


To get the latest parameters and quotations, please submit the form.


Get Quote Now
Submit the form, our sales team will contact you within 24 hours
Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
