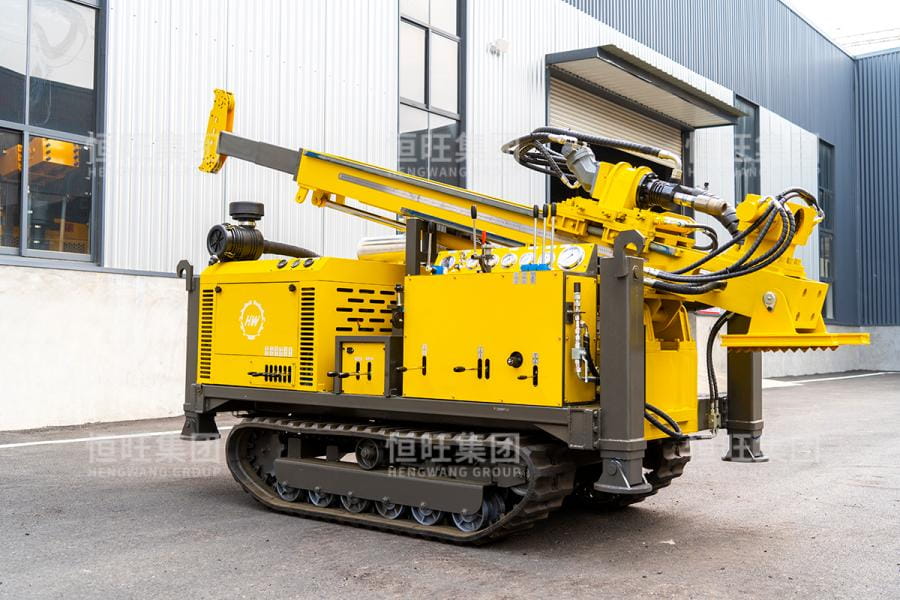

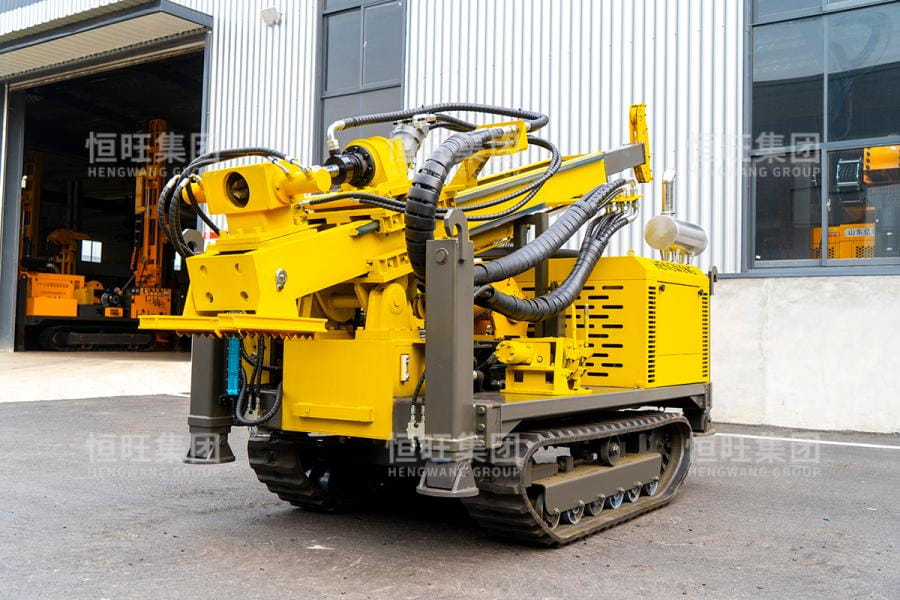

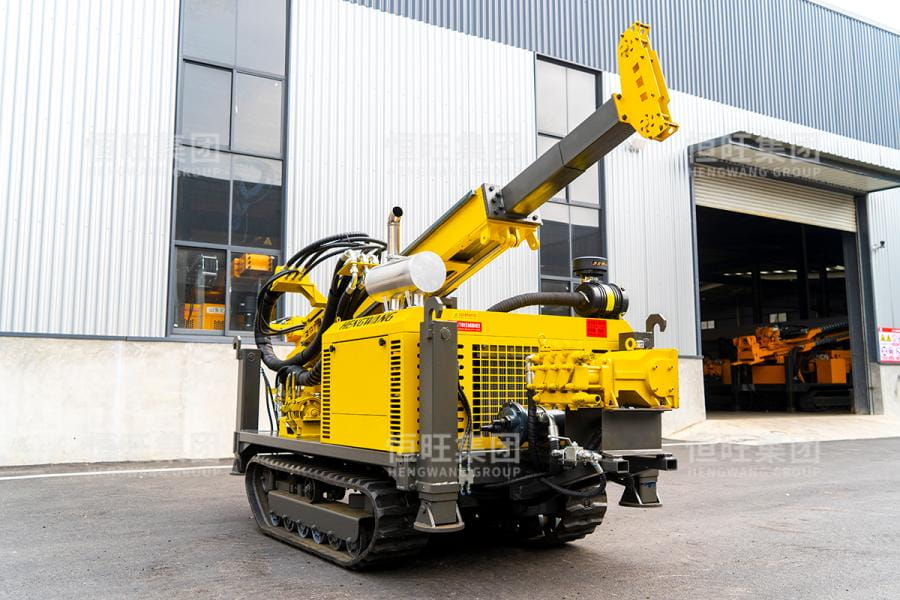

HW-200XL Fully Hydraulic Rope Coring Drilling Rig

HW-200XL Fully Hydraulic Rope Coring Drilling Rig

Fully hydraulic rope coring drill rig
Direct from Factory One-Year Warranty CE · EPA Certified

Drilling depth:100-200-300(m)
Rated speed:2400(rpm)
Maximum torque:200-400(N·M)

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW-200XL Fully Hydraulic Rope Coring Drilling Rig" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

HW-200XL Fully Hydraulic Rope Coring Drilling Rig

HW-200XL Fully Hydraulic Rope Coring Drilling Rig

Factory Direct | One-year Warranty

Drilling depth:100-200-300(m) | Maximum torque:200-400(N·M) | Rated speed:2400(rpm)

Product Advantages

1. It can be widely used in exploration, gold mine, iron ore, coal, lithium mine and other scenarios.

2. Easy to install, no need to lift the drill pipe during the rope coring process.

3. Thin-walled drilling tools with high coring efficiency.

Parameter List

modelHW-YDX-200XL
Drilling ability
caliberHTW-NTW-BTW
depth100-200-300(M)

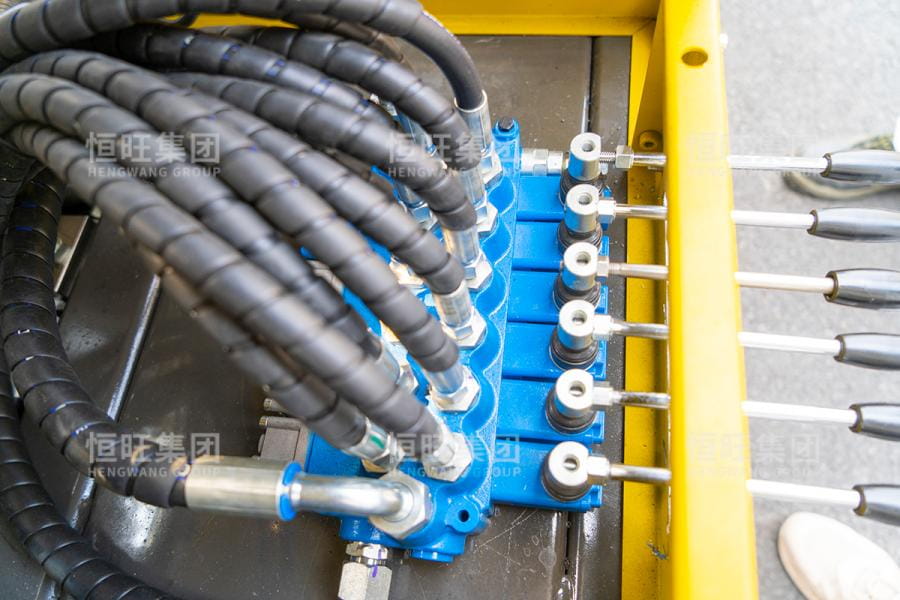

Hydraulic system
preset pressure21(MPA)
Rated flow78(L/min)
Cooling typeWater cooling
Engine
BrandYuchai
TypeTurbocharged
Rated rotary speed2400(RPM)
Rated power58KW

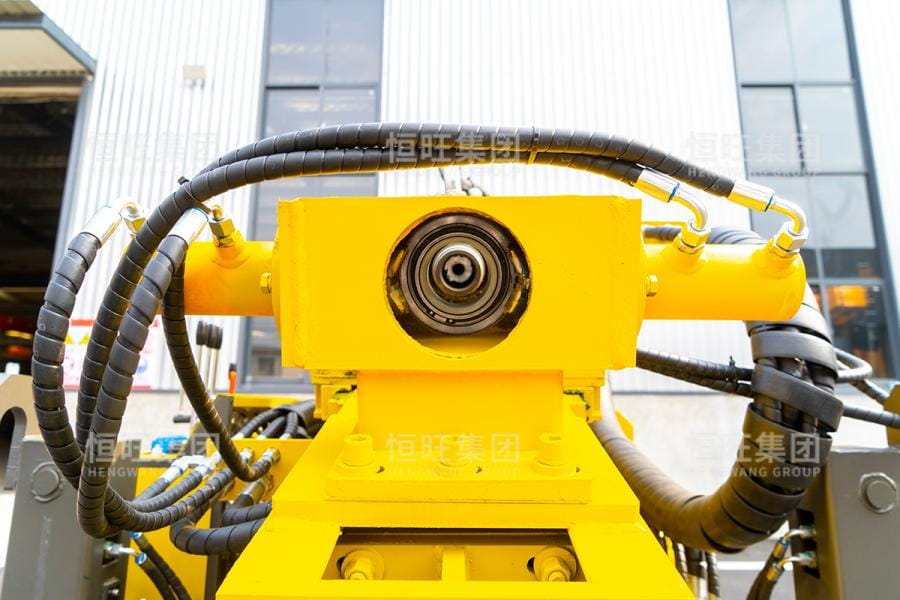

Power head
Maximum torque200-400(N·M)
Maximum rotary speed1300(RPM)
Feeding stroke1900(MM)

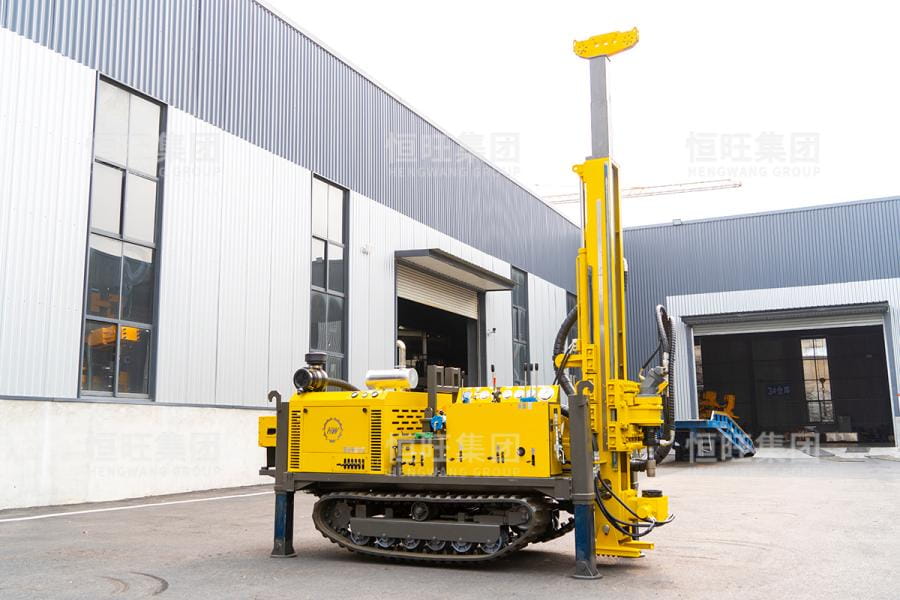

Drilling tower
TypeGround contact integrated tower
Drilling angle45-90(° )
Lifting force10(T)
Feeding force5(T)
Winch
Lifting force500(KG)
Rotary speed100-240(RPM)
Wire rope diameter6(MM)
Rope capacity200(M)
walk
typeManual + remote control
Walking speed2.5(KM/H)
Single machine climbing angle45(°)

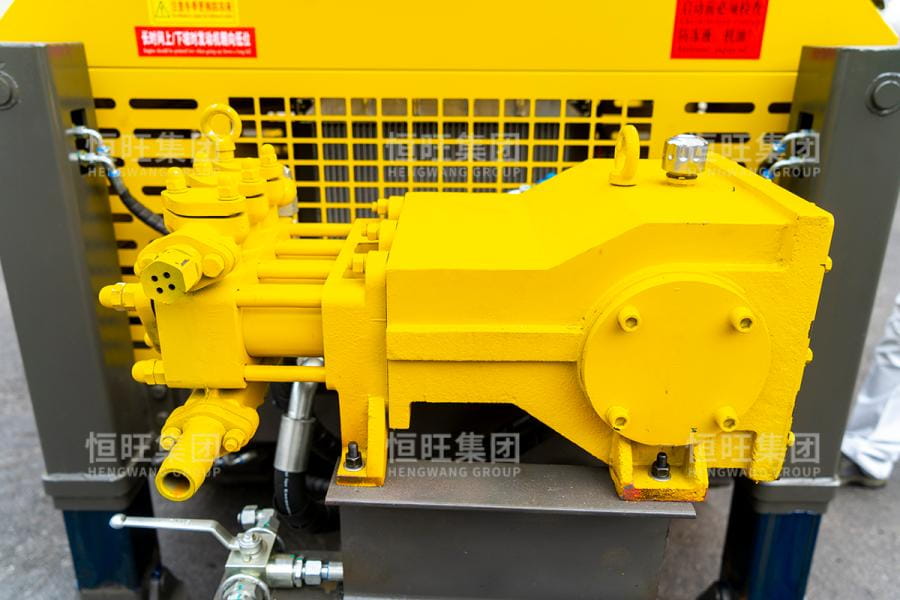

hydraulic mud pump
mud pumpContains Bw-90 mud pump
flow30-90(L/min)
pressure4-7(MPA)
Shipping dimensions3000*1500*1800(MM)
Total Weight3.6(T)
Get Quote Now
Submit the form, our sales team will contact you within 24 hours
Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
