Track dimensions：5200×3330mm
Gearbox torque：8000N.m
Drilling diameter：60-300mm
Gearbox torque：8000N.m
Drilling diameter：60-300mm
| Parameter Name | Specifications / Data | Unit |
| Chassis | 400 Excavator chassis | |
| Track | Steel track | |
| Track dimensions | 5200×3330 | mm |
| Track shoe width | 600 | mm |
| Pitch | 216 | mm |
| Upper roller | 180∘ rotation with dual-motor drive, 21-inch slew ring | |
| Lower roller | 360∘ three-stage 25-ton gearbox * 2 | |
| Boom | Single arm, four section | |
| Power head model | 350 Dual hydraulic power head | |
| Gearbox torque | 8000 | N.m |
| Travel motor | TM60 | |

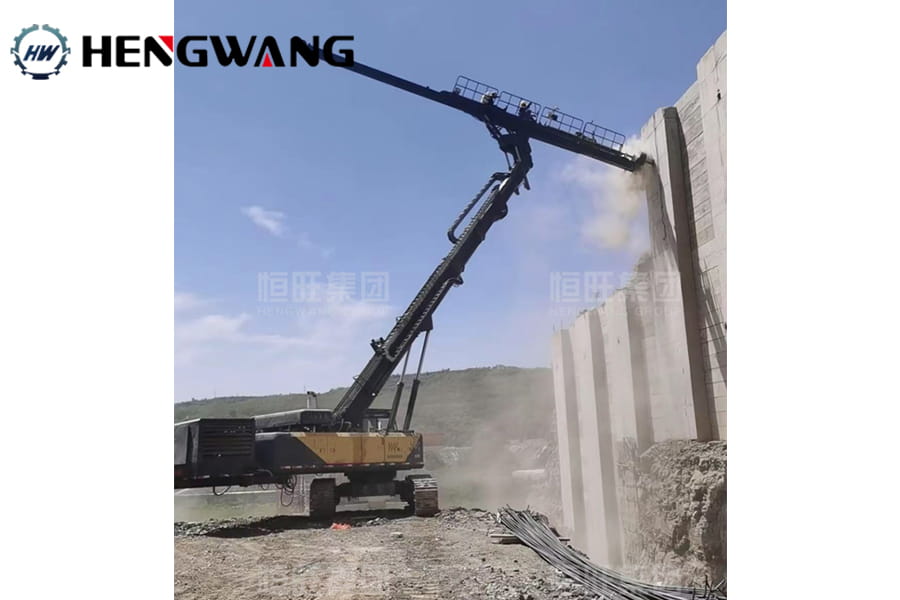

| Drilling angle | Capable of drilling horizontal holes, inclined holes, and vertical holes | |
| Hydraulic pump | Kawasaki K5V140DTP | |
| Multi-way valve | SDP Series | |
| Operation | Italian-imported pilot joystick with lower-mounted operation | |
| Travel mode | Pilot-operated foot pedal + push rod | |
| Hydraulic pressure | 20/31.5 | MPa |
| Drilling diameter | 60-300 | mm |
| Feed chain | 9 | m |
| Lifting force | 4500-9500 | N.m |
| Depth | 0-50 | m |
| Power | Yuchai 191kw | kw |
| Hydraulic oil cooler | Dedicated radiator for hydraulic motor | |
| Hydraulic oil tank | Oversized and specially customized | |
| Gradeability | 40% | |
| Travel speed | 3.1 / 2 | km/h |
| Cab | Luxury fully enclosed | |
| Operating weight | 36.5 | T |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
