Track dimensions：5000×3250mm
Gearbox torque：8000N.m
Drilling diameter：50-300mm
Gearbox torque：8000N.m
Drilling diameter：50-300mm
| Parameter Name | Specifications / Data | Unit |

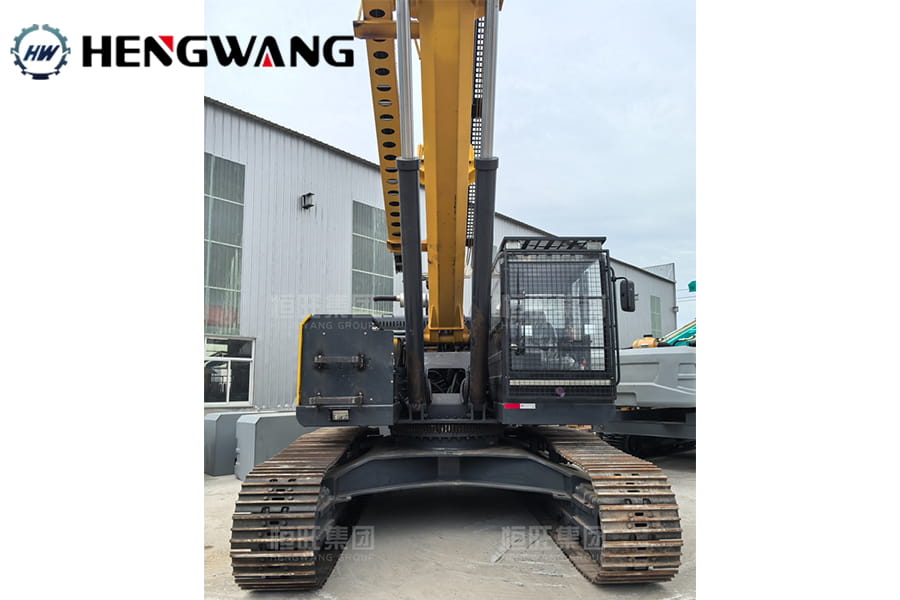

| Chassis | 360 Excavator chassis | |

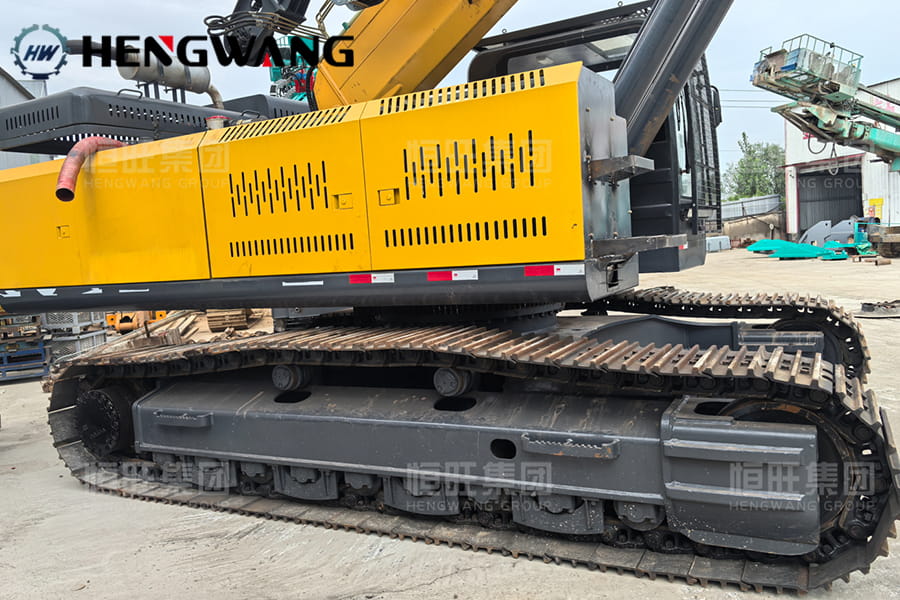

| Track | Steel track | |
| Track dimensions | 5000×3250 | mm |
| Track shoe width | 600 | mm |
| Pitch | 216 | mm |
| Upper roller | 180∘ rotation with dual-motor drive, 21-inch slew ring | |
| Lower roller | 360∘ three-stage 25-ton gearbox | |

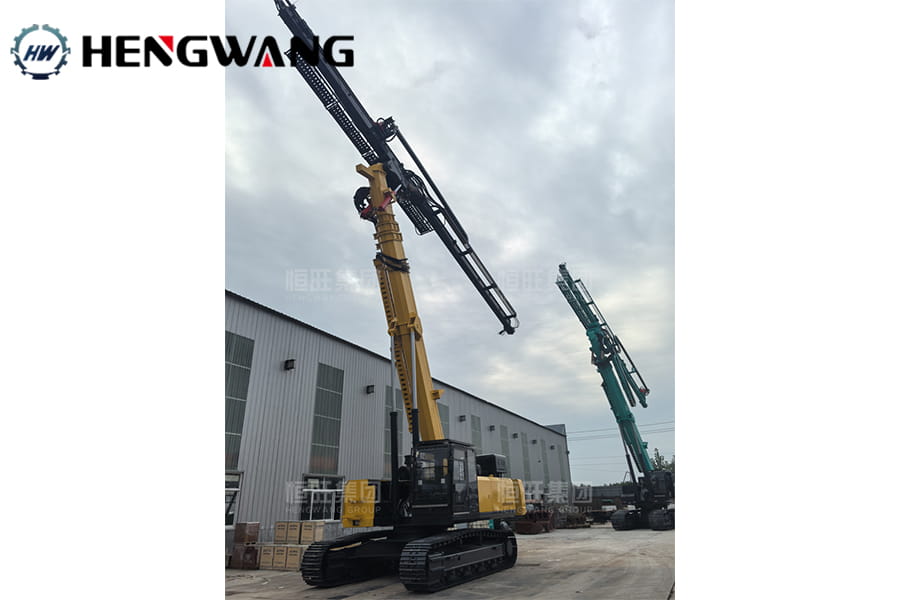

| Boom | Single arm, three section | |

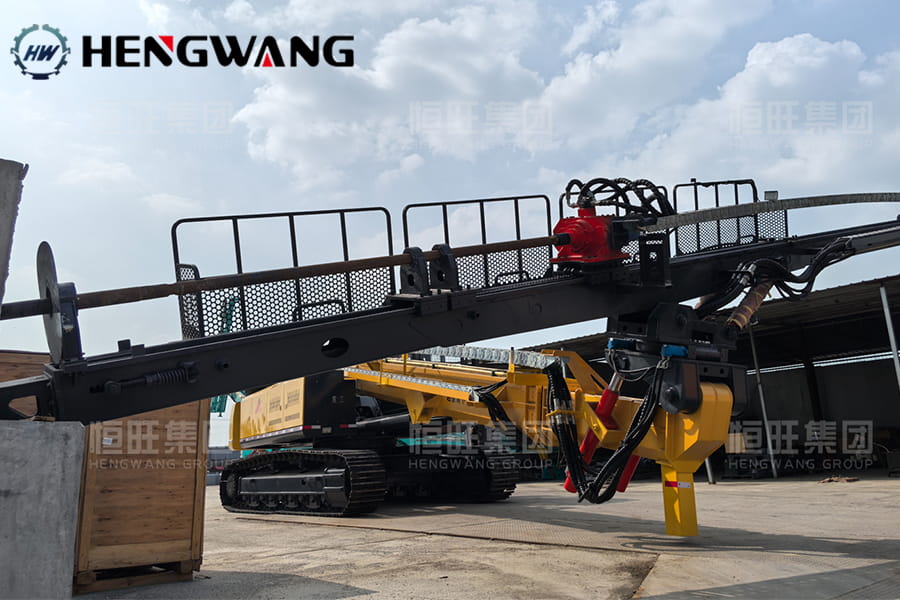

| Power head model | Dual hydraulic power head | |
| Gearbox torque | 8000 | N.m |
| Travel motor | TM60 | |
| Drilling angle | Capable of drilling horizontal holes, inclined holes, and vertical holes | |
| Hydraulic pump | Kawasaki K3V112 | |
| Multi-way valve | High-pressure drilling SDP hydraulic control valve | |
| Operation | Italian-imported pilot joystick with lower-mounted operation | |
| Travel mode | Foot pedal + push rod | |

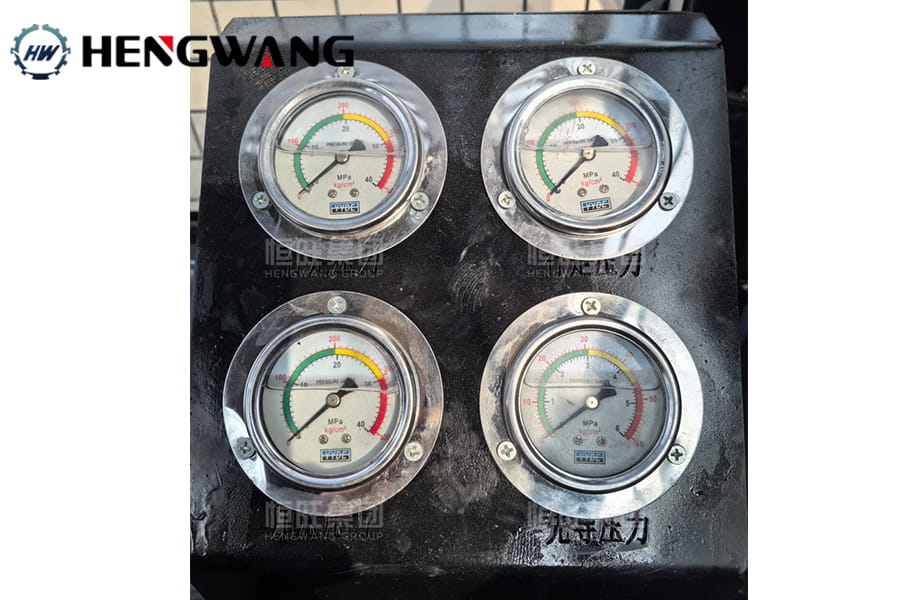

| Hydraulic pressure | 31.5 | MPa |
| Drilling diameter | 50-300 | mm |
| Feed chain | 9 | m |
| Lifting force | 6000 | N.m |
| Depth | 0-50 | m |
| Power | Yuchai YC6J190-T301 | kW |
| Hydraulic oil cooler | Oversized dual-fan dedicated radiator | |
| Hydraulic oil tank | Oversized and specially customized | |
| Gradeability | 30% | |
| Travel speed | 3.2 / 1.8 | km/h |
| Cab | Luxury fully enclosed | |
| Operating weight | 34 | T |
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
