Exciting force: 13Kn
Body Length: 4-16m
Working Depth: 260mm
In-house production with a dedicated bulldozer line and international certifications that protect your investment.

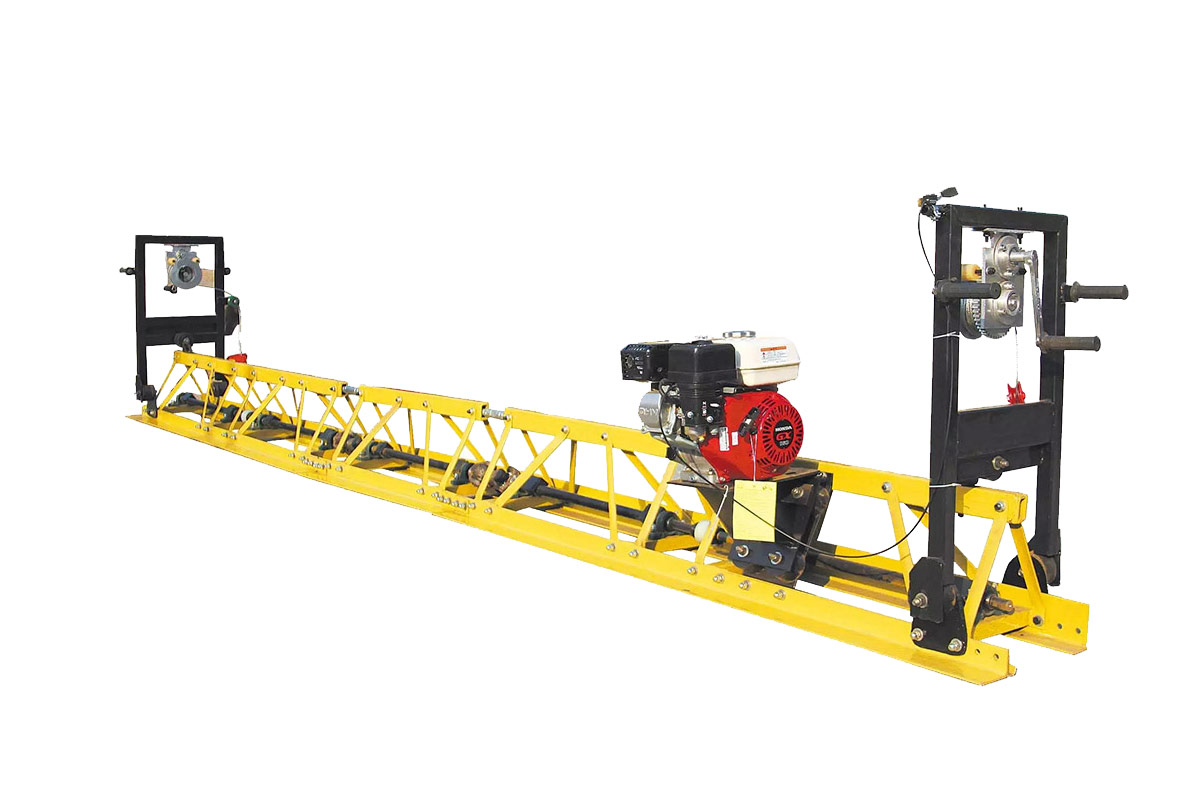

Every "HWQ-9.0 Concrete Truss Screed" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.
Widely used in concrete floor, pavement, pulping, compaction, leveling work;
It is an excellent equipment for building bridges, roads, workshops, plazas and docks;
Use the original honda gasoline engine or famous motor;
The brand guarantees quality, superior performance and high work efficiency;
The main bearing adopts the international brand fyh high-precision with the radial ball bearing to ensure the overall performance of the equipment is intact;
The machine construction length is adjustable, easy assembly and disassembly ;
With arch adjustment function, construction is more convenient.
Model | HWQ-9.0 |
Power | 9.0hp |
Vibration frequency | 75hz |
Exciting force | 13kn/2000mm |
Body length | 7-8.5m |
Construction depth | 260mm |
Single segment weight | 8KG/2000mm; 36KG/1000mm |
