Weight: 90Kg
Rated Power: 5.5Hp
Impact Force: 15N.M
In-house production with a dedicated bulldozer line and international certifications that protect your investment.

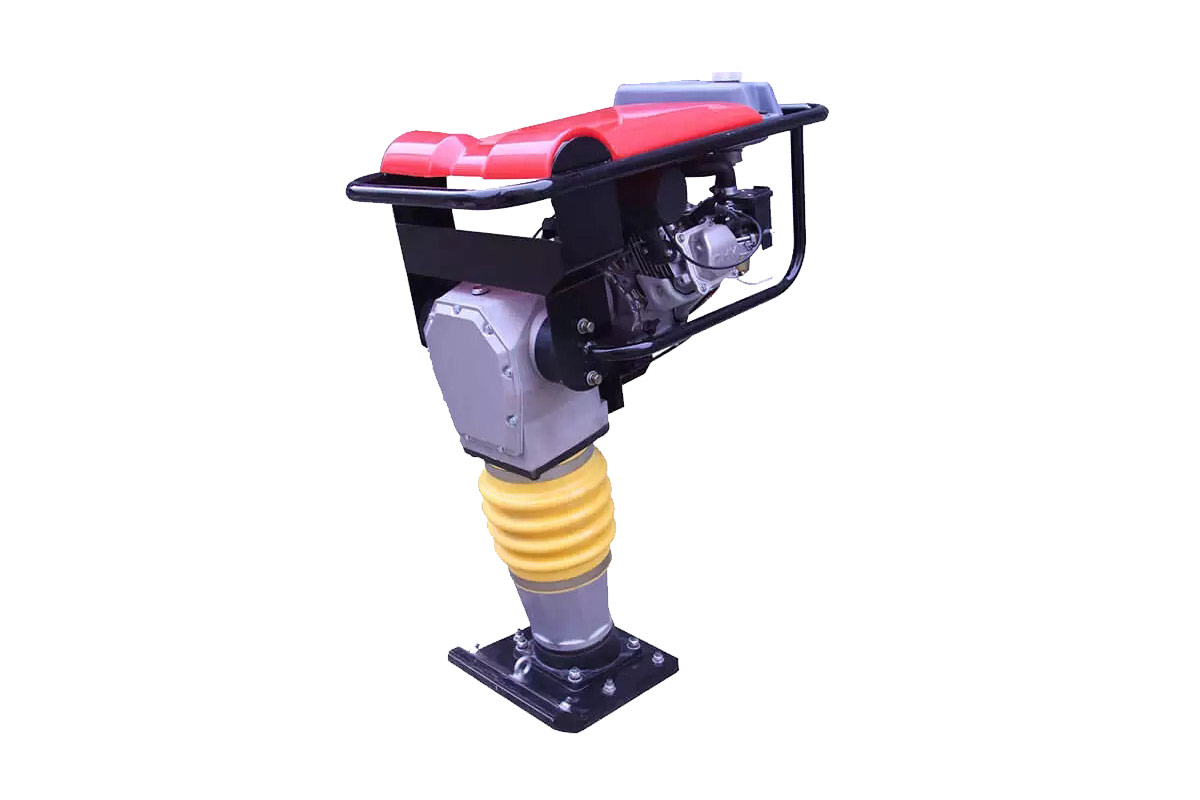

Every "HW-90 Tamping Rammer" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.
1. heavy duty throttle control provides more reliable and longer service.
2. integrated fuel valve provides for easy starting.
3. heavy shock mount system to reduce hand-arm vibration and improve operator comfort.
4. special protective frame for engine,prevents any possible damage on tough jobsite.
Model | HW-90 |
Engine | Honda GX160 |
Engine power (HP) | 5.5HP |
Impact force (N.M) | 15 |
Jumping height (mm) | 40-65 |
Advancing speed (M/min) | 0-25 |
Material | cast-iron |
Plate size (mm) | 300*330 |
Weight (Kg) | 90 |
Dimension (mm) | 600*600*1000 |
