M series Skid Steer Loader

M series Skid Steer Loader

Skid Steer Loader
Direct from Factory One-Year Warranty CE · EPA Certified

Operating Load: 300-950Kg
Bucket Capacity: 0.2-0.5cbm
Rated Power: 18.4-55kw

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "M series Skid Steer Loader" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

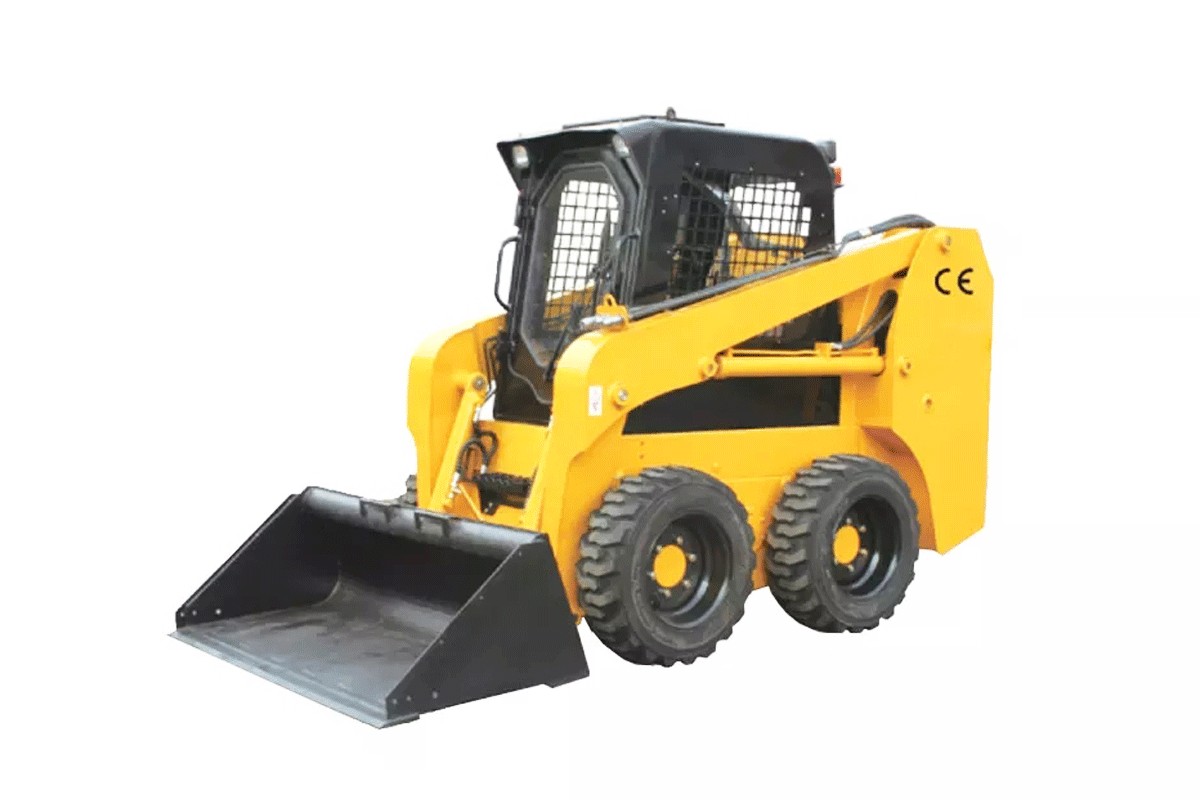

M series Skid Steer Loader


Model/ Technical parameterHW25MHW25MHW35MHW45MHW60MHW65M
Operating load (kg)300450500700850950
Max Speed (km/h)91010121212
Rated flux (L/min)37506062.57575
Tire (track) model23×8.5-1527×8.5-158.5-1510-16.512-16.512-16.5
Rated power (Kw)18.42229.5374555
Fuel tank capacity (L)254560707080
self weight bucket (kg)150020002300270028003000
Bucket capacity (m3)0.20.30.30.40.40.5
Overall operating height (mm)312634303300398041304130
Dumping angle at maximum height (° )36434040°4040
Dumping height (mm)188219712050238024002400
Dumping reach (mm)458477790750750750

● This series features a sleek design, narrow host width, and excellent maneuverability. It utilizes a luffing working arm to ensure optimal load-bearing capacity within a smaller width.

● Among all sliding machine products, this series boasts the smallest main machine width, meeting the demands of specialized operations. Additionally, the M series offers enhanced ultra-low height products, with the lowest height measuring only 1.4 meters.

● The M series products incorporate high-quality hydraulic components sourced from Europe and America. The control system utilizes a pilot servo system, delivering precise and rapid responsiveness. It represents the ideal option for operations in confined spaces.

Inquire now for the best price.

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.

Need a M series Skid Steer Loader?

Inquire now to get the best price and XL or LGP configuration options for your terrain.
