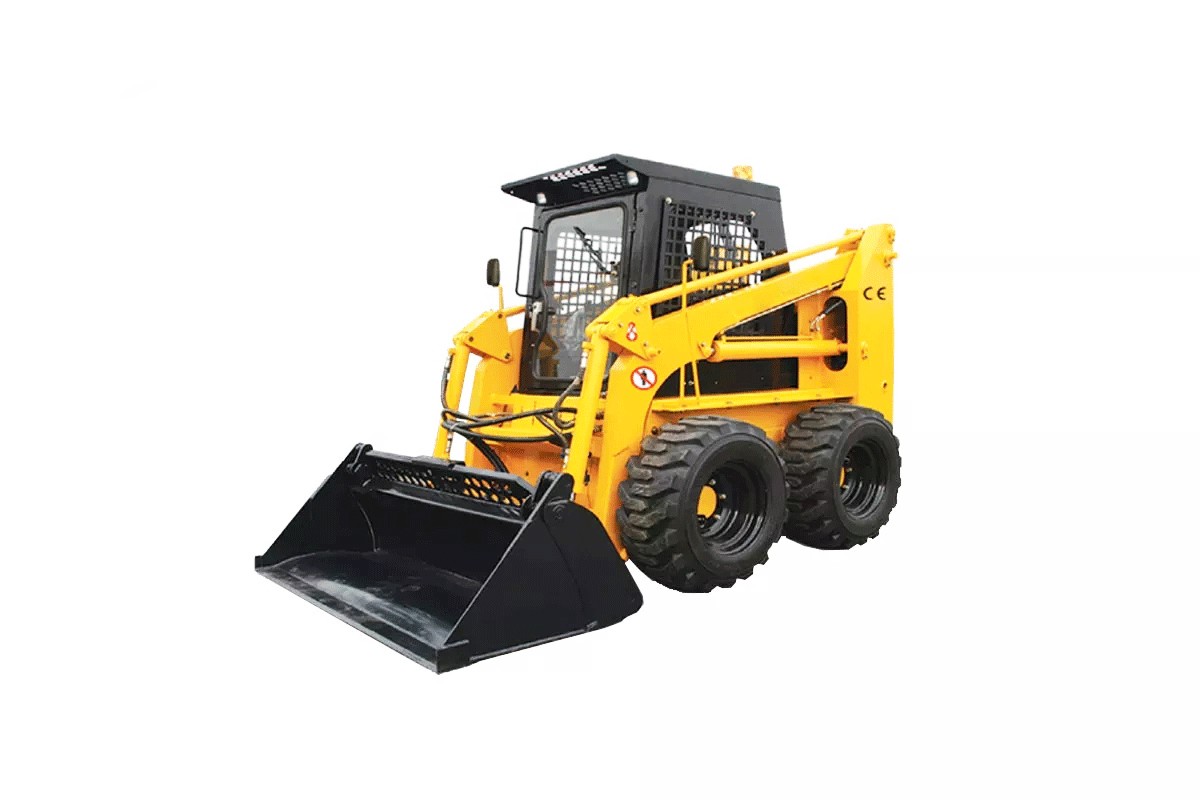

L series Skid Steer Loader

L series Skid Steer Loader

Skid Steer Loader
Direct from Factory One-Year Warranty CE · EPA Certified

Operating Load: 700-850 Kg
Bucket Capacity: 0.4-0.45 cbm
Rated Power: 37-45 kw

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "L series Skid Steer Loader" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

L series Skid Steer Loader


               Model                HW45L                HW60L
Operating load (kg)700850
Max Speed (km/h)1212
Rated flux (L/min)62.575
Tire (track) model10-16.512-16.5
Rated power (Kw)3745
Fuel tank capacity (L)6060
self weight bucket (kg)26003000
Bucket capacity (m3)0.40.45
Overall operating height (mm)36703690
Height to bucket hinge pin (mm)29002920
height to top of cab (mm)20302050
Height to bottom of level bucket (mm)27332753
Overall length ithout bucket (mm)24502630
overall length with bucket (mm)32003380

L series Skid Steer Loader:


● The machine features a mechanical leveling system in its body design. It incorporates a tie rod and a rocker arm above the working arm, ensuring the bucket remains balanced during the machine's operation.

● With a focus on lightweight design, the machine weighs less than 3000kg, enhancing its overall efficiency.

Inquire now for the best price.

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.

Need a L series Skid Steer Loader?

Inquire now to get the best price and XL or LGP configuration options for your terrain.
