C series Skid Steer Loader

C series Skid Steer Loader

Skid Steer Loader
Direct from Factory One-Year Warranty CE · EPA Certified

Operating Load: 1050-1200Kg
Bucket Capacity: 0.5-0.55cbm
Rated Power: 55-74kw

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "C series Skid Steer Loader" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

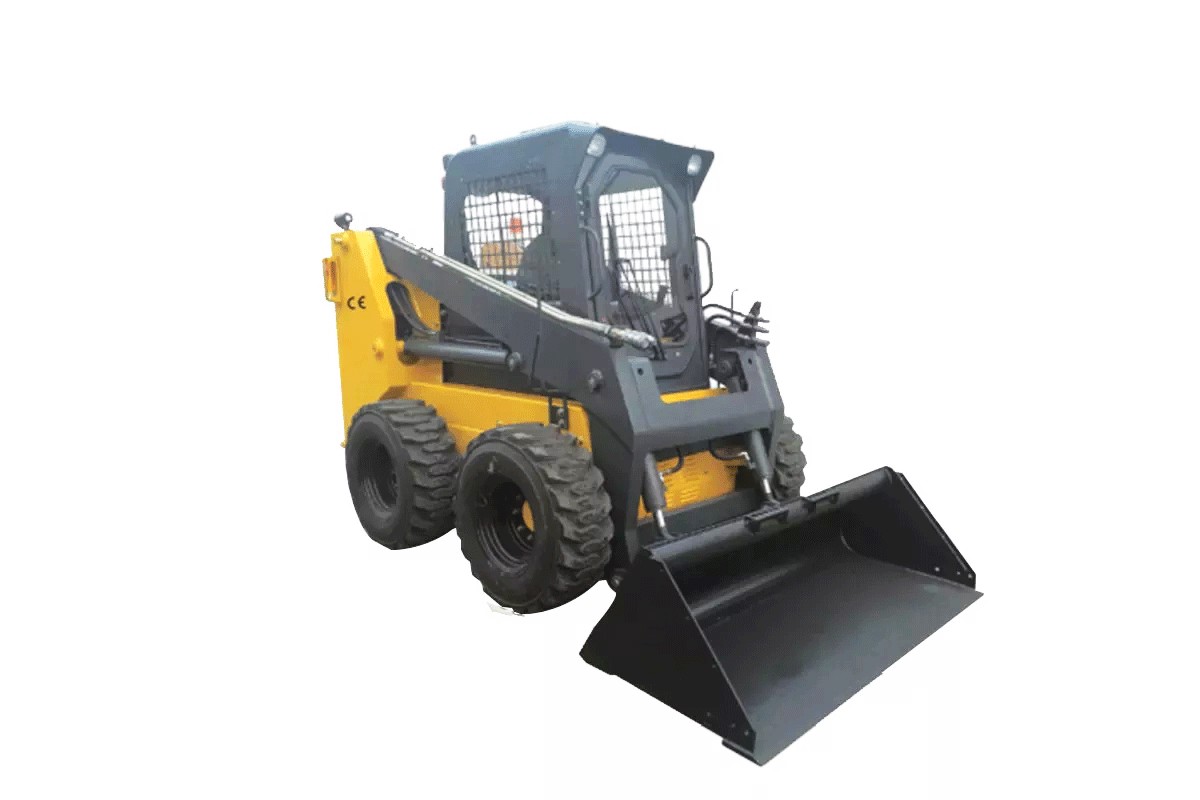

C series Skid Steer Loader


ModelHW75CHW100C
Operating load (kg)10501200
Max Speed (km/h)120.67
Rated flux (L/min)7575
High Flow Flux (L/min)120140
Tire (track) model12-16.512-16.5
Rated power (Kw)5574
Fuel tank capacity (L)7590
self weight bucket (Kg)35003550
Bucket capacity (m3)0.50.55
Overall operating height (mm)40704070
Height to bucket hinge pin (mm)31503150
height to top of cab (mm)21602160
Height to bottom of level bucket (mm)29832983
Overall length ithout bucket (mm)28802880
overall length with bucket (mm)35803580

C series Skid Steer Loader:


● The chassis is designed to be reinforced as a whole, with a total weight exceeding 4000kg. The boom structure possesses excellent load-bearing capacity, and the bucket cylinder is positioned beneath the lateral ribs of the boom, ensuring effective protection. The machine's dumping height surpasses that of similar products.

● Fitted with a high-powered diesel engine, all hydraulic components utilize European and American products. The machine delivers robust power, high operational efficiency, and is well-suited for heavy-duty tasks.

● This machine features an ultra-low temperature starting system, capable of operating in environments as cold as -30℃. Additionally, it is equipped with an oil-water radiator boasting a large heat dissipation area, ensuring uninterrupted oil flow even during high summer temperatures.

● The C series model offers a high flow system, providing a remarkable 140L/min flow rate.

Inquire now for the best price.

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
