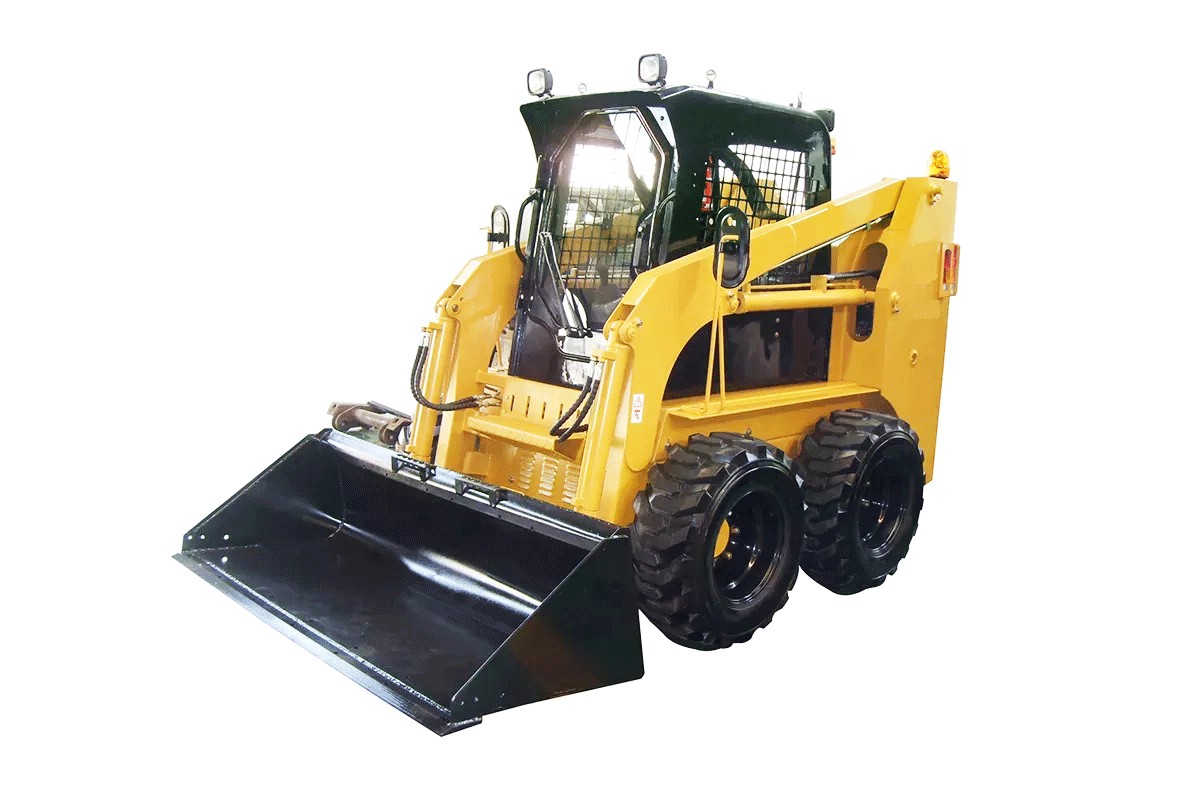

HW-JC75 Skid Steer Loader

HW-JC75 Skid Steer Loader

Skid Steer Loader
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Load: 1050Kg
Bucket Capacity: 0.55-0.6cbm
Rated Power: 55kw

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW-JC75 Skid Steer Loader" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

HW-JC75 Skid Steer Loader

Specifications


Rated operating capacity (kg)

1050

Tipping load (kg)

2100

Bucket capacity (m3)

0.55-0.6

Operating weight (kg)

3500

Max. travel speed (km/h)

12

Hydraulic pump flow (L/min)

75/125

Fuel tank capacity (L)

60/90

Tires

12/16.5 NHS

Overall dimensions (mm)

3560×1900×2050

Dimensions


Height at maximum extension (mm)

4070

Height to bucket hinge pin (mm)

3150

Width with bucket (mm)

1900

Track width (mm)

1500

Wheelbase (mm)

1185

Ground clearance (mm)

260

Dump angle

40°

Dumping height (mm)

2450

Maximum reach (mm)

710

Rollback at ground

26°

Angle of departure

20°

Engine


Maker/Model

xinchai 498T

Net power

75hp/2500rpm

Type

4 Cylinder in-line, Water cooled, 4 stroke, Diesel engine

HW-JC75 Skid Steer Loader


The HW-JC75 Skid Steer Loader is a versatile and efficient equipment designed for various applications. With its unique wheel-type chassis and differential steering system, it offers exceptional maneuverability and control. Whether you refer to it as a skid steer loader, multi-purpose vehicle, or multi-purpose engineering machine, it excels in small job sites, uneven terrain, and frequent job changes.


This high-performance machine is well-suited for a wide range of tasks, including infrastructure construction, industrial applications, dock handling, urban streets, residential areas, farms, barns, airport runways, and more. It can also serve as excellent auxiliary equipment for large-scale construction projects.

Inquire now for the best price.

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.

Need a HW-JC75 Skid Steer Loader?

Inquire now to get the best price and XL or LGP configuration options for your terrain.
