Total weight (kg):31000
Engine:Yuchai 290hp
Overall dimensions (mm):12000 X 2550X 3950
In-house production with a dedicated bulldozer line and international certifications that protect your investment.

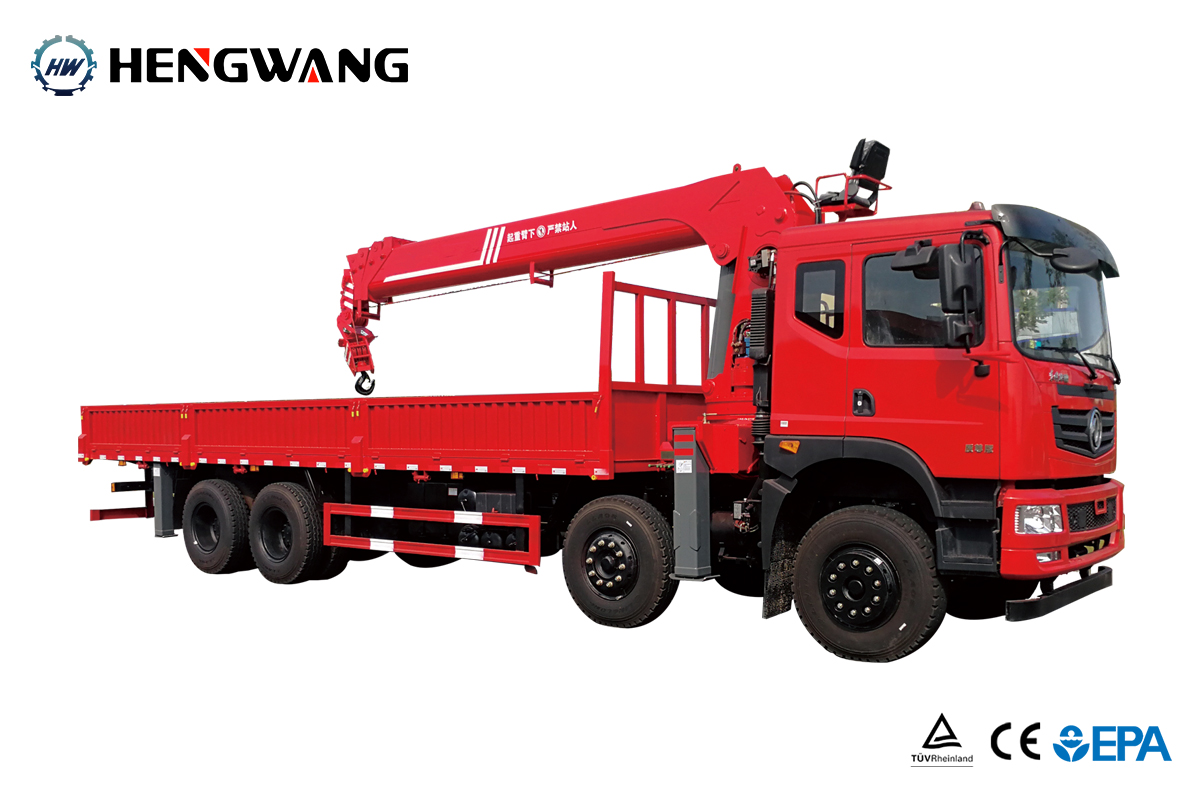

Every "16000KG Truck With Crane" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.
1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving.
2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.
3. Increase the slewing support of the external gear turntable, making the slewing action more stable and safer.
4. The slewing support is made of integral forging, tooth surface quenching, and raceway precision grinding, which makes the crane work more stable and has a longer service life.
| Chassis | Dongfeng T5 8X4 |
| Drive type | 8X4 |
| Engine | Yuchai 290hp |
| Gearbox | Nine gear with high low speed and synchronous |
| Front axle (t) | 5.5*2 |
| Rear axle (t) | 10*2 |
| Tire model | 11.00R20Wire Bead |
| Wheel base (mm) | 2150+4400+1350 |
| Crane boom type | Straight boom |
| Total weight (kg) | 31000 |
| Work height (m) | 20.5 |
| Number of outrigger | 4 pieces full |
| Outrigger type | H type |
| Winch | 14t hydraulic Winch |
| Cargo tank dimensions (mm) | 8400 X 2450 X 550 |
| Overall dimensions (mm) | 12000 X 2550X 3950 |
Quote now for the best price.
