Machine-locked rod rotary rigs

Machine-locked rod rotary rigs

Excavator modification
Direct from Factory One-Year Warranty CE · EPA Certified

Drilling Depth: 35m
Drilling Diameter: 1800mm
Rated Power: 153Kw

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "Machine-locked rod rotary rigs" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

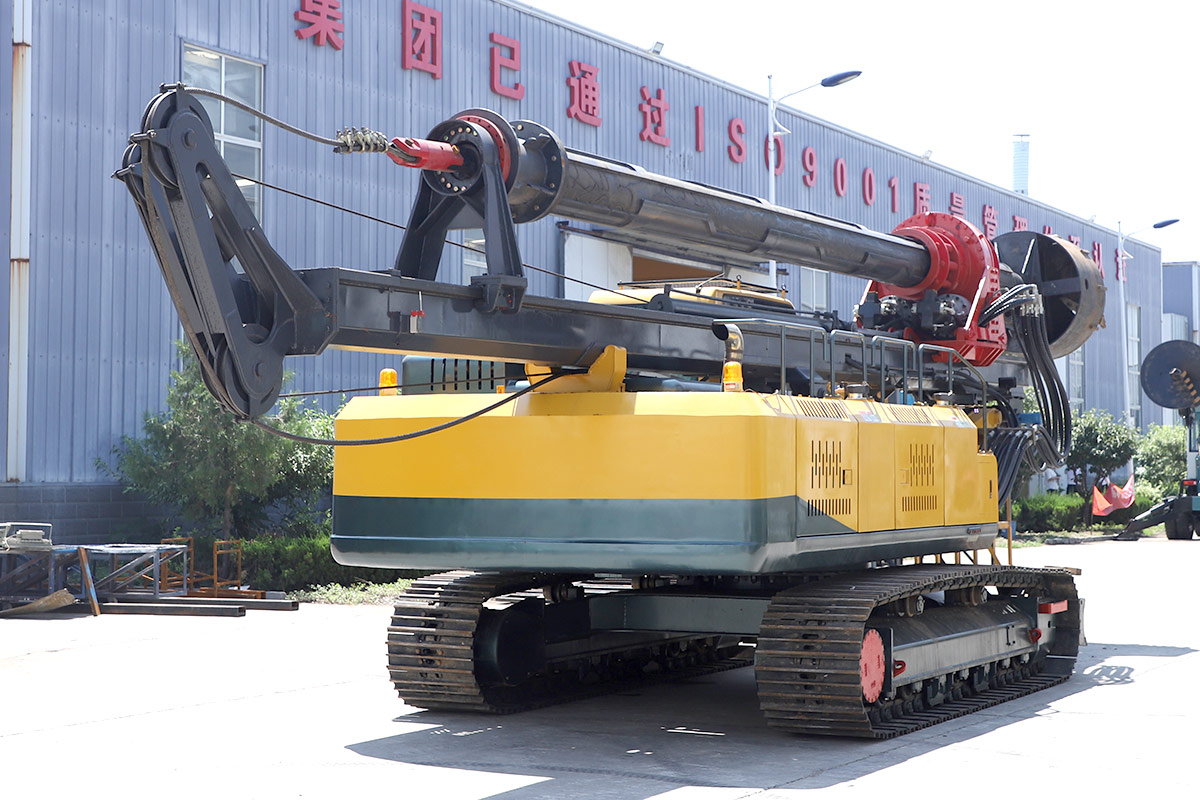

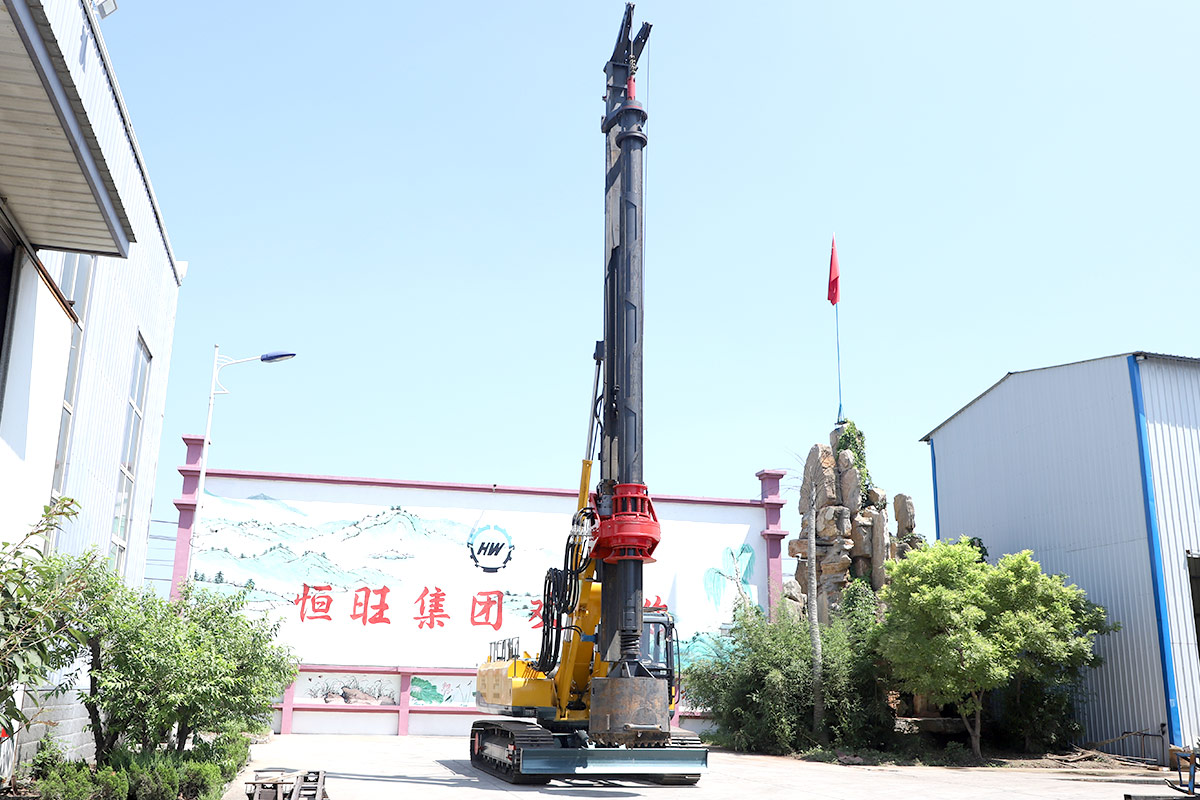

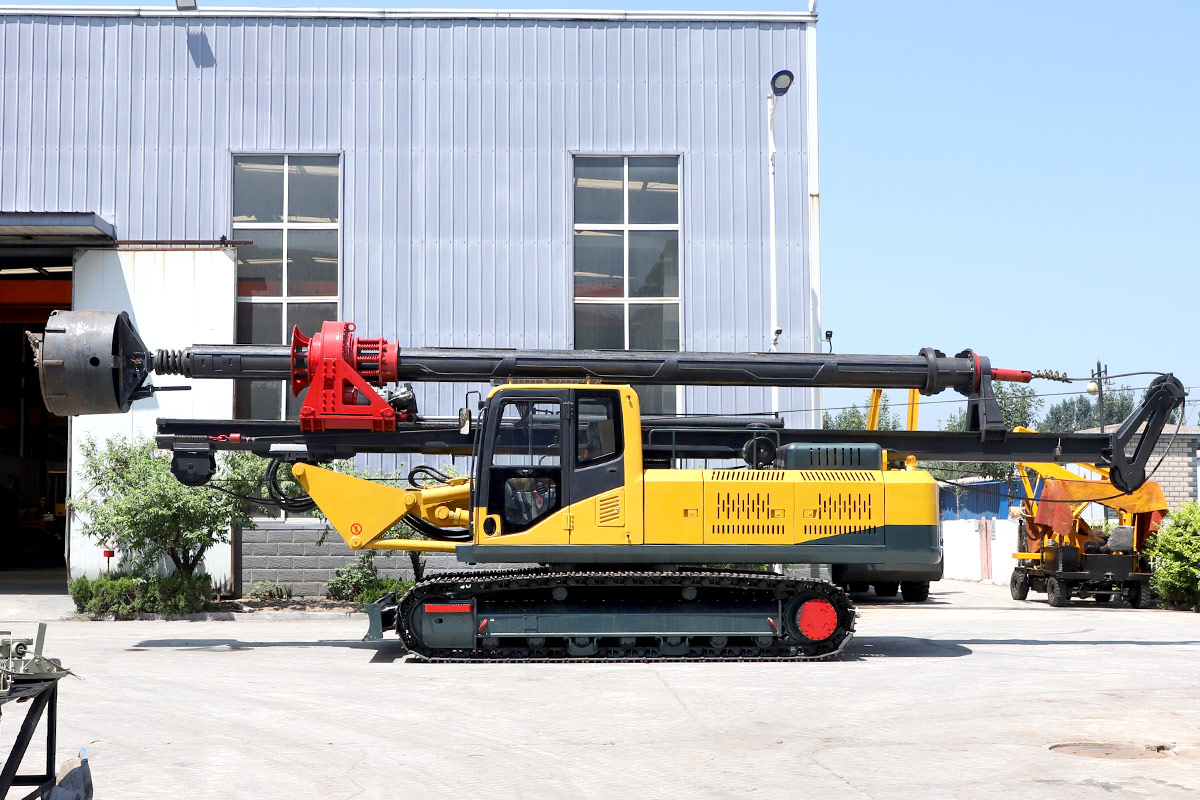

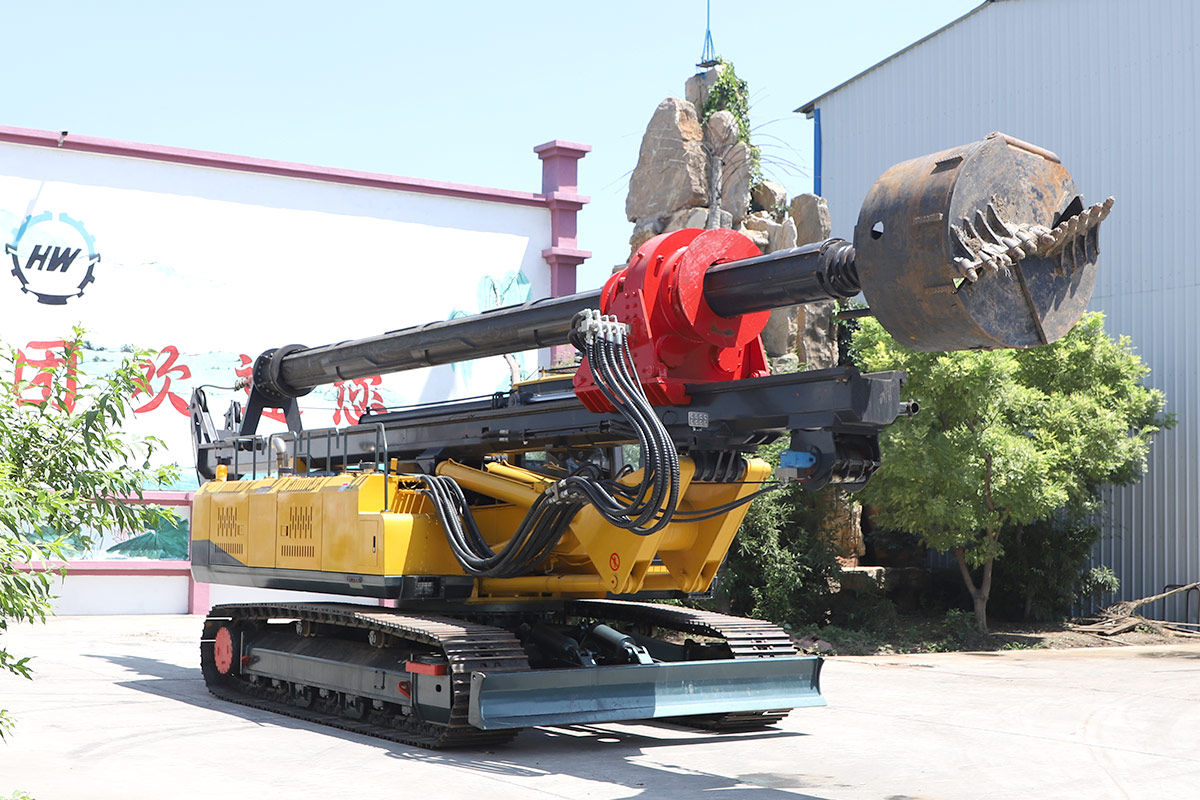

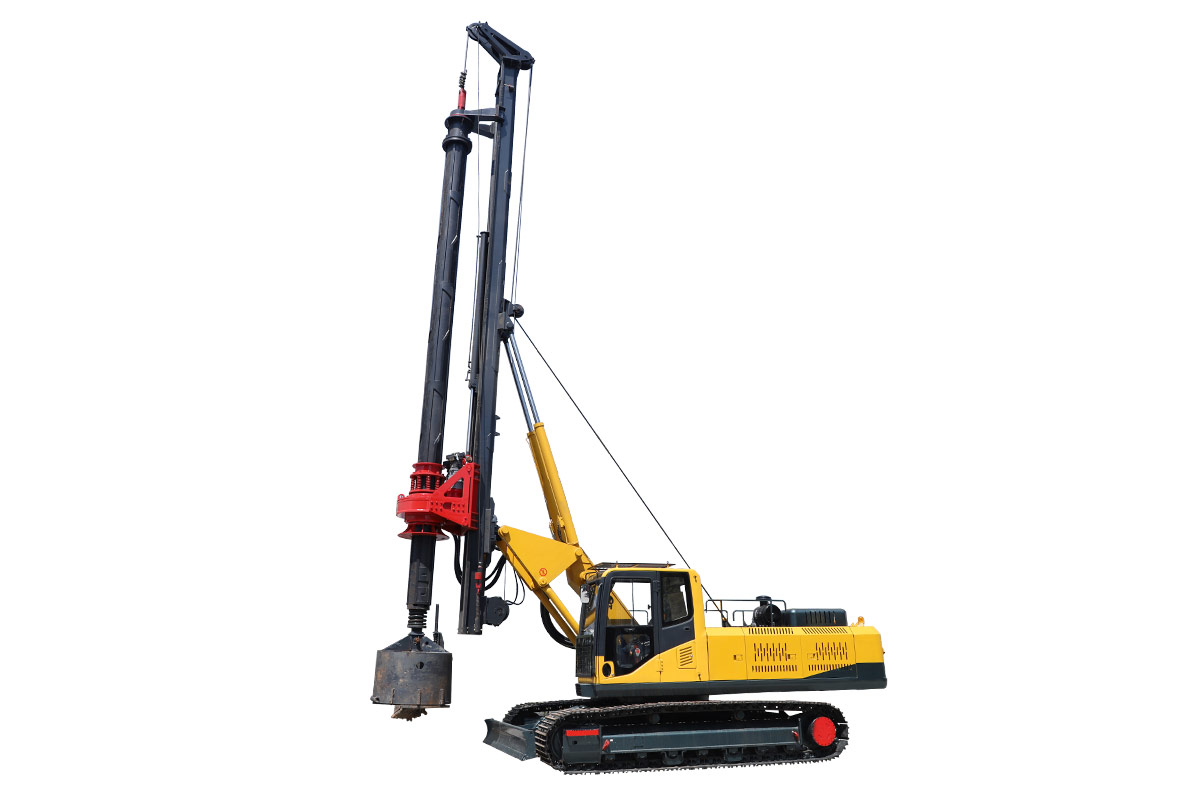

Machine-locked rod rotary rigs

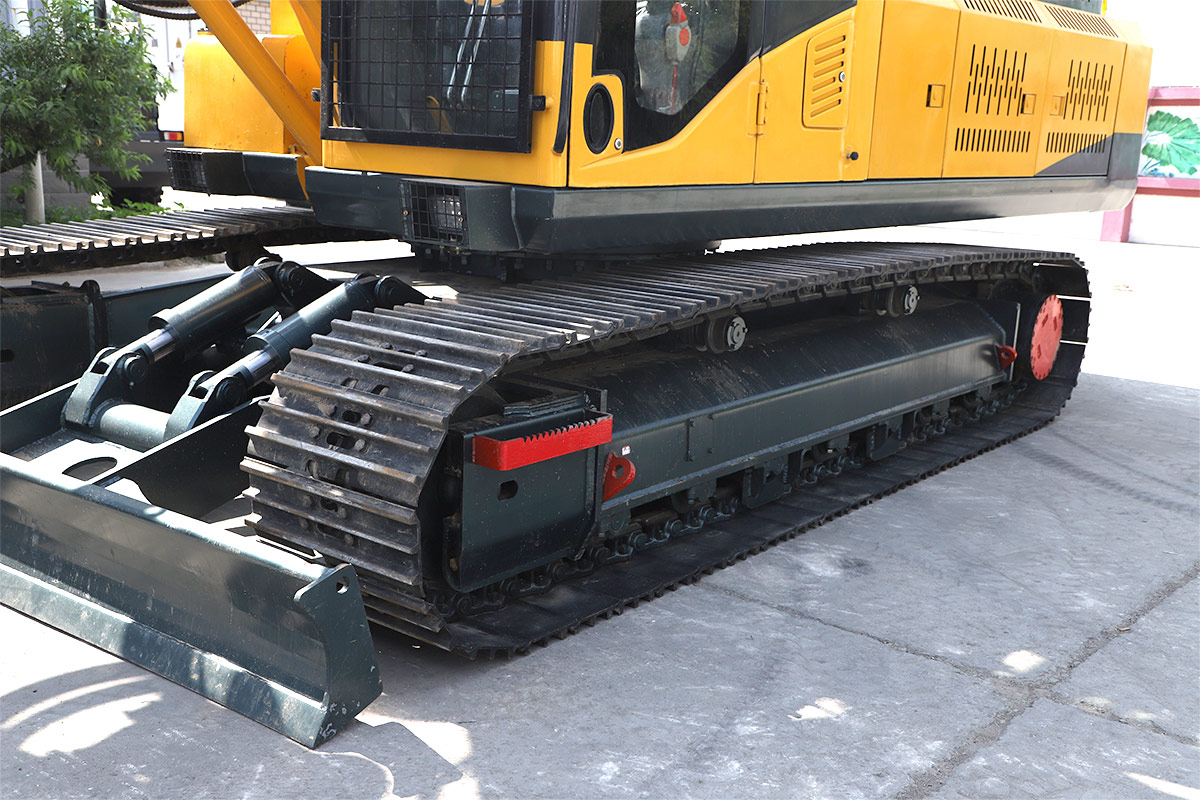

The machine lock bar rotary drilling rig uses hydraulic crawler-type telescopic chassis, self-lifting and folding collapsible drilling mast, telescopic drilling rod and many other technical applications. It is a construction machine suitable for hole formation in building foundation engineering. Mainly suitable for the construction of soil layers such as sandy soil, cohesive soil, silty soil, etc., it is widely used in various foundation constructions such as cast-in-situ piles, continuous walls, and foundation reinforcement.

Compared with ordinary rotary drilling rigs, machine-locked rod rotary drilling rigs have many objective advantages, such as the ability to drill through special grounds such as cement ground, hard sandy soil layers, and rock layers. It is suitable for large-scale engineering construction, buildings, high-speed, high-speed rail 3. Railway engineering construction. The machine construction runs fast, has high efficiency, good drilling quality, and is fuel-efficient and durable.


Parameters/Model

HWYDR350

Outsize

Working Size
(length×Width×Height)

m

8.8×2.8×12.8

Transport Size
(length×Width×Height)

m

12.8×3.0×3.65

Machine Weight

t

28

Max Drilling Diameter

mm

1500-1800

Max Drilling Depth

m

35

Engine

Brand

Cummins

Model

6BTAA5.9-C205

Rated Power

kw/rpm

153/2000

Hydraulic Flow

Woring Pressure

Main Pump

Mpa

30

Secondary Pump

Mpa

/

Max Flow

Main Pump

L/min

2×80

Secondary Pump

L/min

/

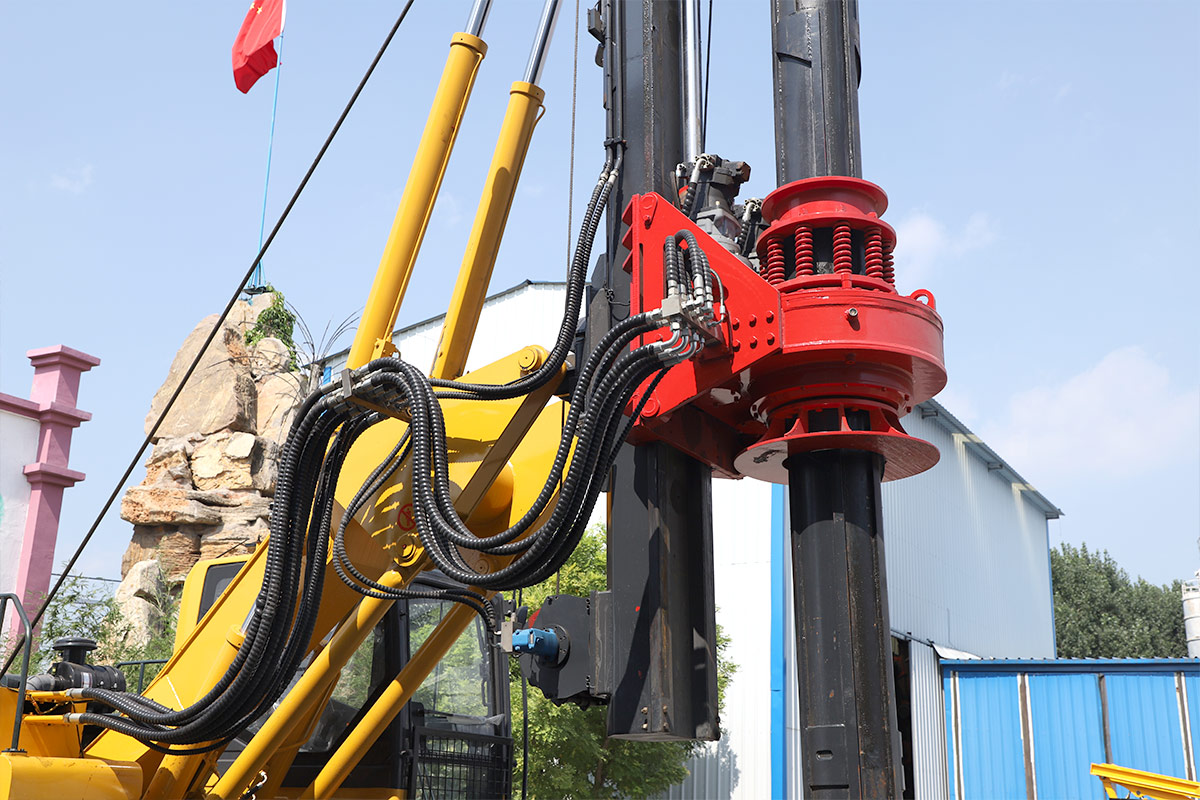

Power Head

Maximum Torque

Kn.m

130

Rotating Speed

rpm

5-60

Maximum Throwing Speed

rpm

60


Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
