Wheel Rotary Pile Driver

Wheel Rotary Pile Driver

Excavator modification
Direct from Factory One-Year Warranty CE · EPA Certified

Piling depth: 15m
Drill diameter: 400-2200mm
Engine power: 120-150Hp

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "Wheel Rotary Pile Driver" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

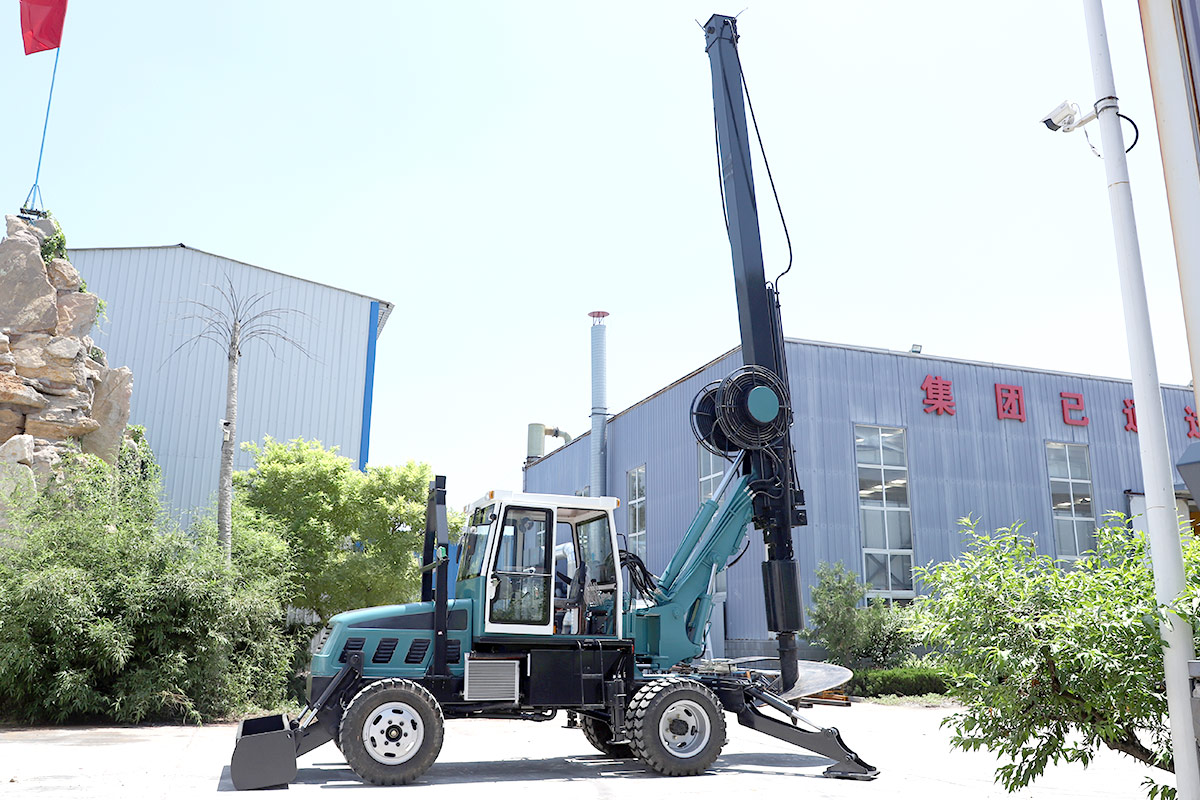

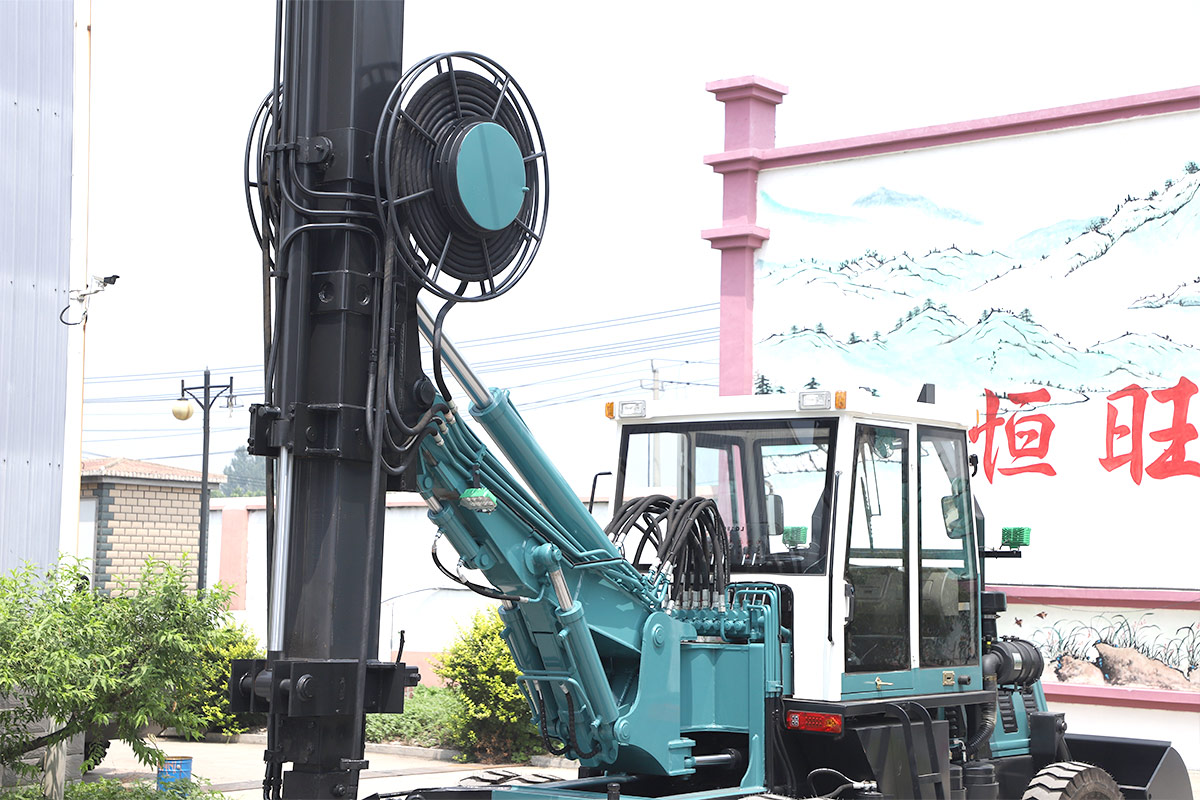

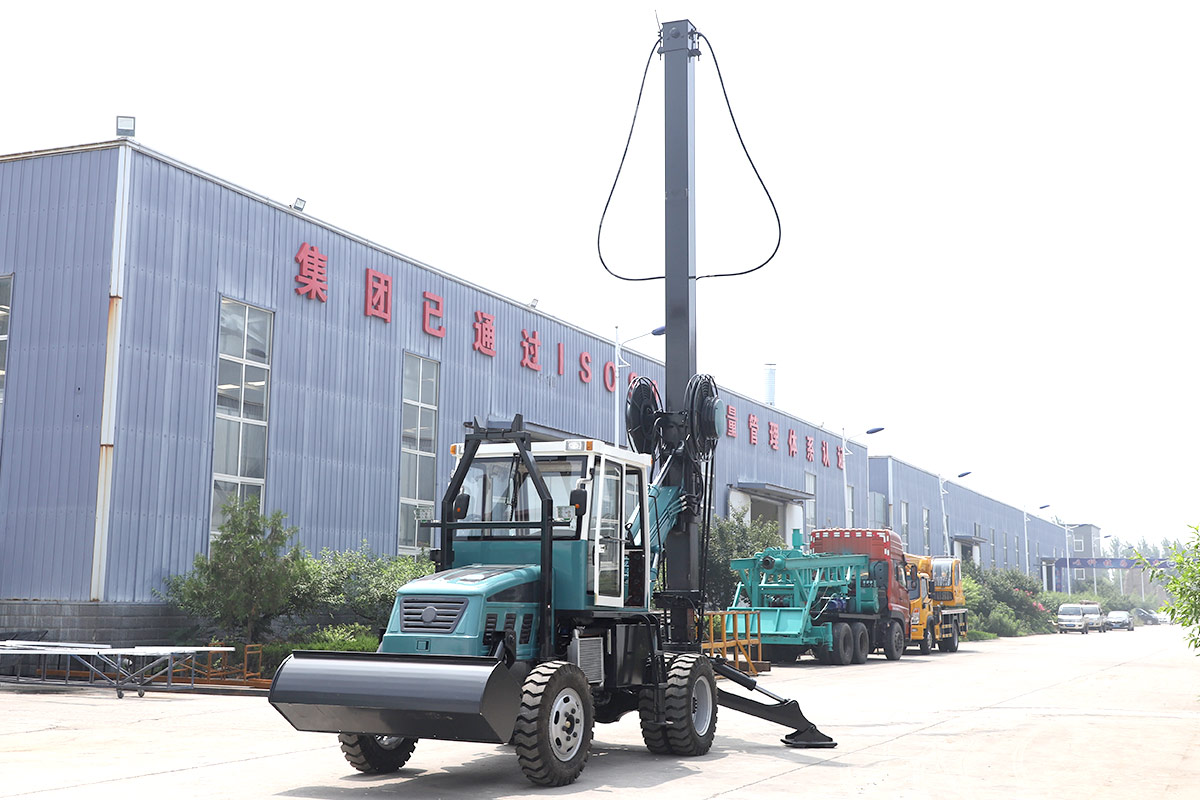

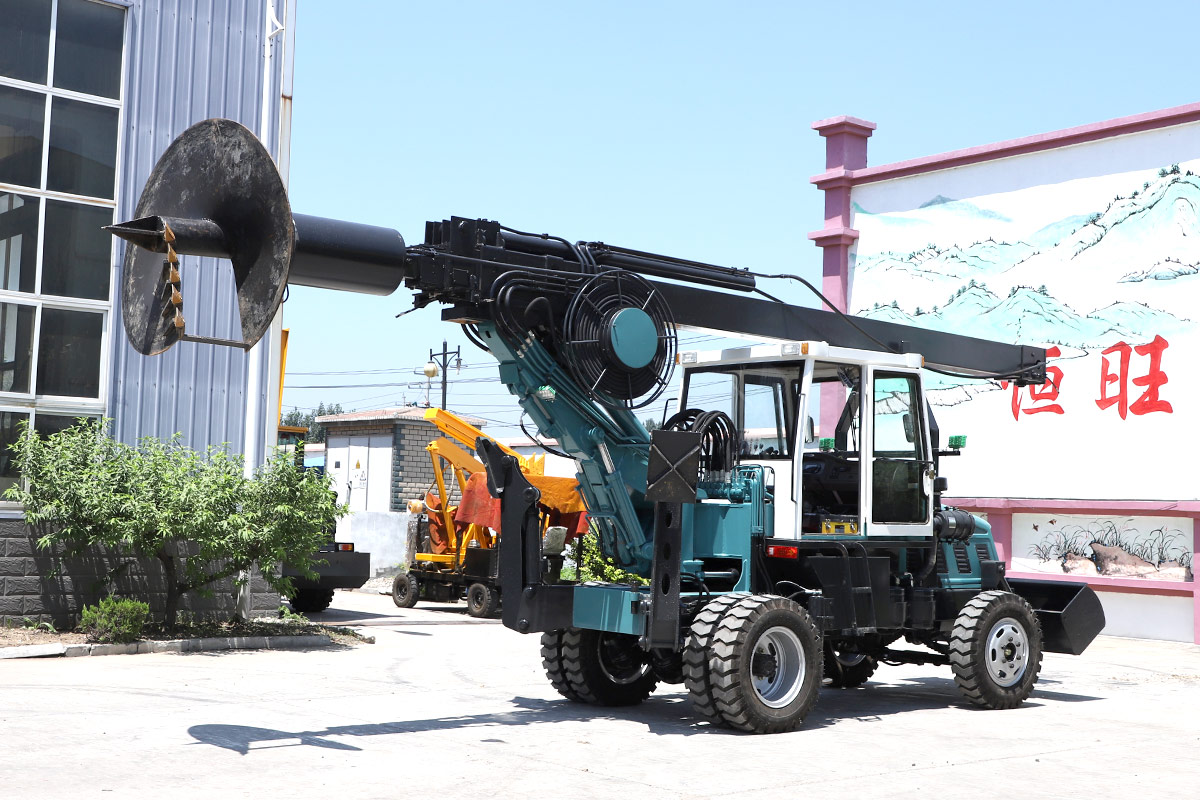

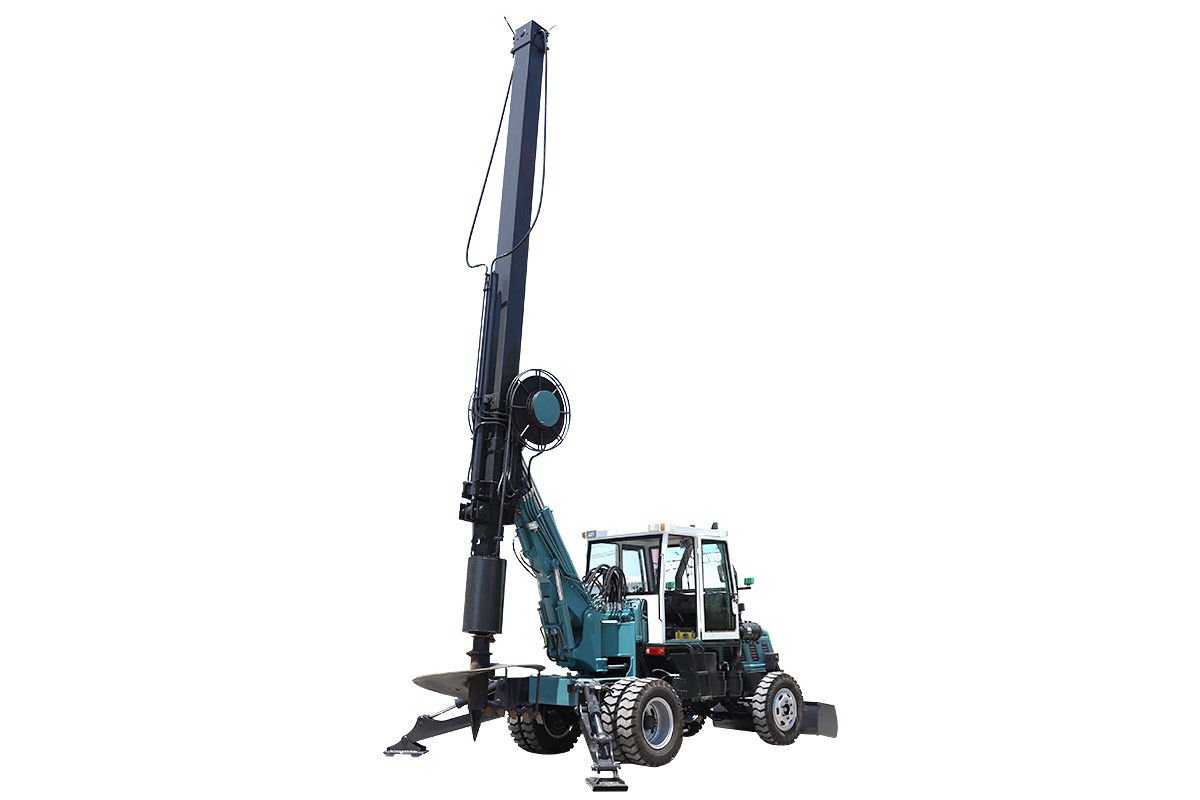

Wheel Rotary Pile Driver

Rotary drilling rig is a kind of construction machine suitable for hole formation in building foundation engineering.

Mainly suitable for sandy soil, cohesive soil, silty soil and other soil construction, widely used in cast-in-situ piles, continuous walls, foundation reinforcement and other ground foundation construction.

The output torque is 120 ~ 400kN • m, the maximum hole diameter can reach 1.5 ~ 4m, and the maximum hole depth is 60 ~ 90m, which can meet the requirements of various large foundation constructions.


ModelHWDR150D
Dimensions8700mm*2300mm*3200mm
Wheelbase3250mm
Wheel-track1600mm/Front, 1260mm/Rear
Vehicle weight9000 (KG)
Engine power120-150HP
Piling depth1-15 (m)
Drilling diameter400-2200 (mm)
Swing angle180°
Walking speed50 (km/h)
Working pressure of hydraulic system20-30 (Mpa)
Hydraulic system displacement80ml/r


Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
