HW200 Excavator Mounted DTH Drilling Rig

HW200 Excavator Mounted DTH Drilling Rig

Excavator modification
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Power: 7KW
Drill Depth: 3m
Drill Diameter: 27-55mm

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW200 Excavator Mounted DTH Drilling Rig" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

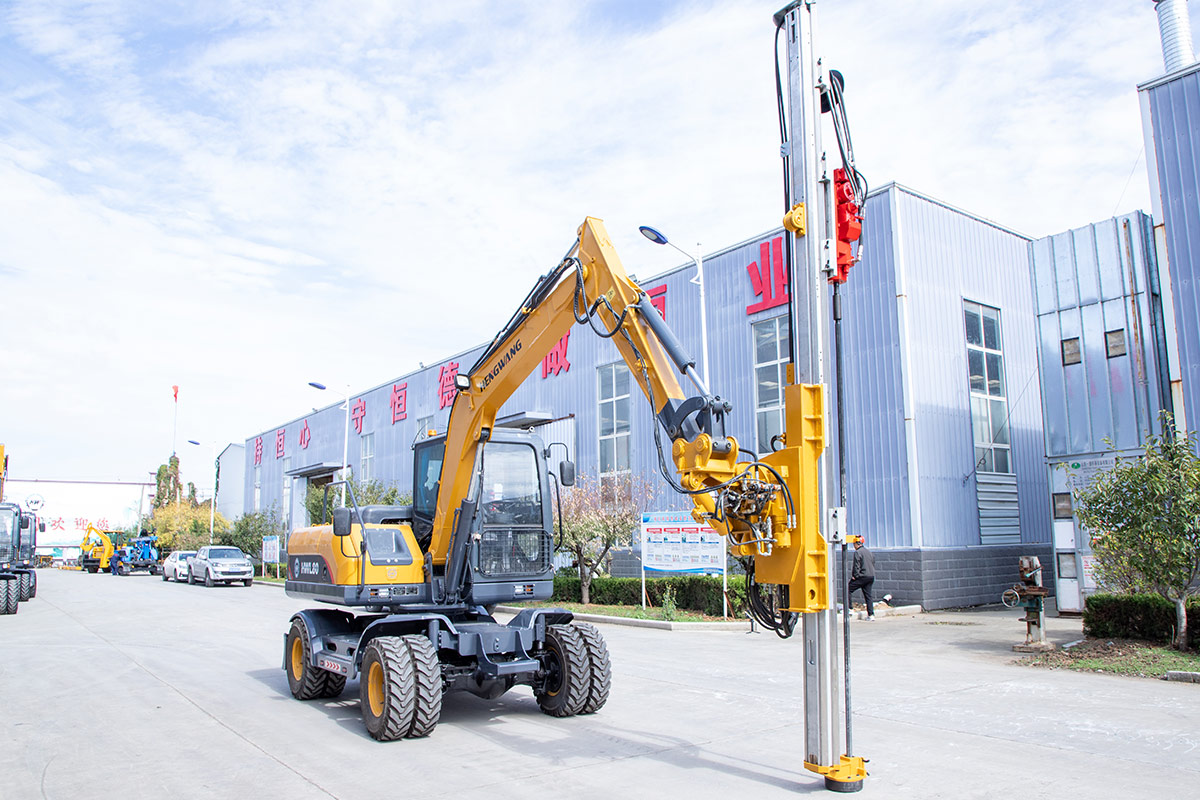

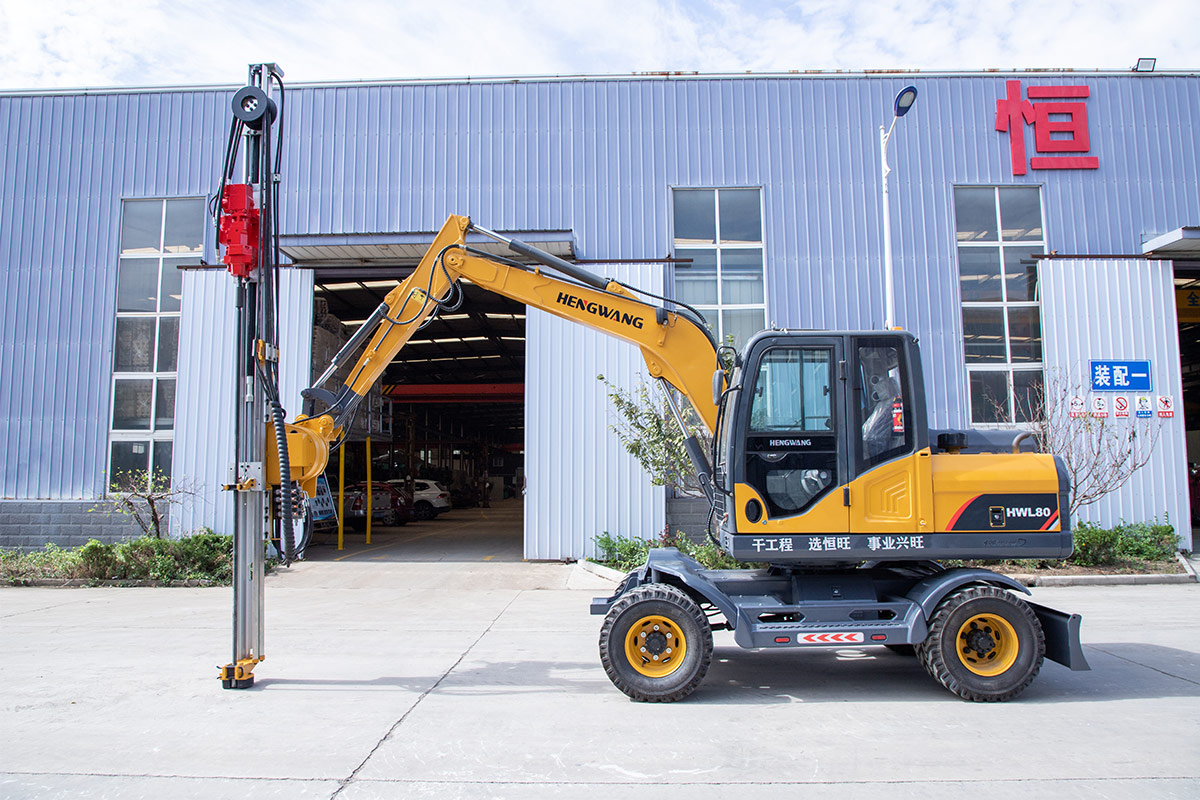

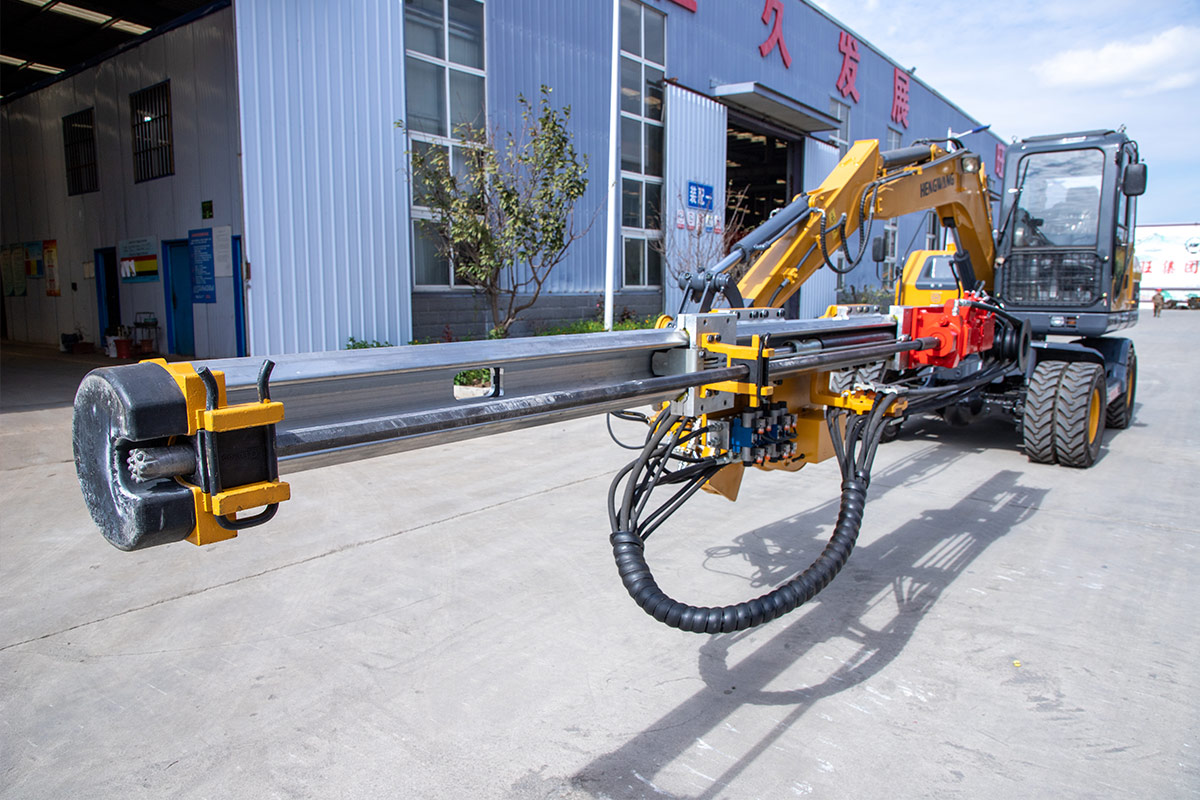

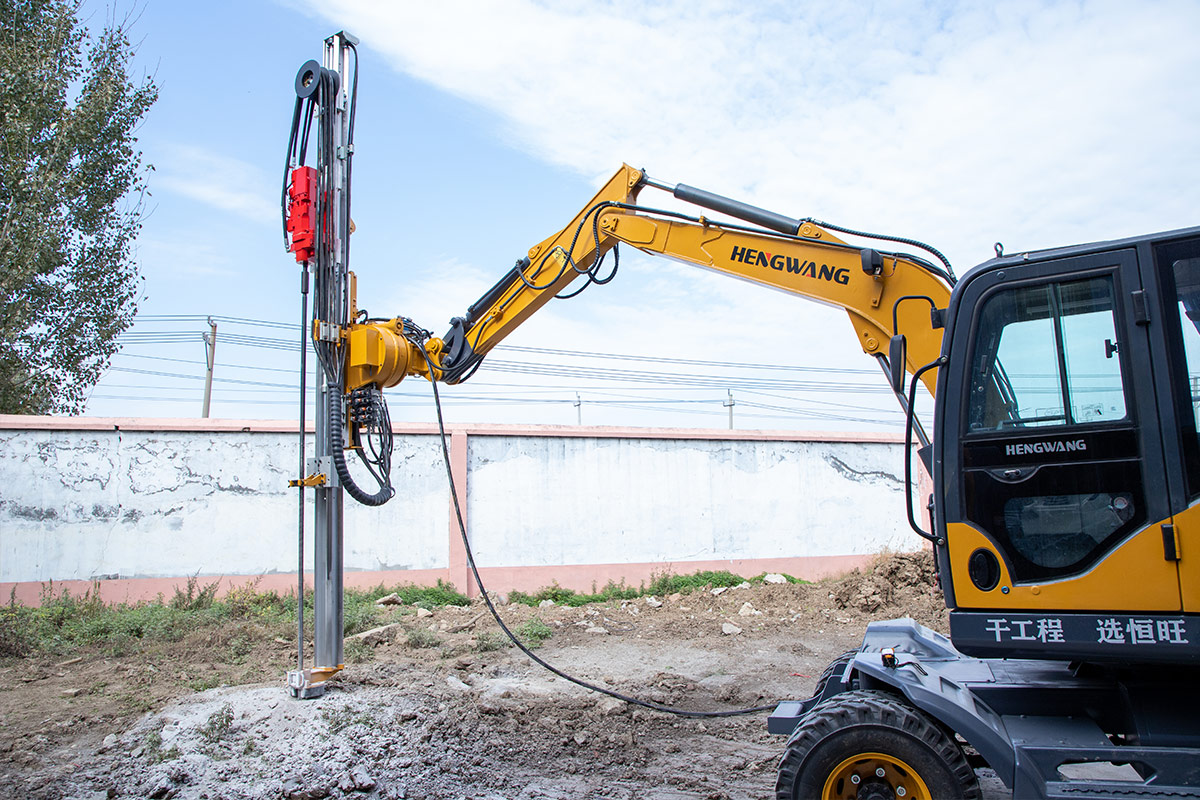

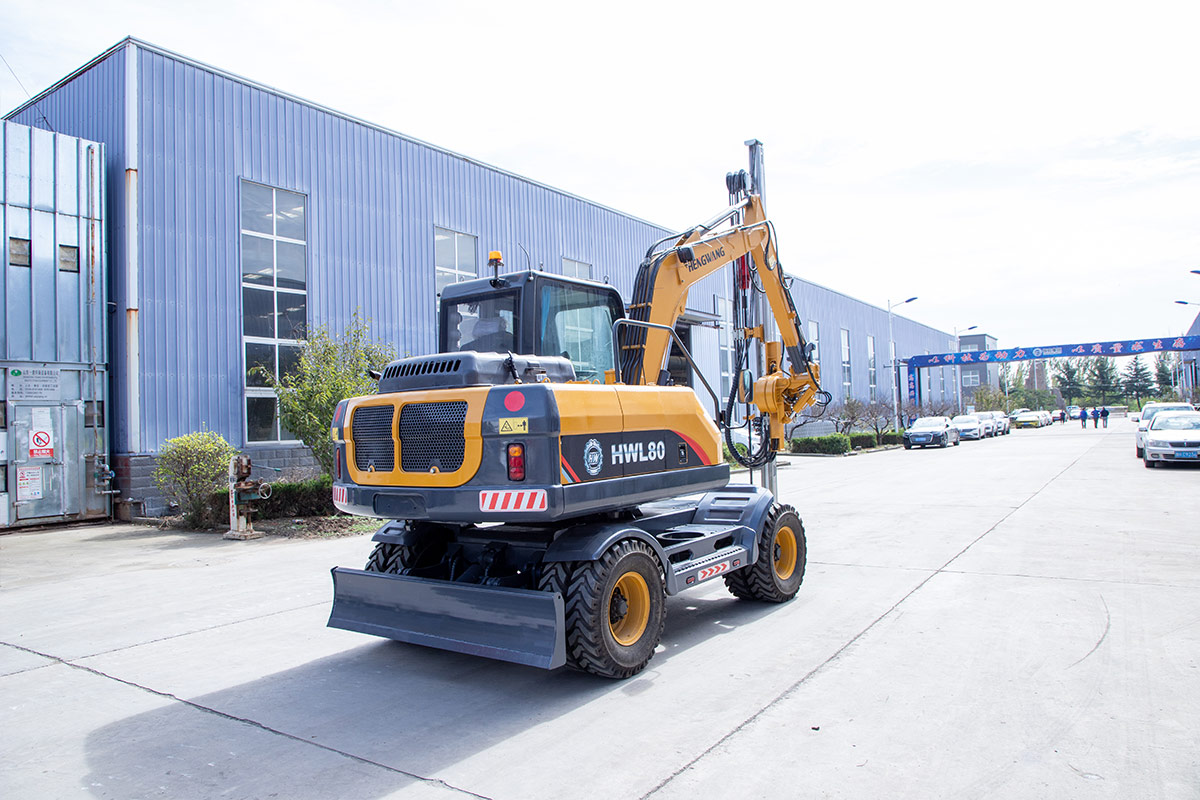

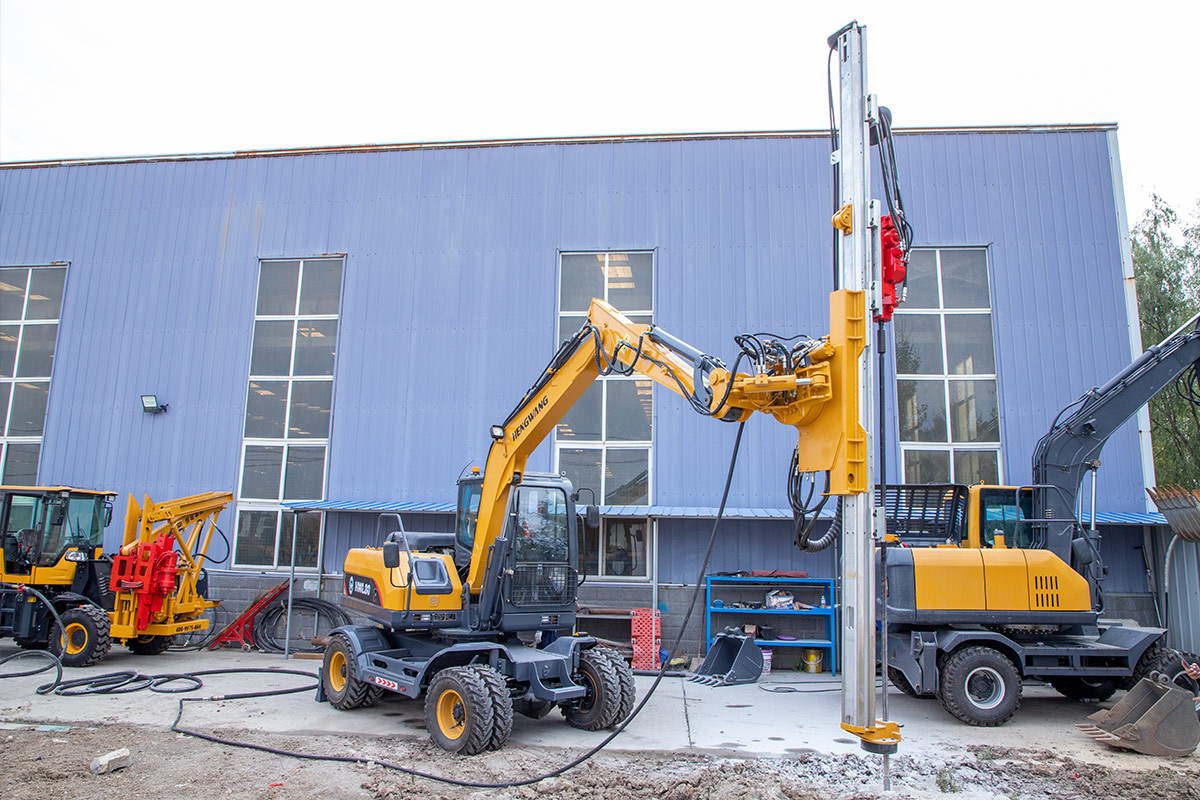

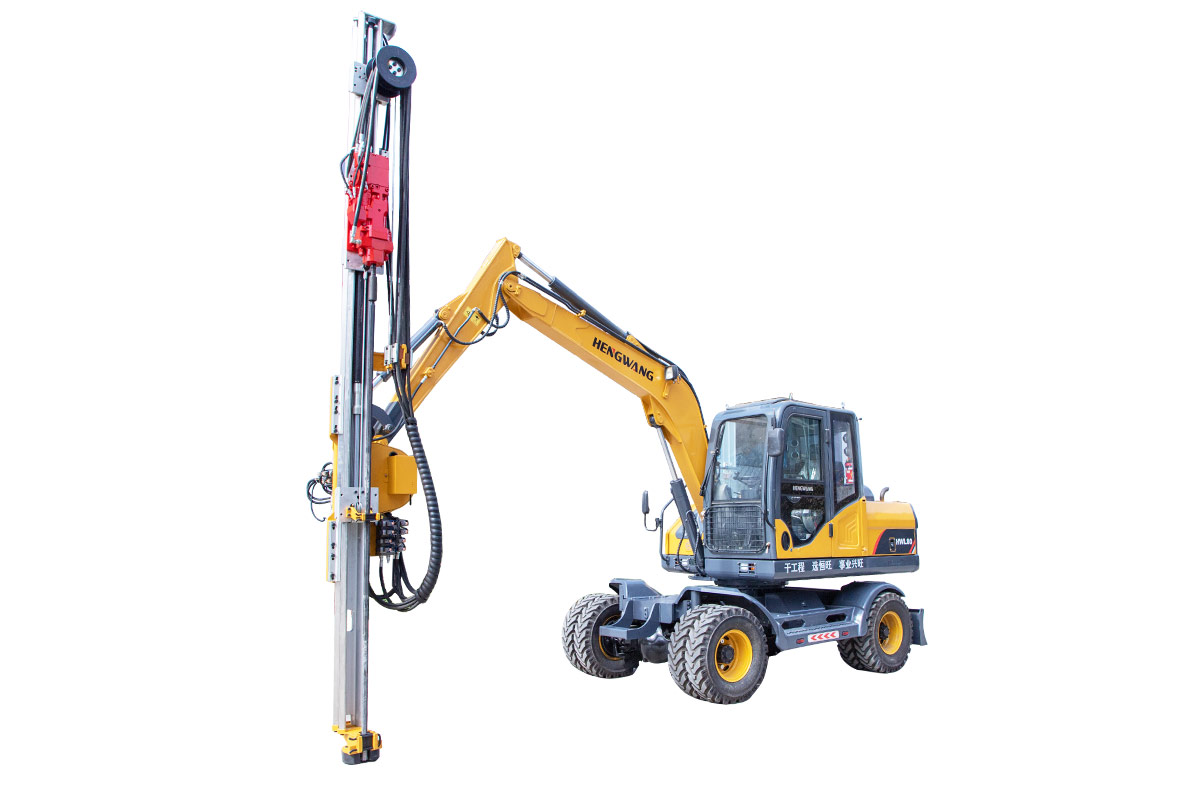

HW200 Excavator Mounted DTH Drilling Rig

1. The hydraulic system of the excavator is used for the drilling and slag removal of the Hengwang excavation and modification rock drill. The air compressor for slag removal is installed on the excavator, which is convenient to move.

2. The hydraulic rock drill is used to fully improve the drilling efficiency. The drilling speed can reach 1 minute and 1 meter on the rock with a hardness of 8.9 degrees, which is 8-10 times that of pneumatic equipment.

3. Digging and changing the rock drill does not affect the function of the excavator itself, and because the climbing performance of the excavator and the adjustment of the drilling angle are better than the rock drill, it is more flexible.

4. The operating panel is placed in the cab of the excavator, and the driver can operate after simple training.

ModelHW-200
Dimension5150*1200*860mm
Weight1100Kg
VoltageDC24V
Control TypeRemote Control 10m
Hydraulic System Flow80-100L/min
Hydraulic System Pressure18Mpa
Air Compressor Pressure0.8-1.2Mpa
Air Compressor Flow15-30m³
Impact working pressure12-18Mpa
Impact frequency27-47Hz
Impact energy72-190J
Impact power8Kw
Rotating working pressure15Mpa
Rotation speed180-220rpm
Rotation torque300N.M
Rotation power7Kw
Drill diameter27-55mm
Drill depth3m
Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
