HWJP-20 Concrete Pump

HWJP-20 Concrete Pump

Concrete Pump
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Power: 30Kw
Aggregate size: 15mm
Output: 8m³/h

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HWJP-20 Concrete Pump" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

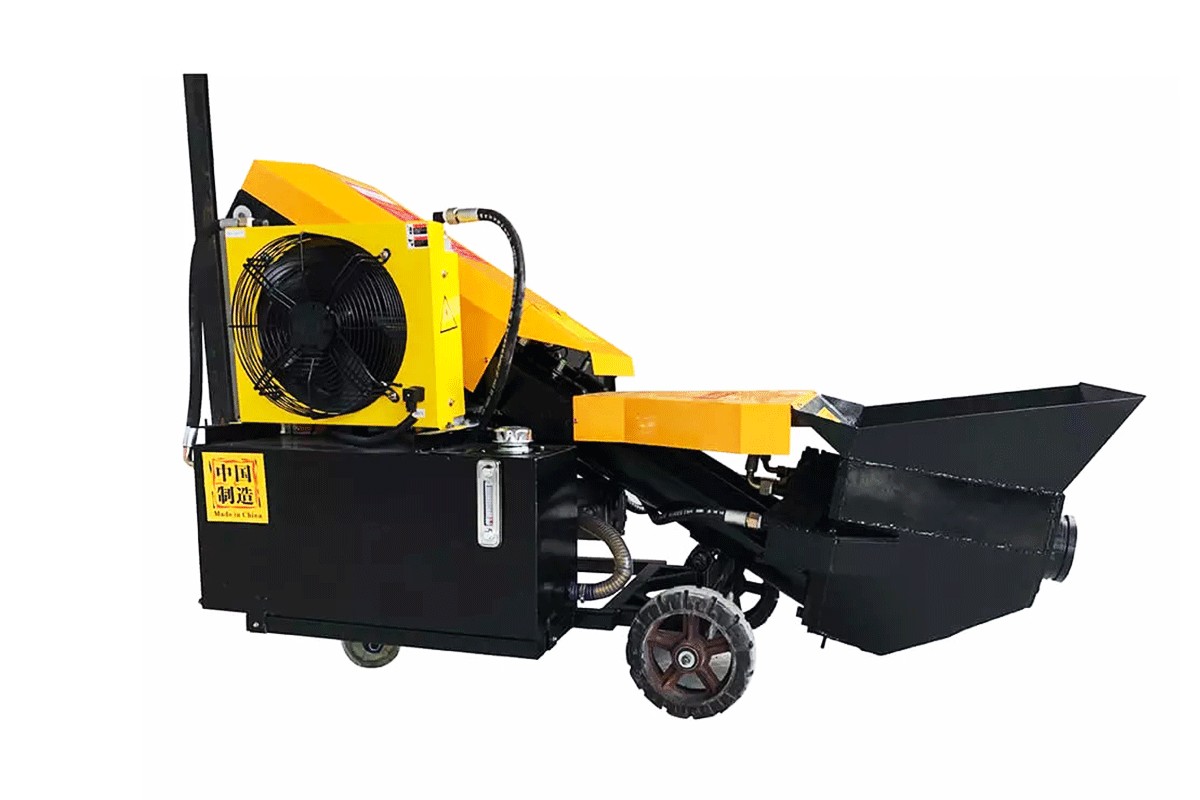

HWJP-20 Concrete Pump

1. High working efficiency: hydraulic pumping is adopted, with high system reliability and stable throughput.

2. Continuously adjustable injection amount: variable plunger pump is adopted for the main oil pump, and the injection speed can be freely adjusted.

3. The addition amount of accelerating agent can be continuously adjusted: it can be adjusted according to the amount of gunite.

4. Long service life of wearing parts: the service life of wearing parts of the host shall not be less than 4000M3.

5. equipped with automatic lubrication system: for the main sealing parts with automatic lubrication, grease filling amount, filling time automatic control, greatly extend the life of vulnerable parts.

6. Humanized product design: more convenient operation.


Model

HWJP-20

Power

30kw

Voltage

380V

Vertical delivery distance

50m

Horizontal delivery distance

80m

Output

8m3/h

Max.Aggregate size

15mm

Outlet diameter

100mm

Cylinder stroke

1000mm

Pipe diameter

100mm

Dimension

3800*1000*1550mm

Weight

900kg

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
