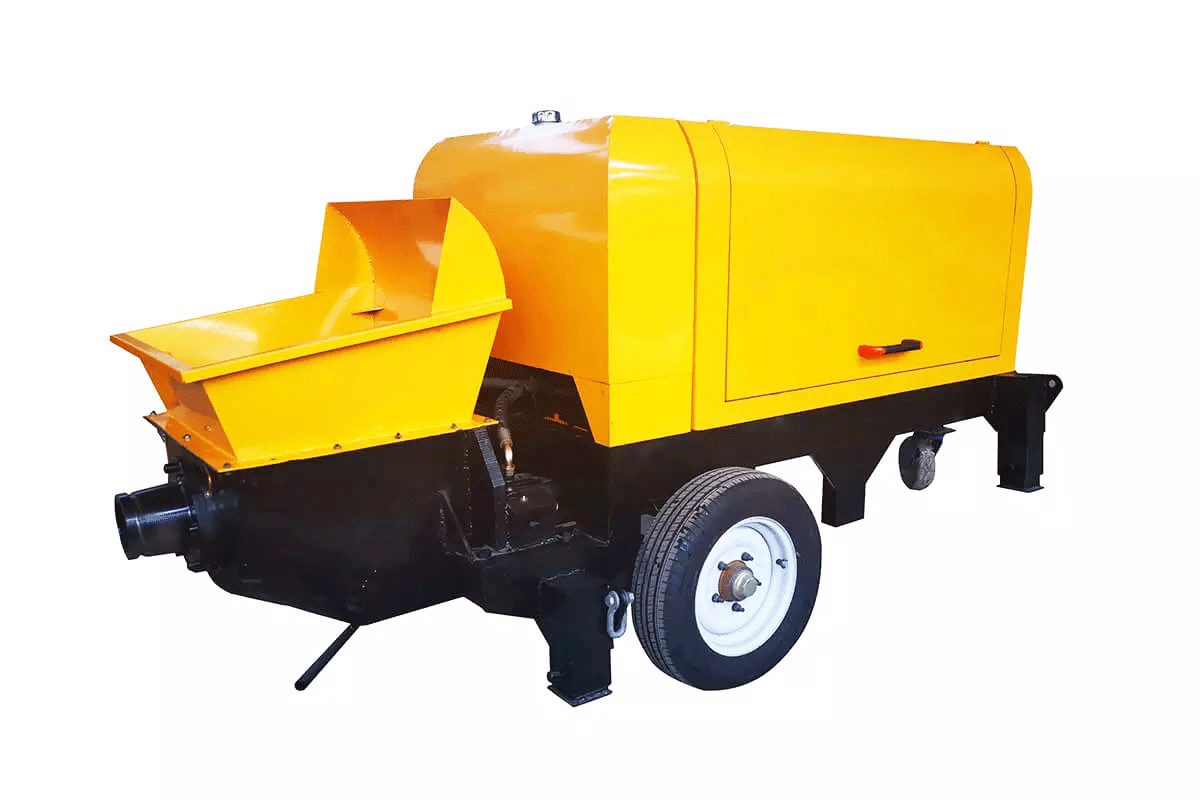

HW20-37 Concrete Pump

HW20-37 Concrete Pump

Concrete Pump
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Power: 37Kw
Aggregate size: 20mm
Output: 30m3/h

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW20-37 Concrete Pump" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

HW20-37 Concrete Pump

1. Hydraulic system: the application of new electronic control commutation technology makes the pumping work more reliable and the failure rate of hydraulic system lower; Equipped with special valve of hydraulic control system, large through-flow, low energy consumption and small impact, extending service life.

2. Power system: Concrete pump adopts Siomens brand motor, a well-known brand at home and abroad. And diesel concrete pump adopts tianjin levo and yuchai brands with low energy consumption and high efficiency.

3. heat dissipation system: the use of air cooling or water cooling double cooling system,can guarantee the stability of equipment operation in high temperature,cold and other harsh climate conditions.


Model

HW20-37

Power

37kw

Voltage

380V

Vertical delivery distance

120m

Horizontal delivery distance

250m

Output

30m3/h

Max.Aggregate size

20mm

Outlet diameter

140mm

Cylinder stroke

1100mm

Pipe diameter

100mm

Dimension

3500*1700*1800mm

Weight

1500kg


Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
