HW15-15 Concrete Pump

HW15-15 Concrete Pump

Concrete Pump
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Power: 15Kw
Aggregate Size: 15mm
Output: 8m³/h

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW15-15 Concrete Pump" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

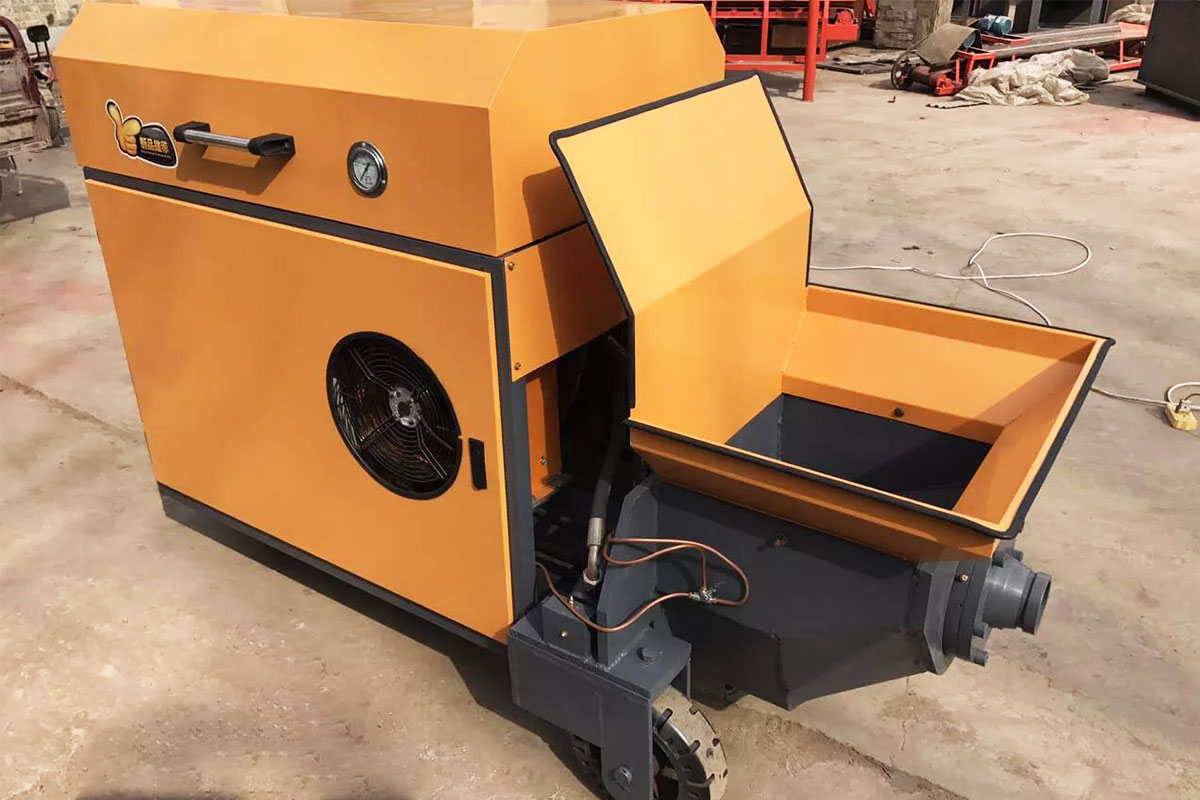

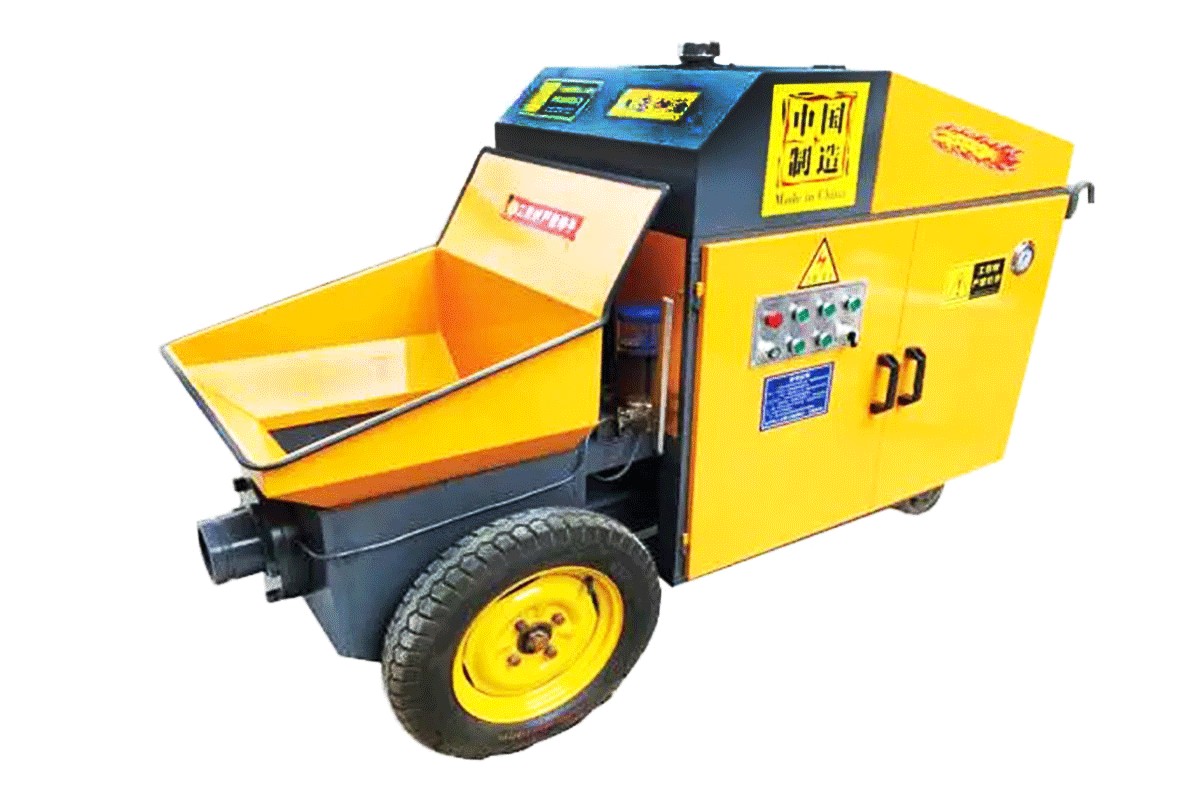

HW15-15 Concrete Pump

HW15-15 concrete pump is used in the transportation of mortar and concrete in high-rise buildings.Various types of secondary structural column grouting,reservoirs, hydropower stations, ports and wharfs Pressure grouting, foundation treatment soft foundation,reinforcement grouting, tunnel, etc.Backfill grouting bolt support in subway and mine construction.

HW15-15 concrete pump uses hydraulic feeding, double cylinder reciprocating operation of vibrating screen filter can completely transport construction various kinds of mortar, concrete .etc used in construction.

HW15-15 concrete pump has big displacement and high pressure, labor-saving,material-saving, flexible movement. It is an ideal equipment to delivery mortar.

Model

HW15-15

Power

15kw

Voltage

380V

Vertical delivery distance

30m

Horizontal delivery distance

50m

Output

8m3/h

Max.Aggregate size

15mm

Outlet diameter

80mm

Cylinder stroke

350mm

Pipe diameter

80mm

Dimension

1750*700*1200mm

Weight

650kg


Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
