HW-JBT30-06 Concrete Mixer Pump

HW-JBT30-06 Concrete Mixer Pump

Concrete Pump
Direct from Factory One-Year Warranty CE · EPA Certified

Rated Power: 30Kw
Max Aggregate Size: 125mm
Output: 15m³/h

Direct WhatsAppReply in under 1 hour
E-mailevan@hengwang.cn
QuoteWithin 24–48 hours
Strength and Certifications

Certified Quality, Factory-Backed

In-house production with a dedicated bulldozer line and international certifications that protect your investment.

Hengwang production line and certifications

Every "HW-JBT30-06 Concrete Mixer Pump" is built in our 300,000 ㎡ plant, with rigorous quality control at every stage: cutting, welding, assembly and in-line testing. In addition, the high-performance engine and high-efficiency hydraulic system comply with the industry's strictest emission and safety standards, ensuring reliable performance, low fuel consumption and safe operation even in the harshest conditions.

CE Certification
EAC Certification
ISO Certification
EPA Euro Five
Invention Patent
Design Patent
Product Description

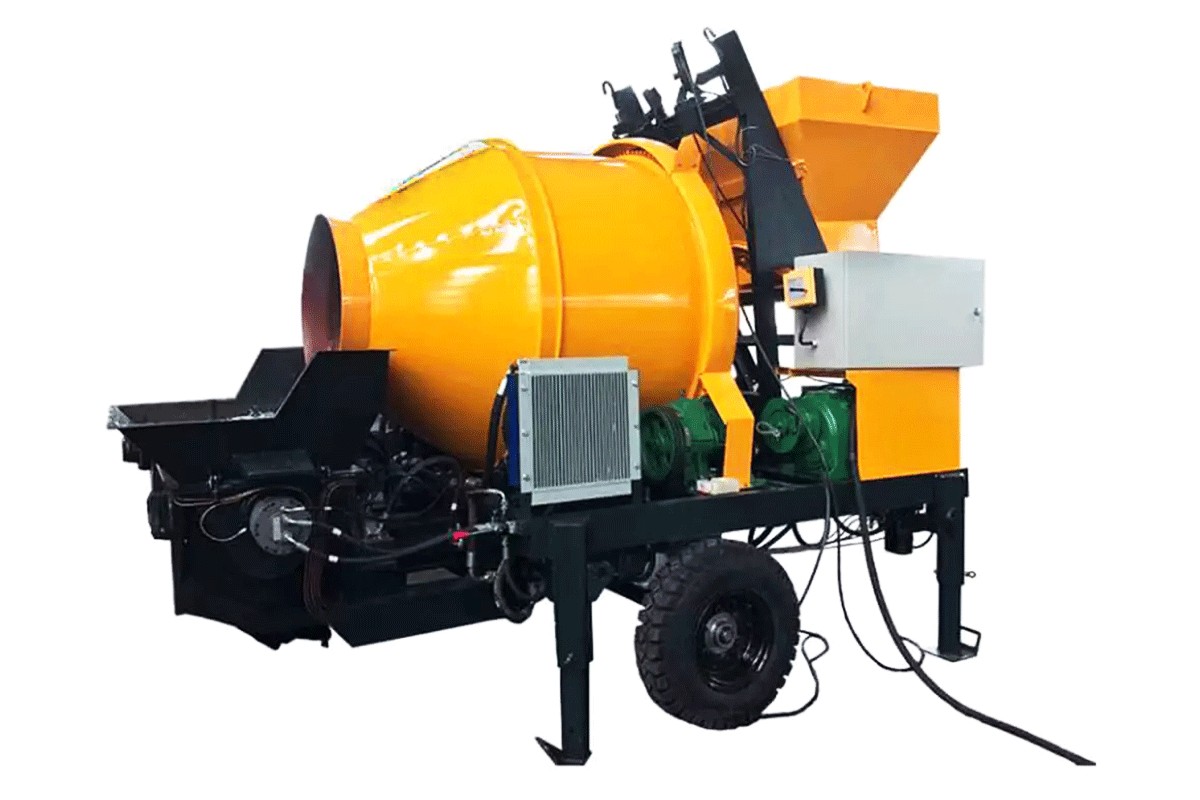

HW-JBT30-06 Concrete Mixer Pump

The concrete mixer pump, is a traditional concrete mixers and concrete pumps together, to achieve full concrete construction process automation material, mixing, pumping in one of the small high pressure concrete pump, suitable for small and medium sized, ground transportation, such as playing a large village aggregate concrete, especially for a group of 12 layer floor, small bridges, wild place scattered site mixing of concrete construction projects.

The product can be achieved without human or trailer transitions, greatly improved work efficiency.


ItemUniteHW-JBT30-06

Drum capacity

L

450

Hopper

capacity

L

450

Filling height

mm

1000

Output pressure

Mpa

6

Thero output

M3/H

30

The delivery cylinder

mm

Φ160*1000

Mixer filling model

Climbing

Max aggregate diameter

mm

Φ80

Pump distanceVertical

M

120

Horizontal

M

300

Engine model

Electric power

Main power (kw)

kw

Pump motor

30

Concrete slump

cm

12-23

running piping

mm

Φ80,Φ100,Φ125

Dimension (mm)

mm

5000*2280*2900

Weight

KG

4000

Specifications may be adjusted according to configuration. Please consult our team for the OEM/ODM customized version.
