Drilling depth: 400m
Drilling diameter: 130-325mm
Engine Power: 92/110Kw
Drilling diameter: 130-325mm
Engine Power: 92/110Kw
Crazy Engineering Days Sale, Submit Form to Get Order Discount and Off Coupon
| model | HQZ-400L | |
| tower | 3/6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-325 | mm |
| Drilling depth | 400 | m |
| One-time advancement length | 3.6/6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 92/110 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-35 | m³/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 25 | T |
| Swing speed | 45-115 | rpm |
| Rotating torque | 7000-9000 | N.m |
| Dimensions | 5400*2200*2870 | mm |
| weight | 7/9 | T |
Due to the continuous updates and advancements in technology, the technical parameters and configurations of products are subject to change at the time of actual delivery. We strive to provide the most up-to-date and accurate information, but it is always recommended to confirm the technical specifications and configurations at the time of placing your order.

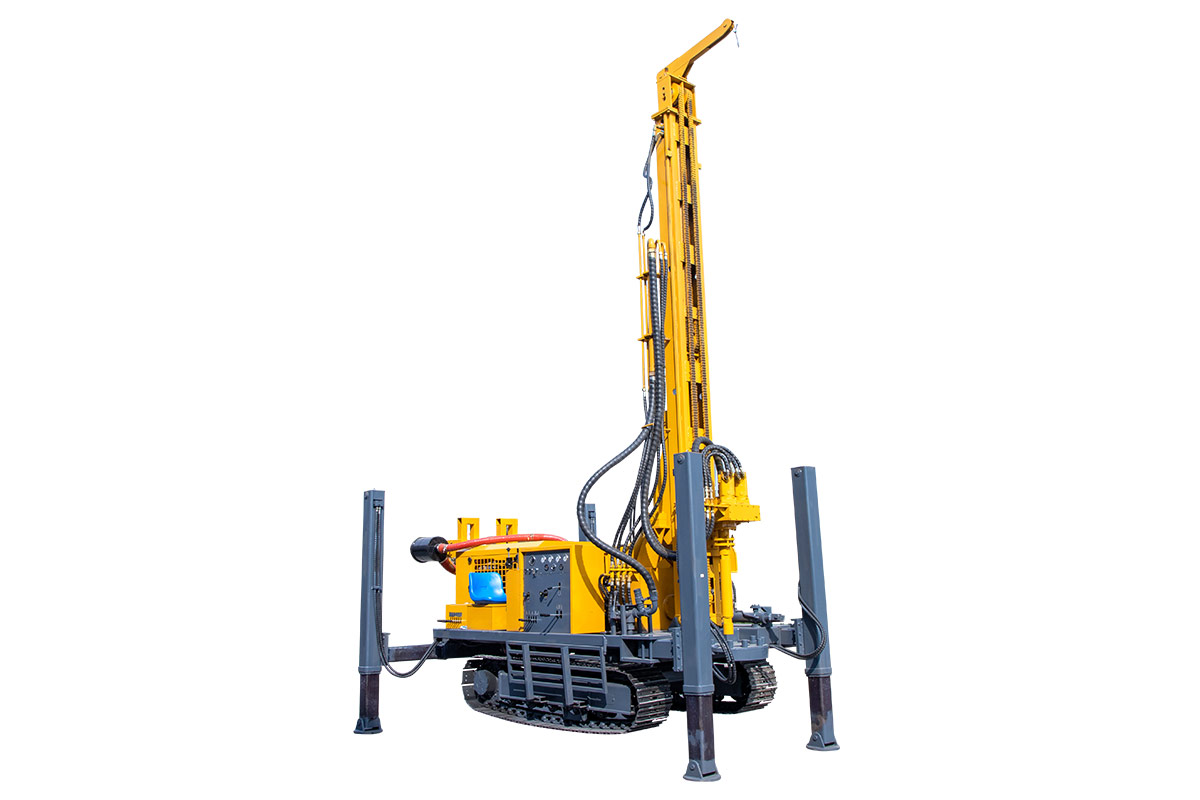

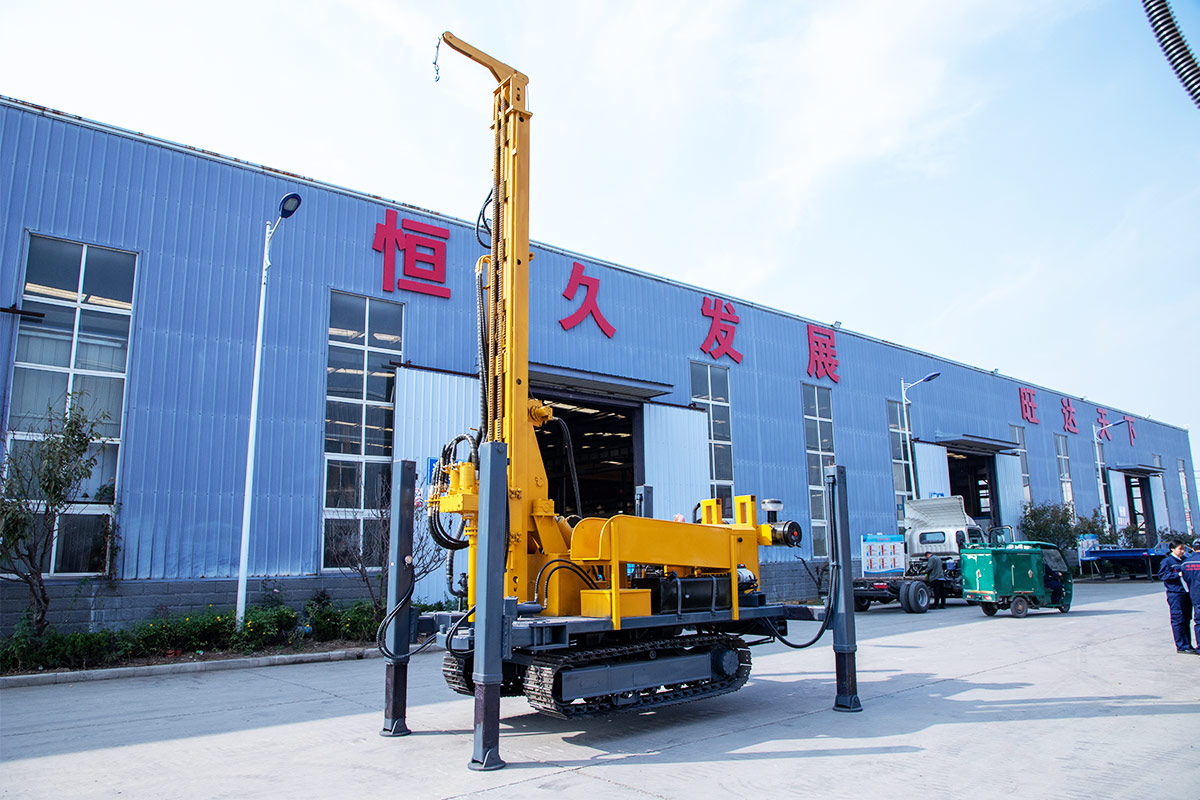

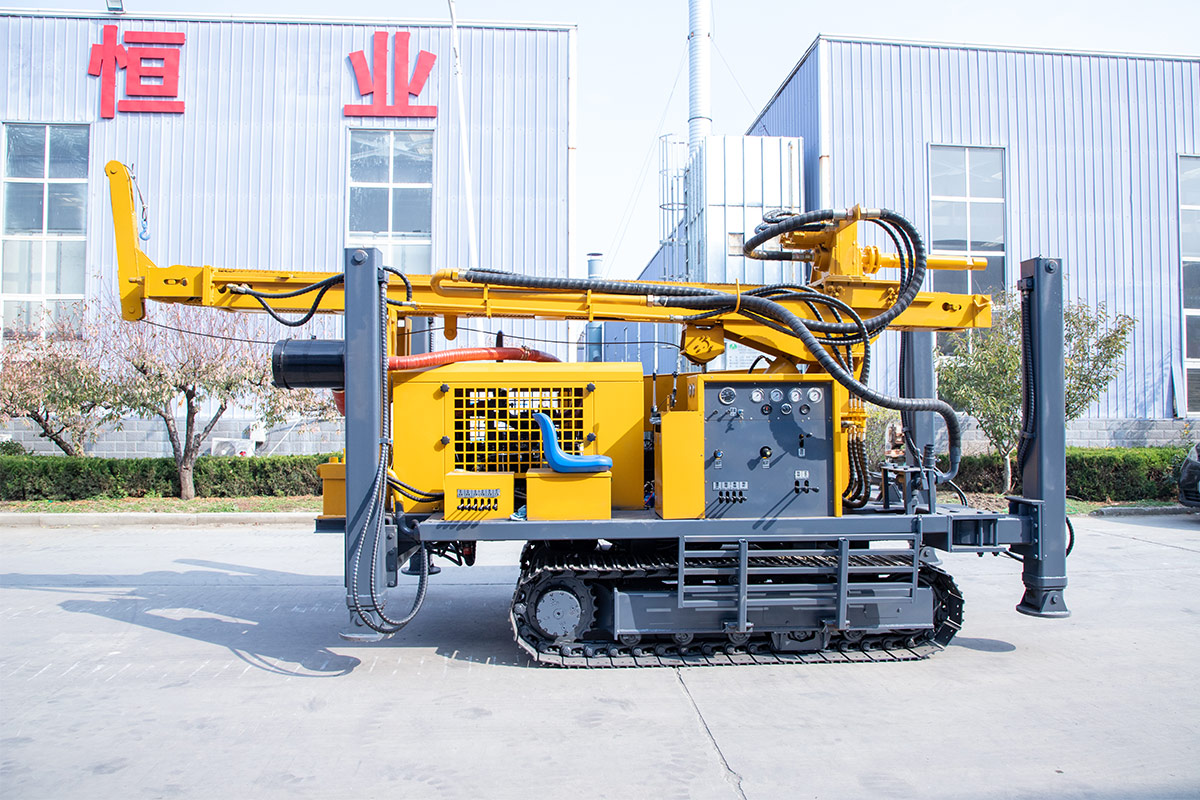

The HQZ pneumatic water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment designed for various drilling projects, including industrial, civil drilling, and geothermal drilling.
Main features:
1. The pneumatic drilling rig works in conjunction with an air compressor, resulting in high working efficiency.
2. Enhanced stability through increased counterweight, ensuring strong work stability.
3. Perfect cooperation between the engine and hydraulic system, leading to reduced fuel consumption and improved fuel efficiency.
Shandong Hengwang Group Co., Ltd., as one of the top drilling machinery and piling machinery suppliers in China, has 20 years of experience in the production of drilling rigs and piling machines.
